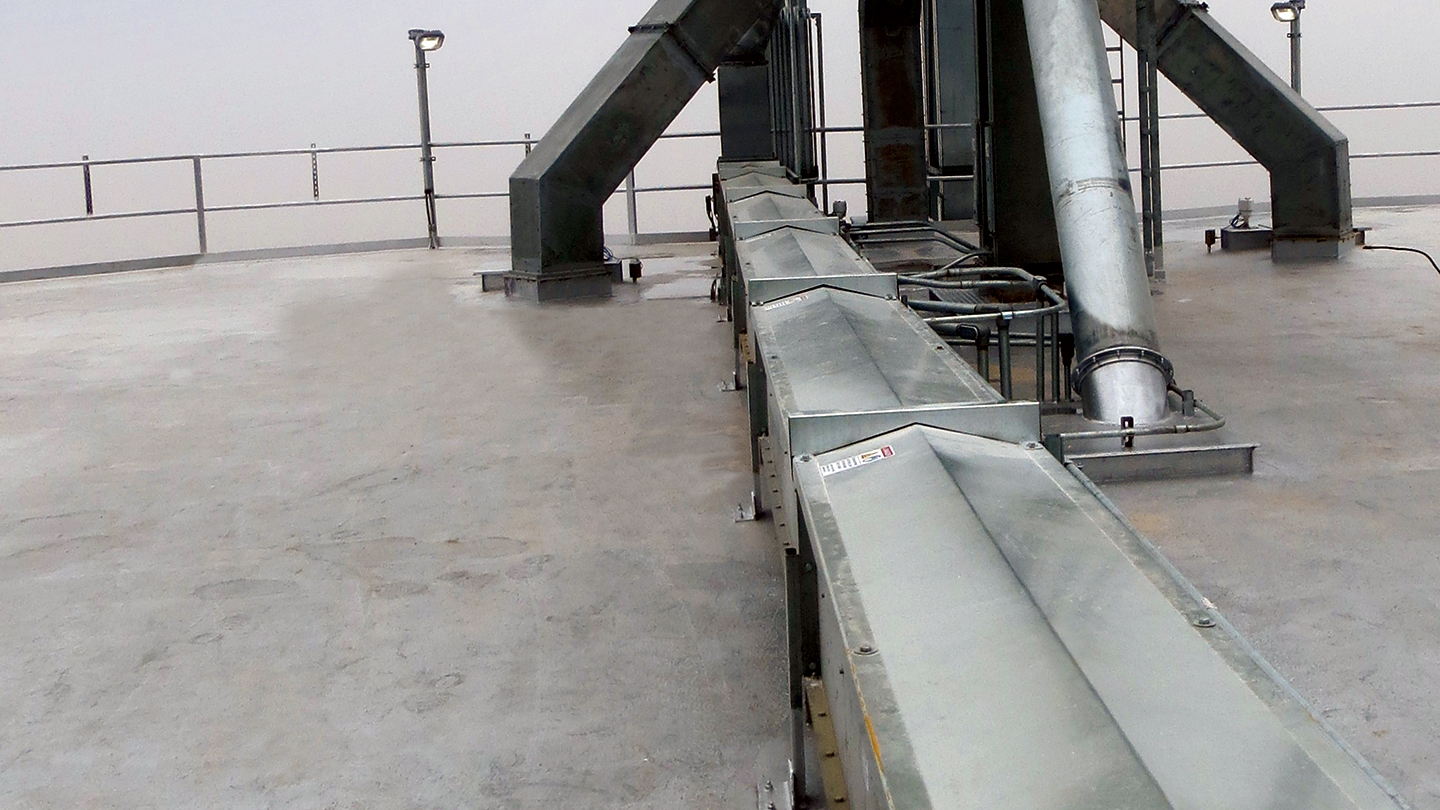

GSI Select IS Kleen-Drag Conveyors

Available exclusively as the Select IS™ model.
Perfect solution in applications where cross-contamination is a primary concern, such as conveying feed products, or other sensitive commodities.
Combine a unique trapezoidal trough shape to ensure positive clean-out with the same heavy-duty and maintenance-friendly features as the rest of the Select™ line of chain conveyors.

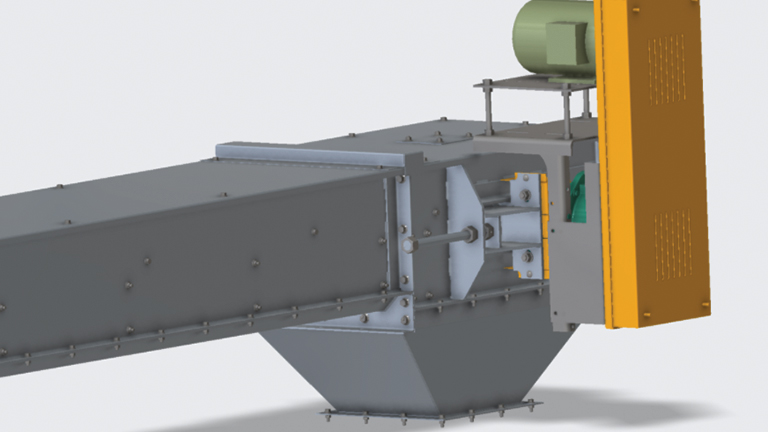

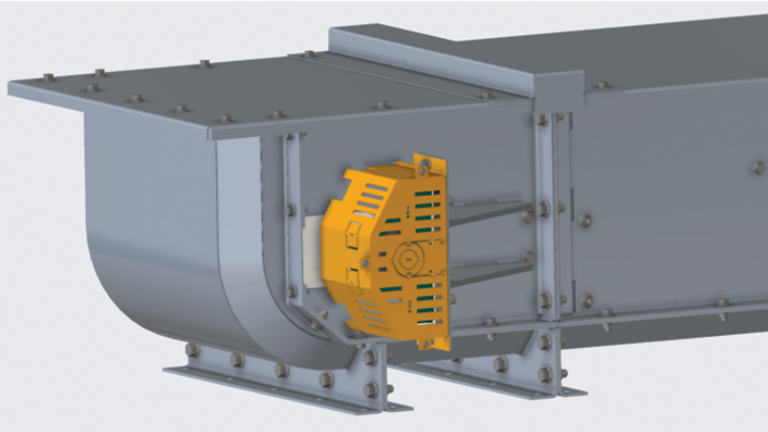

Head Section

Dodge® Imperial pillow block bearings standard on all sizes, supplied with full-coverage safety guarding
Corrosion-resistant ACME threaded chain take-up system located on head section as standard
½” thick slotted edge machined UHMW shaft seals on all sizes keep dust in and weather out
7 gage side panels (4.55mm) standard on all sizes
Flame-cut, hardened steel sprockets. Split hubs standard on all Kleen-Drag conveyors
Head shafts are turned ground and polished
Companion mating flanges available for all sizes

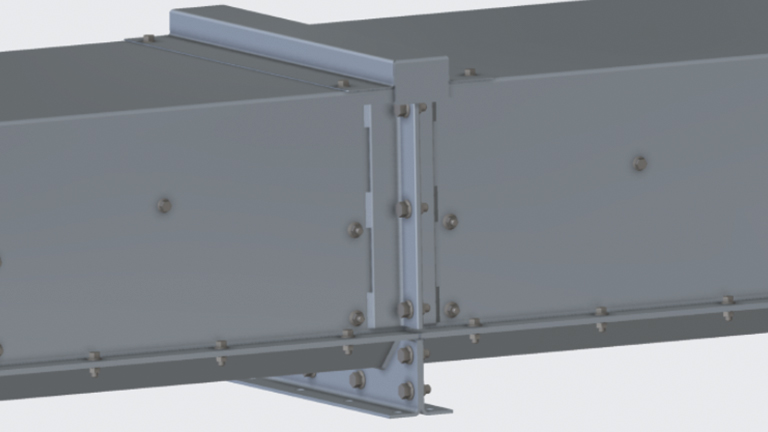

Standard 10 gauge (3.41mm) intermediate trough sides
Abrasion resistant steel wear liners with recessed fasteners for removal or replacement
Fixture assembled for squareness to ensure accurate alignment and ease of installation
Welded 2” structural steel angle flanges to provide rigidity and accurate alignment
Side-mounted AR steel rail return (level sections) and full-width AR steel pan return (inclined sections) standard
3 standard cover styles to meet any need and ensure weather-tight operation
Bolted removable bottom construction

Steel Bushed Roller (SBR) and Welded Mill (WM) chains available to suit any application
Multiple chain specs available in most box sizes to better suit conveyors of all lengths

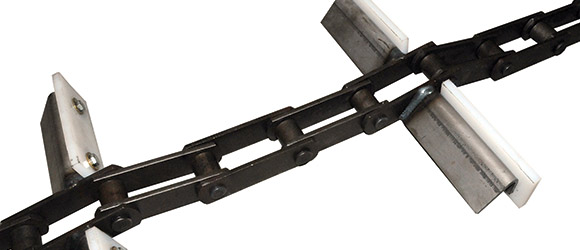

UHMW flight pads prevent steel-to-steel contact with Nylon optional for extremely abrasive materials
Steel backer plates included on larger sizes and heavier chains to improve durability

Size (WxH)	1*	100*	110*	120*	130*	140*	150*	160*	170*	180*
9"x12"	23	2,296	2,525	2,755	2,984	3,214	3,443	3,673	3,903	4,132
12"x12"	31	3,105	3,416	3,727	4,037	4,348	4,658	4,969	5,279	5,590
16"x12"	42	4,185	4,604	5,022	5,441	5,859	6,278	6,696	7,115	7,533
16"x14"	47	4,654	5,119	5,585	6,050	6,516	6,981	7,446	7,912	8,377
21"x14"	62	6,150	6,765	7,380	7,995	8,610	9,225	9,840	10,455	11,070
14"x20"	65	6,487	7,136	7,785	8,433	9,082	9,731	10,379	11,028	11,677
16"x20"	74	7,433	8,176	8,920	9,663	10,406	11,149	11,893	12,636	13,379
20"x20"	93	9,325	10,257	11,190	12,122	13,055	13,987	14,920	15,852	16,784
26"x20"	122	12,162	13,379	14,595	15,811	17,027	18,243	19,460	20,676	21,892
32"x20"	150	15,000	16,500	18,000	19,500	21,000	22,500	24,000	25,500	27,000

*Conveyor speed in feet per minute.

Capacities calculated with no side liners, thicker side liners will reduce capacity.

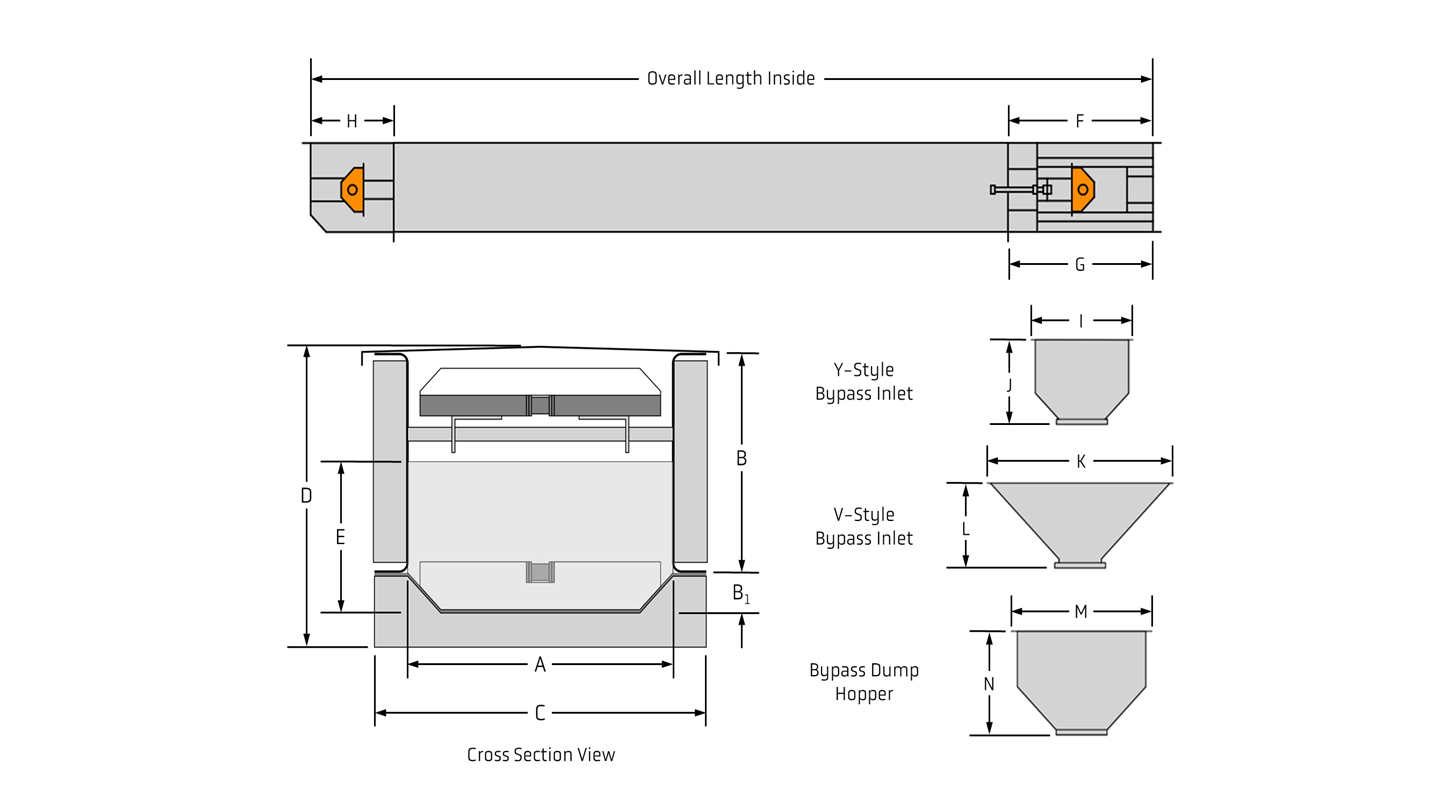

A x B	B₁	C	D	E	F	G	H	I	J	K	L	M	N
Box Size (Width x Height)	Vertical Offset	Overall Width	Overall Height*	Grain Depth	Head Length	Discharge Length	Tail Length	Y-Style Bypass Height*	Y-Style Bypass Width	Y-Style Bypass Height*	V-Style Bypass Width	Dump Hopper Height*	Dump Hopper Width
9"x12"	2	13	16.39	8.06	36	36	21	24.55	25	24.55	50	32.80	54.50
12"x12"	2	16	16.47	8.06	36	36	21	26.05	28	26.05	56	32.80	54.50
16"x12"	2	20	16.58	8.06	36	36	21	28.05	32	28.05	64	32.80	54.50
16"x14"	2	20	18.58	8.94	36	36	21	30.05	32	30.05	68	39.93	58.50
21"x14"	2	25	18.71	8.94	36	36	21	32.55	37	32.55	78	39.93	58.50
14"x20"	2	18	24.53	14.13	36	36	25	35.05	38	35.05	76	45.93	66.00
16"x20"	2	20	24.58	14.13	36	36	25	36.05	40	36.05	80	45.93	66.00
20"x20"	2	24	24.68	14.13	36	36	25	38.05	44	38.05	88	45.93	66.00
26"x20"	2	30	24.84	14.13	36	36	25	41.05	50	41.05	100	45.93	66.00
32"x20"	2	36	25.00	14.13	36	36	25	44.05	56	44.05	112	45.93	66.00

* Based on 3/16 bottom liner and lapped covers, heavier bottom liners and alternate cover styles will increase this dimension.
