and Round Tube Unload
Carry-In Bin Sweep
and Round Tube Unload
HIGHLIGHTS
- Standard (6″, 8″, 10″) or heavy-duty (8″, 10″, 12″) models available.
- Standard duty for bin diameters 15′-48′ (4.57-14.63 m).
- Heavy duty for bin diameters 24′-72′ (7.32-21.95 m).
- Easily move the entire unit from one bin to another.
- Torque tube and back shield adjust for close-floor clearance for maximum clean-out.
Built to Perform

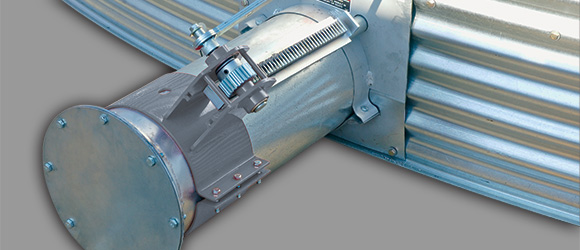

Rack-and-Pinion Controls
Rack-and-pinion controls are standard on 10″ (254 mm) and larger sweeps, and optional for 8″ (203.2 mm).
Dura-Edge® Flighting
All direct gear drive sweeps are equipped with heavy-duty 7-gauge Dura-Edge® Flighting that lasts 30% longer than regular flighting. An improved wear option is also available.
Center Well
All wells and tubes are galvanized or powder coat finished for extended life. (Standard center well shown.)
Powerhead Discharge Options

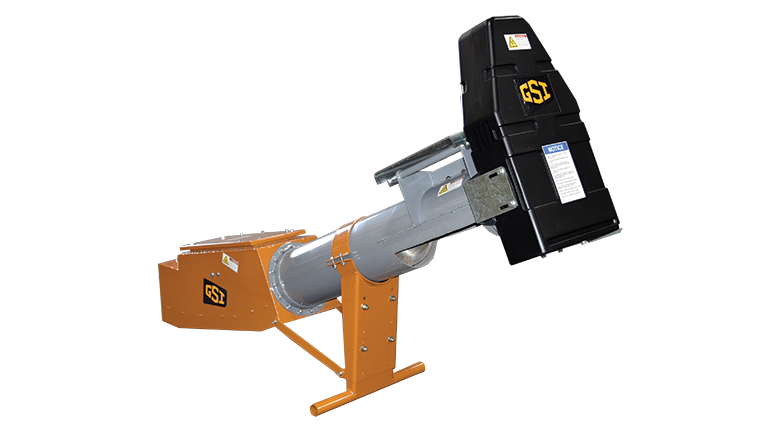

Vertical, Horizontal, or 25 degree Discharge
Choose a vertical, horizontal, or 25 degree discharge to make it easier to discharge directly into a truck, trailer or other equipment with a powerhead discharge at the angle that is right for your operation.
Options
Sweep Tractor
Standard on 12” (304.8 mm) heavy-duty sweeps, and optional on 10” (254 mm) models, the sweep tractor is a knockdown design to fit into a 18” (457.2 mm) square door, easily retrofitted, and can improve the performance and safety of your sweep.
