EVO™ Grain Bins

strength through Simplicity

HIGHLIGHTS

Optimized bolt pattern.
Interlaced laminated sheets.
Hardware with 4x corrosion protection and a water-tight seal.
2X sheets on 90’ diameters and above.
4″ corrugation.

Introducing a Better Bin

EVO 2X Grain Bins

We’ve attacked the weakest points to give you a stronger bin

We call it addition by subtraction. We eliminated half the vertical seams by doubling the length of each sheet. And we maximized strength at every connection with 50% fewer bolts. It all adds up to better protection. EVO 2X Bins are available in 90′ (27.43 m) diameter and above.

View Specs

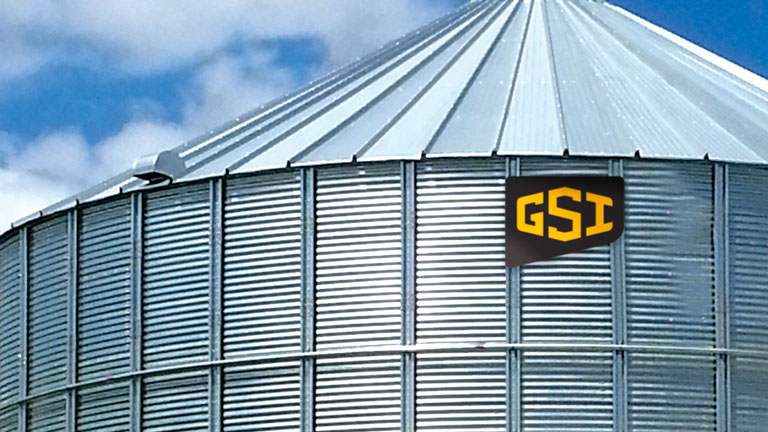

EVO 50 Grain Bins

Take Control with Better Protection

You can’t afford post-harvest loss. That’s why the EVO Grain Bin is engineered to keep the elements outside. So, you can earn more from what’s inside.

We’ve maximized strength at each connection and needed fewer bolts to do it. Water has less chance to get in. Our advanced sealing system keeps it out.

View Specs

Built to Perform

Engineering Strength

STaggered Bolt Pattern

EVO Grain Bins feature a staggered bolt pattern, which increases the space between bolts and reduces the number of holes in the sidewall. That spacing better distributes load through the bin wall.

Hardware is even more durable with 4X corrosion protection and EVO 2X Bins include an advanced sealing conical washer for a water-tight seal.

Smarter Design

GSI Interlaced Lamination

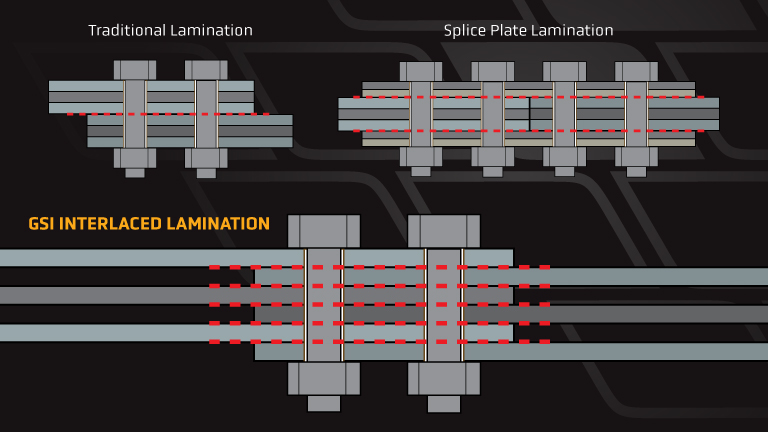

GSI’s interlaced laminated sheets maximize strength by distributing load across five shear planes. This improved structural performance is achieved through smarter design, rather than additional parts.

Traditional lamination places all load across one shear point. The splice plate lamination, used by some competition, places load across two shear planes but use additional parts and more bolts.

Interlaced lamination is available on GSI bin diameters 66′ (20.12 m) and larger.

Precision Engineered

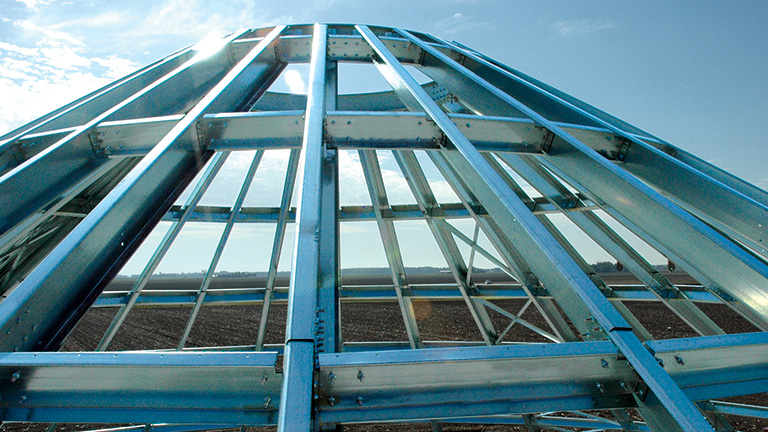

Z-Tek™ Roof System

The precision-engineered Z-Tek™ Roof System is designed for increased load capacity, the system incorporates z-shaped rafters and purlins, clips, peak ring, flat top, and roof panel for unsurpassed strength and protection.

Available on both EVO 50 and EVO 2X Bins 36’ (10.97 m) and larger.

Fewer Seams. Fewer Bolts. Better PRotection.

Double-length Sidewall Sheets

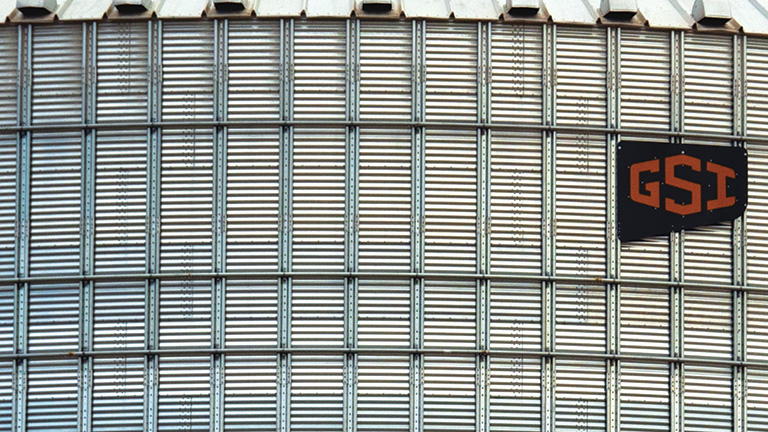

The sidewall sheets on a GSI EVO 2X are twice the length of standard bin sheets, cutting the number of vertical seams in half. And fewer vertical seams, means fewer bolts. The result is better protection against water intrusion and faster erection.

EVO 2X Bins are available in 90′ diameter and larger, making them ideal for commercial storage projects.

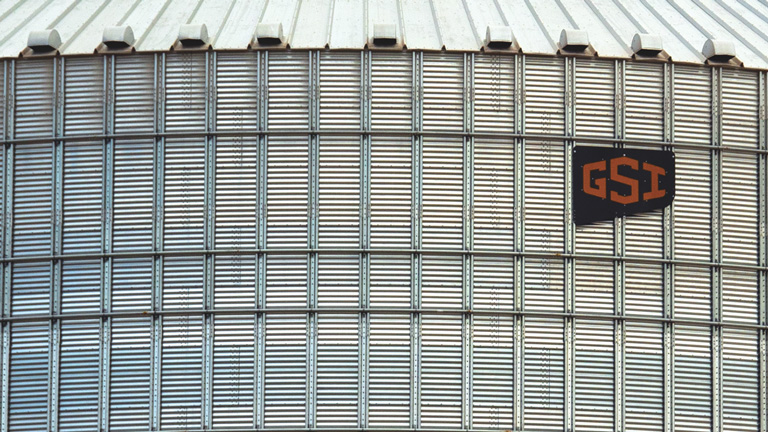

EVO 2X grain bin with double length sheets

EVO 50 Specifications

15′ – 78′ Diameters
Standard Size Sheets

lick — to collapse specifications for each diameter.

Jump to EVO 2X

Ring Height	Stiffeners per Sheet	Eave Height	Peak Height	Level Bu. Capacity 12″ Plenum	Peaked Bu. Capacity 12″ Plenum	Max Bu. Capacity	Capacity (Cubic Feet)	Metric Tons 800 kg/m³	Metric Tons 721 kg/m³	Metric Tons 640 kg/m³	Eave Height (Meters)	Peak Height (Meters)	Max. Capacity (Cubic Meters)
11	2	40’5”	44’9”	5,871	6,068	6,217	7,297	175	158	140	12.32	13.73	207
12	2	44’1”	48’5”	6,418	6,615	6,764	7,938	191	172	152	13.44	14.86	225
13	2	47’9″	52’1″	6,964	7,161	7,310	8,579	206	186	165	14.55	15.99	243

Ring Height	Stiffeners per Sheet	Eave Height	Peak Height	Level Bu. Capacity 12″ Plenum	Peaked Bu. Capacity 12″ Plenum	Max Bu. Capacity	Capacity (Cubic Feet)	Metric Tons 800 kg/m³	Metric Tons 721 kg/m³	Metric Tons 640 kg/m³	Eave Height (Meters)	Peak Height (Meters)	Max. Capacity (Cubic Meters)
11	2 or 3	40’5”	45’7”	8,455	8,795	9,010	10,574	254	229	203	12.32	13.91	299
12	2 or 3	44’1”	49’3”	9,241	9,582	9,796	11,497	276	249	221	13.44	15.03	326
13	2 or 3	47’9″	52’11”	10,028	10,369	10,583	12,420	298	269	239	14.55	16.15	352

Ring Height	Stiffeners per Sheet	Eave Height	Peak Height	Level Bu. Capacity 12″ Plenum	Peaked Bu. Capacity 12″ Plenum	Max Bu. Capacity	Capacity (Cubic Feet)	Metric Tons 800 kg/m³	Metric Tons 721 kg/m³	Metric Tons 640 kg/m³	Eave Height (Meters)	Peak Height (Meters)	Max. Capacity (Cubic Meters)
11	2 or 3	40’5”	46’6”	11,508	12,048	12,340	14,483	348	313	278	12.32	14.19	410
12	2 or 3	44’1”	50’2”	12,579	13,119	13,411	15,739	378	341	302	13.44	15.31	446
13	2 or 3	47’9″	53’10”	13,649	14,190	14,482	16,996	408	368	327	14.55	16.43	481
14	2 or 3	51’5″	57’6″	14,719	15,261	15,553	18,252	438	395	351	15.66	17.55	517
15	2 or 3	55’1″	61’2″	15,789	16,332	16,623	19,509	468	422	375	16.77	18.67	552
16	2 or 3	58’9″	64’10”	16,859	17,403	17,694	20,766	499	449	399	17.88	19.79	588
17	2 or 3	62’5″	68’6″	17,929	18,474	18,765	22,022	529	477	423	18.99	20.91	624
18	2 or 3	66’1″	72’2″	18,999	19,545	19,836	23,279	559	504	447	20.10	22.03	659
19	2 or 3	69’9″	75’10”	20,069	20,616	20,906	24,535	589	531	471	21.21	23.15	695
20	2 or 3	73’5″	79’6″	21,139	21,687	21,977	25,792	619	558	495	22.32	24.27	730

Ring Height	Stiffeners per Sheet	Eave Height	Peak Height	Level Bu. Capacity 12″ Plenum	Peaked Bu. Capacity 12″ Plenum	Max Bu. Capacity	Capacity (Cubic Feet)	Metric Tons 800 kg/m³	Metric Tons 721 kg/m³	Metric Tons 640 kg/m³	Eave Height (Meters)	Peak Height (Meters)	Max. Capacity (Cubic Meters)
11	2 or 3	40’5”	47’4”	15,031	15,838	16,219	19,034	457	412	366	12.32	14.44	539
12	2 or 3	44’1”	51’0”	16,429	17,236	17,618	20,676	496	447	397	13.44	15.56	585
13	2 or 3	47’9″	54’8″	17,828	18,635	19,016	22,317	536	483	429	14.55	16.68	632
14	2 or 3	51’5″	58’4″	19,227	20,034	20,415	23,958	575	518	460	15.66	17.80	678
15	2 or 3	55’1″	62’0″	20,626	21,433	21,813	25,600	615	554	492	16.77	18.92	725
16	2 or 3	58’9″	65’8″	22,025	22,832	23,212	27,241	654	590	523	17.88	20.04	771
17	2 or 3	62’5″	69’4″	23,424	24,231	24,610	28,882	694	625	555	18.99	21.16	818
18	2 or 3	66’1″	73’0″	24,823	25,630	26,009	30,523	733	661	586	20.10	22.28	864
19	2 or 3	69’9″	76’8″	26,222	27,029	27,407	32,165	772	696	618	21.21	23.40	911
20	2 or 3	73’5″	80’4″	27,621	28,428	28,806	33,806	812	732	649	22.32	24.52	957

Ring Height	Stiffeners per Sheet	Eave Height	Peak Height	Level Bu. Capacity 12″ Plenum	Peaked Bu. Capacity 12″ Plenum	Max Bu. Capacity	Capacity (Cubic Feet)	Metric Tons 800 kg/m³	Metric Tons 721 kg/m³	Metric Tons 640 kg/m³	Eave Height (Meters)	Peak Height (Meters)	Max. Capacity (Cubic Meters)
11	2 or 3	40’5”	48’3”	19,023	20,172	20,655	24,240	582	525	466	12.32	14.70	686
12	2 or 3	44’1”	51’11”	20,793	21,942	22,425	26,317	632	570	506	13.44	15.82	745
13	2 or 3	47’9″	55’7″	22,563	23,712	24,195	28,395	682	614	545	14.55	16.93	804
14	2 or 3	51’5″	59’3″	24,333	25,482	25,965	30,472	732	659	585	15.68	18.05	863
15	2 or 3	55’1″	62’11”	26,103	27,252	27,735	32,549	782	704	625	16.80	19.17	922
16	2 or 3	58’9″	66’7″	27,873	29,022	29,505	34,626	831	749	665	17.92	20.29	981
17	2 or 3	62’5″	70’3″	29,643	30,792	31,275	36,704	881	794	705	19.04	21.40	1,039
18	2 or 3	66’1″	73’11”	31,413	32,562	33,045	38,781	931	839	745	20.16	22.52	1,098
19	2 or 3	69’9″	77’7″	33,183	34,332	34,815	40,858	981	884	785	21.28	23.64	1,157
20	2 or 3	73’5″	81’3″	34,953	36,102	36,585	42,935	1,031	929	825	22.40	24.76	1,216
21	2 or 3	77’1″	84’11”	36,723	37,872	38,355	45,013	1,081	974	865	23.52	25.87	1,275
22	2 or 3	80’10”	88’7″	38,493	39,642	40,125	47,090	1,131	1,019	905	24.64	26.99	1,333

Ring Height	Stiffeners per Sheet	Eave Height	Peak Height	Level Bu. Capacity 12″ Plenum	Peaked Bu. Capacity 12″ Plenum	Max Bu. Capacity	Capacity (Cubic Feet)	Metric Tons 800 kg/m³	Metric Tons 721 kg/m³	Metric Tons 640 kg/m³	Eave Height (Meters)	Peak Height (Meters)	Max. Capacity (Cubic Meters)
11	2 or 3	40’5”	49’2”	23,485	25,061	25,657	30,111	723	652	578	12.32	14.93	853
12	2 or 3	44’1”	52’10”	25,671	27,247	27,843	32,676	785	707	628	13.44	16.04	925
13	2 or 3	47’9″	56’6″	27,856	29,432	30,028	35,240	846	763	677	14.56	17.15	998
14	2 or 3	51’5″	60’2″	30,041	31,617	32,213	37,805	908	818	726	15.68	18.26	1,071
15	2 or 3	55’1″	63’10”	32,226	33,802	34,398	40,369	969	874	776	16.80	19.37	1,143
16	2 or 3	58’9″	67’6″	34,411	35,987	36,583	42,934	1,031	929	825	17.92	20.48	1,216
17	2 or 3	62’5″	71’2″	36,597	38,173	38,769	45,498	1,092	985	874	19.04	21.59	1,288
18	2 or 3	66’1″	74’10”	38,782	40,358	40,954	48,063	1,154	1,040	923	20.16	22.70	1,361
19	2 or 3	69’9″	78’6″	40,967	42,543	43,139	50,627	1,216	1,096	973	21.28	23.81	1,434
20	2 or 3	73’5″	82’2″	43,152	44,728	45,324	53,192	1,277	1,151	1,022	22.40	24.92	1,506
21	2 or 3	77’1″	85’10”	45,337	46,913	47,509	55,756	1,339	1,207	1,071	23.52	26.03	1,579
22	2 or 3	80’10”	89’6″	47,522	49,098	49,695	58,321	1,400	1,262	1,120	24.64	27.14	1,651
23	2 or 3	84’6″	93’2″	49,707	51,283	51,880	60,885	1,462	1,318	1,170	25.76	28.25	1,724
24	2 or 3	88’1″	96’10”	51,892	53,468	54,065	63,450	1,524	1,373	1,219	26.88	29.36	1,797
25	2 or 3	91’10”	100’6″	54,077	55,653	56,250	66,014	1,585	1,429	1,268	28.00	30.47	1,869
26	2 or 3	95’5″	104’2″	56,262	57,838	58,435	68,579	1,647	1,484	1,317	29.12	31.58	1,942
27	2 or 3	99’1″	107’10”	58,447	60,023	60,620	71,143	1,708	1,540	1,367	30.24	32.69	2,015
28	2 or 3	102’10”	111’6″	60,632	62,208	62,806	73,708	1,770	1,595	1,416	31.36	33.80	2,087
29	2 or 3	106’5″	115’2″	62,817	64,393	64,991	76,272	1,831	1,651	1,465	32.48	34.91	2,160
30	2 or 3	110’1″	118’10”	65,002	66,578	67,176	78,837	1,893	1,706	1,515	33.60	36.02	2,232

Ring Height	Stiffeners per Sheet	Eave Height	Peak Height	Level Bu. Capacity 12″ Plenum	Peaked Bu. Capacity 12″ Plenum	Max Bu. Capacity	Capacity (Cubic Feet)	Metric Tons 800 kg/m³	Metric Tons 721 kg/m³	Metric Tons 640 kg/m³	Eave Height (Meters)	Peak Height (Meters)	Max. Capacity (Cubic Meters)
11	2 or 3	40’5”	50’0”	28,417	30,515	31,236	36,658	880	793	704	12.32	15.33	1,038
12	2 or 3	44’1”	53’8”	31,061	33,159	33,880	39,761	955	860	764	13.44	16.46	1,126
13	2 or 3	47’9″	57’4”	33,706	35,803	36,524	42,864	1,029	928	823	14.56	17.59	1,214
14	2 or 3	51’5″	61’0″	36,350	38,447	39,168	45,967	1,104	995	883	15.68	18.72	1,302
15	2 or 3	55’1″	64’8″	38,994	41,091	41,812	49,070	1,178	1,062	943	16.80	19.85	1,390
16	2 or 3	58’9″	68’4″	41,638	43,735	44,457	52,174	1,253	1,129	1,002	17.92	20.98	1,477
17	2 or 3	62’5″	72’0″	44,282	46,380	47,101	55,277	1,327	1,196	1,062	19.04	22.11	1,565
18	2 or 3	66’1″	75’8″	46,926	49,024	49,745	58,380	1,402	1,263	1,122	20.16	23.24	1,653
19	2 or 3	69’9″	79’4″	49,570	51,668	52,389	61,483	1,476	1,331	1,181	21.28	24.37	1,741
20	2 or 3	73’5″	83’0″	52,214	54,312	55,033	64,586	1,551	1,398	1,241	22.40	25.50	1,829
21	2 or 3	77’1″	86’8″	54,858	56,956	57,677	67,689	1,625	1,465	1,300	23.52	26.63	1,917
22	2 or 3	80’10”	90’4″	57,502	59,600	60,321	70,792	1,700	1,532	1,360	24.64	27.76	2,005
23	2 or 3	84’6″	94’0″	60,146	62,244	62,965	73,895	1,774	1,599	1,420	25.76	28.89	2,092
24	2 or 3	88’1″	97’8″	62,790	64,888	65,609	76,998	1,849	1,666	1,479	26.88	30.02	2,180
25	2 or 3	91’10”	101’4″	65,434	67,532	68,253	80,101	1,923	1,733	1,539	28.00	31.15	2,268
26	2 or 3	95’5″	105’0″	68,078	70,176	70,897	83,204	1,998	1,801	1,598	29.12	32.28	2,356
27	2 or 3	99’1″	108’8″	70,722	72,820	73,541	86,307	2,072	1,868	1,658	30.24	33.41	2,444
28	2 or 3	102’10”	112’4″	73,366	75,464	76,186	89,410	2,147	1,935	1,718	31.36	34.54	2,532
29	2 or 3	106’5″	116’0″	76,010	78,108	78,830	92,513	2,221	2,002	1,777	32.48	35.67	2,620
30	2 or 3	110’1″	119’8″	78,654	80,752	81,474	95,616	2,296	2,069	1,837	33.60	36.80	2,708

Ring Height	Stiffeners per Sheet	Eave Height	Peak Height	Level Bu. Capacity 12″ Plenum	Peaked Bu. Capacity 12″ Plenum	Max Bu. Capacity	Capacity (Cubic Feet)	Metric Tons 800 kg/m³	Metric Tons 721 kg/m³	Metric Tons 640 kg/m³	Eave Height (Meters)	Peak Height (Meters)	Max. Capacity (Cubic Meters)
11	2 or 3	40’5”	50’11”	33,819	36,542	37,401	43,893	1,054	950	843	12.32	15.49	1,243
12	2 or 3	44’1”	54’7”	36,966	39,689	40,547	47,586	1,143	1,030	914	13.44	16.61	1,347
13	2 or 3	47’9″	58’3”	40,112	42,836	43,694	51,279	1,231	1,110	985	14.56	17.73	1,452
14	2 or 3	51’5″	61’11”	43,259	45,982	46,841	54,971	1,320	1,190	1,056	15.68	18.85	1,557
15	2 or 3	55’1″	65’7″	46,406	49,129	49,987	58,664	1,409	1,270	1,127	16.80	19.96	1,661
16	2 or 3	58’9″	69’3″	49,552	52,276	53,134	62,357	1,497	1,349	1,198	17.92	21.08	1,766
17	2 or 3	62’5″	72’11”	52,699	55,422	56,281	66,050	1,586	1,429	1,269	19.04	22.20	1,870
18	2 or 3	66’1″	76’7″	55,846	58,569	59,427	69,743	1,675	1,509	1,340	20.16	23.32	1,975
19	2 or 3	69’9″	80’3″	58,992	61,716	62,574	73,436	1,763	1,589	1,411	21.28	24.44	2,079
20	2 or 3	73’5″	83’11”	62,139	64,862	65,721	77,129	1,852	1,669	1,482	22.40	25.56	2,184
21	2 or 3	77’1″	87’7″	65,286	68,009	68,867	80,822	1,941	1,749	1,553	23.52	26.68	2,289
22	2 or 3	80’10”	91’3″	68,433	71,156	72,014	84,515	2,029	1,829	1,624	24.64	27.80	2,393
23	2 or 3	84’6″	94’11”	71,580	74,303	75,161	88,207	2,118	1,909	1,695	25.76	28.92	2,498
24	2 or 3	88’1″	98’7″	74,727	77,450	78,307	91,900	2,207	1,989	1,765	26.88	30.04	2,602
25	2 or 3	91’10”	102’3″	77,874	80,597	81,454	95,593	2,295	2,069	1,836	28.00	31.16	2,707
26	2 or 3	95’5″	105’11”	81,021	83,744	84,601	99,286	2,384	2,149	1,907	29.12	32.28	2,811
27	2 or 3	99’1″	109’7″	84,168	86,891	87,747	102,979	2,473	2,229	1,978	30.24	33.40	2,916
28	2 or 3	102’10”	113’3″	87,315	90,038	90,894	106,672	2,561	2,309	2,049	31.36	34.52	3,021
29	2 or 3	106’5″	116’11”	90,462	93,185	94,041	110,365	2,650	2,388	2,120	32.48	35.64	3,125
30	2 or 3	110’1″	120’7″	93,609	96,332	97,187	114,058	2,739	2,468	2,191	33.60	36.76	3,230

Ring Height	Stiffeners per Sheet	Eave Height	Peak Height	Level Bu. Capacity 12″ Plenum	Peaked Bu. Capacity 12″ Plenum	Max Bu. Capacity	Capacity (Cubic Feet)	Metric Tons 800 kg/m³	Metric Tons 721 kg/m³	Metric Tons 640 kg/m³	Eave Height (Meters)	Peak Height (Meters)	Max. Capacity (Cubic Meters)
11*	2 or 3	40’5”	52′-8″	46,031	50,356	51,524	60,468	1,452	1,309	1,162	12.32	16.04	1,712
12*	2 or 3	44’1”	56’4″	50,314	54,639	55,807	65,494	1,573	1,417	1,258	13.44	17.15	1,855
13*	2 or 3	47’9″	60’0″	54,597	58,922	60,090	70,521	1,693	1,526	1,355	14.56	18.27	1,997
14	2 or 3	51’5″	62’8″	58,880	63,205	64,373	75,547	1,814	1,635	1,451	15.68	19.08	2,139
15	2 or 3	55’1″	66’4″	63,163	67,488	68,656	80,574	1,935	1,744	1,548	16.79	20.20	2,282
16	2 or 3	58’9″	70’0″	67,446	71,771	72,939	85,600	2,055	1,852	1,644	17.91	21.32	2,424
17	2 or 3	62’5″	73’8″	71,729	76,054	77,222	90,627	2,176	1,961	1,741	19.02	22.44	2,566
18	2 or 3	66’1″	77’4″	76,012	80,337	81,505	95,653	2,297	2,070	1,838	20.14	23.55	2,709
19	2 or 3	69’9″	81’0″	80,295	84,620	85,788	100,679	2,417	2,179	1,934	21.26	24.67	2,851
20	2 or 3	73’5″	84’8″	84,578	88,903	90,071	105,706	2,538	2,288	2,031	22.38	25.79	2,993
21	2 or 3	77’1″	88’4″	88,861	93,186	94,354	110,732	2,659	2,396	2,127	23.50	26.91	3,136
22	2 or 3	80’10”	92’0″	93,144	97,469	98,637	115,759	2,780	2,505	2,224	24.58	28.02	3,278
23	2 or 3	84’5″	96’8″	97,427	101,752	102,920	120,785	2,900	2,614	2,320	25.69	29.14	3,420
24	2 or 3	88’1″	99’4″	101,710	106,035	107,203	125,812	3,021	2,723	2,417	26.80	30.26	3,563
25	2 or 3	91’10”	103’0″	105,993	110,318	111,486	130,838	3,142	2,831	2,513	27.91	31.38	3,705
26	2 or 3	95’5″	106’8″	110,276	114,601	115,769	135,864	3,262	2,940	2,610	29.02	32.49	3,847
27	2 or 3	99’1″	110’4″	114,559	118,884	120,052	140,891	3,383	3,049	2,707	30.13	33.61	3,990
28	2 or 3	102’10”	114’0″	118,842	123,167	124,335	145,917	3,504	3,158	2,803	31.24	34.73	4,132
29	2 or 3	106’5″	117’8″	123,125	127,450	128,618	150,944	3,624	3,267	2,900	32.35	35.85	4,274
30	2 or 3	110’1″	121’4″	127,408	131,733	132,901	155,970	3,745	3,375	2,996	33.46	36.96	4,417

Ring Height	Stiffeners per Sheet	Eave Height	Peak Height	Level Bu. Capacity 12″ Plenum	Peaked Bu. Capacity 12″ Plenum	Max Bu. Capacity	Capacity (Cubic Feet)	Metric Tons 800 kg/m³	Metric Tons 721 kg/m³	Metric Tons 640 kg/m³	Eave Height (Meters)	Peak Height (Meters)	Max. Capacity (Cubic Meters)
11*	2 or 3	40’5”	54’5″	60,123	66,578	68,104	79,925	1,919	1,730	1,535	12.32	16.57	2,263
12*	2 or 3	44’1”	58’1″	65,717	72,172	73,698	86,491	2,077	1,872	1,662	13.44	17.69	2,449
13*	2 or 3	47’9″	61’9″	71,311	77,766	79,292	93,056	2,234	2,014	1,788	14.56	18.81	2,635
14	2 or 3	51’5″	64’5″	76,905	83,360	84,886	99,621	2,392	2,156	1,914	15.68	19.63	2,821
15	2 or 3	55’1″	68’1″	82,499	88,954	90,480	106,186	2,550	2,298	2,040	16.79	20.74	3,007
16	2 or 3	58’9″	71’9″	88,093	94,548	96,074	112,751	2,707	2,440	2,166	17.91	21.86	3,193
17	2 or 3	62’5″	75’5″	93,687	100,143	101,668	119,316	2,865	2,582	2,292	19.02	22.98	3,379
18	2 or 3	66’1″	79’1″	99,281	105,737	107,262	125,881	3,023	2,724	2,418	20.14	24.10	3,565
19	2 or 3	69’9″	82’9″	104,875	111,331	112,856	132,447	3,180	2,866	2,544	21.26	25.22	3,750
20	2 or 3	73’5″	86’5″	110,469	116,925	118,451	139,012	3,338	3,008	2,671	22.38	26.33	3,936
21	2 or 3	77’1″	90’1″	116,064	122,519	124,045	145,577	3,496	3,150	2,797	23.50	27.45	4,122
22	2 or 3	80’10”	93’9″	121,659	128,113	129,639	152,142	3,653	3,293	2,923	24.58	28.57	4,308
23	2 or 3	84’5″	97’5″	127,254	133,707	135,233	158,707	3,811	3,435	3,049	25.69	29.69	4,494
24	2 or 3	88’1″	101’1″	132,849	139,301	140,827	165,272	3,968	3,577	3,175	26.80	30.80	4,680
25	2 or 3	91’10”	104’9″	138,444	144,895	146,421	171,837	4,126	3,719	3,301	27.91	31.92	4,866
26	2 or 3	95’5″	108’5″	144,039	150,489	152,015	178,403	4,284	3,861	3,427	29.02	33.04	5,052
27	2 or 3	99’1″	112’1″	149,634	156,083	157,609	184,968	4,441	4,003	3,553	30.13	34.16	5,238
28	2 or 3	102’10”	115’9″	155,229	161,677	163,203	191,533	4,599	4,145	3,679	31.24	35.27	5,424
29	3	106’5″	119’5″	160,824	167,271	168,797	198,098	4,757	4,287	3,806	32.35	36.39	5,610
30	3	110’1″	123’1″	166,419	172,865	174,391	204,663	4,914	4,429	3,932	33.46	37.51	5,795

Ring Height	Stiffeners per Sheet	Eave Height	Peak Height	Level Bu. Capacity 12″ Plenum	Peaked Bu. Capacity 12″ Plenum	Max Bu. Capacity	Capacity (Cubic Feet)	Metric Tons 800 kg/m³	Metric Tons 721 kg/m³	Metric Tons 640 kg/m³	Eave Height (Meters)	Peak Height (Meters)	Max. Capacity (Cubic Meters)
11	2 or 3	40’5”	54’9″	76,093	85,284	87,215	102,354	2,458	2,215	1,966	12.32	16.68	2,898
12	2 or 3	44’1”	58’5″	83,173	92,364	94,295	110,663	2,657	2,395	2,126	13.44	17.80	3,134
13	2 or 3	47’9″	62’1″	90,253	99,444	101,375	118,972	2,857	2,575	2,286	14.56	18.92	3,369
14	2 or 3	51’5″	65’9″	97,333	106,524	108,455	127,281	3,056	2,755	2,445	15.68	20.03	3,604
15	2 or 3	55’1″	69’5″	104,413	113,604	115,535	135,590	3,256	2,934	2,605	16.81	21.15	3,839
16	2 or 3	58’9″	73’1″	111,493	120,684	122,615	143,899	3,455	3,114	2,764	17.92	22.27	4,075
17	2 or 3	62’5″	76’9″	118,573	127,764	129,695	152,208	3,655	3,294	2,924	19.03	23.39	4,310
18	2 or 3	66’1″	80’5″	125,653	134,844	136,775	160,517	3,854	3,474	3,084	20.14	24.50	4,545
19	2 or 3	69’9″	84’1″	132,733	141,924	143,855	168,826	4,054	3,654	3,243	21.25	25.62	4,781
20	2 or 3	73’5″	87’9″	139,813	149,004	150,935	177,135	4,253	3,833	3,403	22.36	26.74	5,016
21	2 or 3	77’1″	91’5″	146,893	156,084	158,015	185,444	4,453	4,013	3,563	23.47	27.86	5,251
22	2 or 3	80’10”	95’1″	153,973	163,164	165,095	193,753	4,652	4,193	3,722	24.58	28.97	5,486
23	2 or 3	84’5″	98’9″	161,053	170,244	172,175	202,062	4,852	4,373	3,882	25.69	30.09	5,722
24	2 or 3	88’1″	102’5″	168,133	177,324	179,255	210,371	5,051	4,553	4,041	26.80	31.21	5,957
25	2 or 3	91’10”	106’1″	175,213	184,404	186,335	218,680	5,251	4,732	4,201	27.91	32.33	6,192
26	2 or 3	95’5″	109’9″	182,293	191,484	193,415	226,989	5,450	4,912	4,361	29.02	33.45	6,428
27	2 or 3	99’1″	113’5″	189,373	198,564	200,495	235,298	5,650	5,092	4,520	30.13	34.56	6,663
28	3	102’10”	117’1″	196,453	205,644	207,575	243,607	5,849	5,272	4,680	31.24	35.68	6,898
29	3	106’5″	120’9″	203,533	212,724	214,655	251,916	6,049	5,452	4,839	32.35	36.80	7,133
30	3	110’1″	124’5″	210,613	219,804	221,735	260,225	6,248	5,632	4,999	33.46	37.92	7,369

Ring Height	Stiffeners per Sheet	Eave Height	Peak Height	Level Bu. Capacity 12″ Plenum	Peaked Bu. Capacity 12″ Plenum	Max Bu. Capacity	Capacity (Cubic Feet)	Metric Tons 800 kg/m³	Metric Tons 721 kg/m³	Metric Tons 640 kg/m³	Eave Height (Meters)	Peak Height (Meters)	Max. Capacity (Cubic Meters)
11	2 or 3	40’5”	56’6″	93,942	106,550	108,934	127,843	3,070	2,767	2,456	12.32	17.22	3,620
12	2 or 3	44’1”	60’2″	102,682	115,291	117,674	138,101	3,316	2,989	2,653	13.44	18.34	3,911
13	2 or 3	47’9″	63’10”	111,423	124,031	126,415	148,359	3,562	3,211	2,850	14.56	19.46	4,201
14	2 or 3	51’5″	67’6″	120,164	132,772	135,156	158,617	3,809	3,433	3,047	15.70	20.58	4,492
15	2 or 3	55’1″	71’2″	128,905	141,513	143,897	168,875	4,055	3,655	3,244	16.81	21.69	4,782
16	2 or 3	58’9″	74’10”	137,645	150,254	152,638	179,133	4,301	3,877	3,441	17.93	22.81	5,072
17	2 or 3	62’5″	78’6″	146,386	158,994	161,378	189,391	4,548	4,099	3,638	19.03	23.93	5,363
18	2 or 3	66’1″	82’2″	155,127	167,735	170,119	199,649	4,794	4,321	3,835	20.14	25.05	5,653
19	2 or 3	69’9″	85’10”	163,868	176,476	178,860	209,907	5,040	4,543	4,032	21.25	26.16	5,944
20	2 or 3	73’5″	89’6″	172,609	185,217	187,601	220,165	5,287	4,765	4,230	22.36	27.28	6,234
21	2 or 3	77’1″	93’2″	181,349	193,957	196,341	230,423	5,533	4,987	4,427	23.47	28.40	6,525
22	2 or 3	80’10”	96’10”	190,089	202,697	205,082	240,681	5,779	5,209	4,624	24.58	29.52	6,815
23	2 or 3	84’5″	100″6″	198,829	211,437	213,823	250,939	6,025	5,431	4,821	25.69	30.63	7,106
24	2 or 3	88’1″	104’2″	207,569	220,177	222,564	261,197	6,272	5,653	5,018	26.80	31.75	7,396
25	2 or 3	91’10”	107’10”	216,309	228,917	231,304	271,455	6,518	5,875	5,215	27.91	32.87	7,687
26	2 or 3	95’5″	111’6″	225,049	237,657	240,045	281,713	6,764	6,097	5,412	29.02	33.99	7,977
27	2 or 3	99’1″	115’2″	233,789	246,397	248,786	291,971	7,011	6,319	5,609	30.13	35.10	8,268
28	3	102’10”	118’10”	242,529	255,137	257,527	302,229	7,257	6,541	5,806	31.24	36.22	8,558
29	3	106’5″	122’6″	251,269	263,877	266,267	312,487	7,503	6,763	6,003	32.35	37.34	8,849
30	3	110’1″	126’2″	260,009	272,617	275,008	322,745	7,750	6,985	6,200	33.46	38.46	9,139

Ring Height	Stiffeners per Sheet	Eave Height	Peak Height	Level Bu. Capacity 12″ Plenum	Peaked Bu. Capacity 12″ Plenum	Max Bu. Capacity	Capacity (Cubic Feet)	Metric Tons 800 kg/m³	Metric Tons 721 kg/m³	Metric Tons 640 kg/m³	Eave Height (Meters)	Peak Height (Meters)	Max. Capacity (Cubic Meters)
11	2 or 3	40’5”	57’3″	113669	130451	133335	156480	3757	3386	3006	12.32	17.44	4431
12	2 or 3	44’1”	60’11”	124246	141027	143912	168893	4055	3655	3245	13.44	18.55	4783
13	2 or 3	47’9″	64’7″	134822	151604	154488	181305	4353	3924	3483	14.56	19.67	5134
14	2 or 3	51’5″	68’3″	145398	162180	165064	193717	4651	4192	3721	15.70	20.79	5485
15	2 or 3	55’1″	71’11”	155975	172756	175641	206129	4949	4461	3960	16.81	21.91	5837
16	2 or 3	58’9″	75’7″	166551	183333	186217	218541	5248	4729	4198	17.93	23.02	6188
17	2 or 3	62’5″	79’3″	177127	193909	196793	230954	5546	4998	4437	19.03	24.14	6540
18	2 or 3	66’1″	82’11”	187704	204485	207370	243366	5844	5267	4675	20.14	25.26	6891
19	2 or 3	69’9″	86’7″	198280	215061	217946	255778	6142	5535	4914	21.25	26.38	7243
20	2 or 3	73’5″	90’3″	208856	225638	228522	268190	6440	5804	5152	22.36	27.49	7594
21	2 or 3	77’1″	93’11”	219433	236214	239099	280602	6738	6073	5391	23.47	28.61	7946
22	2 or 3	80’10”	97’7″	230010	246790	249676	293014	7036	6342	5630	24.58	29.73	8298
23	2 or 3	84’5″	101’3″	240587	257366	260253	305426	7334	6611	5869	25.69	30.85	8650
24	2 or 3	88’1″	104’10”	251164	267942	270830	317838	7632	6880	6108	26.80	31.96	9002
25	2 or 3	91’10”	108’7″	261741	278518	281407	330250	7930	7149	6347	27.91	33.08	9354
26	2 or 3	95’5″	112’3″	272318	289094	291984	342662	8228	7418	6586	29.02	34.20	9706
27	2 or 3	99’1″	115’10”	282895	299670	302561	355074	8526	7687	6825	30.13	35.32	10058
28	3	102’10”	119’7″	293472	310246	313138	367486	8824	7956	7064	31.24	36.44	10410
29	3	106’5″	123’3″	304049	320822	323715	379898	9122	8225	7303	32.35	37.55	10762
30	3	110’1″	126’10”	314626	331398	334292	392310	9420	8494	7542	33.46	38.67	11114

Ring Height	Stiffeners per Sheet	Eave Height	Peak Height	Level Bu. Capacity 12″ Plenum	Peaked Bu. Capacity 12″ Plenum	Max Bu. Capacity	Capacity (Cubic Feet)	Metric Tons 800 kg/m³	Metric Tons 721 kg/m³	Metric Tons 640 kg/m³	Eave Height (Meters)	Peak Height (Meters)	Max. Capacity (Cubic Meters)
11	2 or 3	40’5”	59’0″	135,276	157,063	160,496	188,355	4,523	4,076	3,618	12.32	17.98	5,334
12	2 or 3	44’1”	62’8″	147,863	169,650	173,082	203,127	4,877	4,396	3,902	13.44	19.10	5,752
13	2 or 3	47’9″	66’4″	160,449	182,236	185,669	217,898	5,232	4,716	4,186	14.56	20.21	6,170
14	2 or 3	51’5″	70’0″	173,036	194,823	198,256	232,670	5,587	5,035	4,470	15.70	21.33	6,588
15	2 or 3	55’1″	73’8″	185,623	207,410	210,842	247,442	5,941	5,355	4,754	16.81	22.45	7,007
16	2 or 3	58’9″	77’4″	198,209	219,996	223,429	262,213	6,296	5,675	5,037	17.93	23.57	7,425
17	2 or 3	62’5″	81’0″	210,796	232,583	236,016	276,985	6,651	5,994	5,321	19.03	24.68	7,843
18	2 or 3	66’1″	84’8″	223,383	245,170	248,603	291,756	7,006	6,314	5,605	20.14	25.80	8,262
19	2 or 3	69’9″	88’4″	235,970	257,757	261,189	306,528	7,360	6,634	5,889	21.25	26.92	8,690
20	2 or 3	73’5″	92’0″	248,556	270,343	273,776	321,299	7,715	6,953	6,172	22.36	28.04	9,098
21	2 or 3	77’1″	95’8″	261,143	282,930	286,363	336,071	8,070	7,273	6,456	23.47	29.15	9,516
22	2 or 3	80’10”	99’4″	273,730	295,517	298,950	350,843	8,425	7,593	6,740	24.58	30.27	9,934
23	2 or 3	84’5″	103’0″	286,317	308,104	311,537	365,615	8,780	7,913	7,024	25.69	31.39	10,352
24	2 or 3	88’1″	106’8″	298,904	320,691	324,124	380,387	9,135	8,233	7,308	26.80	32.51	10,770
25	2 or 3	91’10”	110’4″	311,491	333,278	336,711	395,159	9,490	8,553	7,592	27.91	33.62	11,188
26	2 or 3	95’5″	114’0″	324,078	345,865	349,298	409,931	9,845	8,873	7,876	29.02	34.74	11,606
27	2 or 3	99’1″	117’8″	336,665	358,452	361,885	424,703	10,200	9,193	8,160	30.13	35.86	12,024
28	3	102’10”	121’4″	349,252	371,039	374,472	439,475	10,555	9,513	8,444	31.24	36.98	12,442
29	3	106’5″	125’0″	361,839	383,626	387,059	454,247	10,910	9,833	8,728	32.35	38.09	12,860
30	3	110’1″	128’8″	374,426	396,213	399,646	469,019	11,265	10,153	9,012	33.46	39.21	13,278

Ring Height	Stiffeners per Sheet	Eave Height	Peak Height	Level Bu. Capacity 12″ Plenum	Peaked Bu. Capacity 12″ Plenum	Max Bu. Capacity	Capacity (Cubic Feet)	Metric Tons 800 kg/m³	Metric Tons 721 kg/m³	Metric Tons 640 kg/m³	Eave Height (Meters)	Peak Height (Meters)	Max. Capacity (Cubic Meters)
11	2 or 3	40’5”	59’11”	146,519	171,370	175,095	205,489	4,934	4,447	3,948	12.32	18.25	5,819
12	2 or 3	44’1”	63’7″	160,177	185,028	188,752	221,517	5,319	4,794	4,255	13.44	19.36	6,273
13	2 or 3	47’9″	67’3″	173,834	198,685	202,410	237,545	5,704	5,141	4,563	14.56	20.48	6,727
14	2 or 3	51’5″	70’11”	187,491	212,342	216,067	253,573	6,089	5,488	4,871	15.70	21.60	7,180
15	2 or 3	55’1″	74’7″	201,149	226,000	229,725	269,601	6,474	5,834	5,179	16.81	22.72	7,634
16	2 or 3	58’9″	78’3″	214,806	239,657	243,382	285,630	6,858	6,181	5,487	17.93	23.83	8,088
17	2 or 3	62’5″	81’11”	228,464	253,315	257,039	301,658	7,243	6,528	5,795	19.03	24.95	8,542
18	2 or 3	66’1″	85’7″	242,121	266,972	270,697	317,686	7,628	6,875	6,103	20.14	26.07	8,996
19	2 or 3	69’9″	89’3″	255,779	280,630	284,354	333,714	8,013	7,222	6,411	21.25	27.19	9,450
20	2 or 3	73’5″	92’11”	269,436	294,287	298,012	349,742	8,398	7,569	6,719	22.36	28.30	9,904
21	2 or 3	77’1″	96’7″	283,093	307,944	311,669	365,770	8,783	7,916	7,027	23.47	29.42	10,357
22	2 or 3	80’10”	100’3″	296,751	321,602	325,327	381,798	9,168	8,263	7,335	24.58	30.54	10,811
23	2 or 3	84’5″	103’11”	310,408	335,259	338,984	397,827	9,552	8,609	7,643	25.69	31.66	11,265
24	2 or 3	88’1″	107’7″	324,066	348,917	352,642	4,138,558	9,937	8,956	7,950	26.80	32.77	11,719
25	2 or 3	91’10”	111’3″	337,723	362,574	366,299	429,883	10,322	9,303	8,258	27.91	33.89	12,173
26	2 or 3	95’5″	114’11”	351,381	376,232	379,956	445,911	10,707	8,650	8,566	29.02	35.01	12,627
27	2 or 3	99’1″	118’7″	265,038	289,889	393,614	461,939	11,092	9,997	8,874	30.13	36.13	13,081
28	3	102’10”	112’3″	378,696	403,547	407,271	477,967	11,477	10,344	9,182	31.24	37.24	13,535
29	3	106’5″	125’11”	392,353	417,204	420,929	493,996	11,862	10,691	9,490	32.35	38.36	13,988
30	3	110’1″	129’7″	406,010	430,861	434,586	510,024	12,246	11,038	9,798	33.46	39.48	14,442

Ring Height	Stiffeners per Sheet	Eave Height	Peak Height	Level Bu. Capacity 12″ Plenum	Peaked Bu. Capacity 12″ Plenum	Max Bu. Capacity	Capacity (Cubic Feet)	Metric Tons 800 kg/m³	Metric Tons 721 kg/m³	Metric Tons 640 kg/m³	Eave Height (Meters)	Peak Height (Meters)	Max. Capacity (Cubic Meters)
11	2 or 3	40’5”	60’9″	158,466	186,419	190,448	223,507	5,367	4,837	4,294	12.32	18.51	6,329
12	2 or 3	44’1”	64’5″	173,238	201,191	205,220	240,843	5,783	5,212	4,627	13.44	19.63	6,820
13	2 or 3	47’9″	68’1″	188,010	215,963	219,992	258,179	6,199	5,587	4,960	14.56	20.75	7,311
14	2 or 3	51’5″	71’9″	202,782	230,735	234,764	275,515	6,616	5,962	5,293	15.70	21.86	7,802
15	2 or 3	55’1″	75’5″	217,554	245,507	249,536	292,851	7,032	6,338	5,626	16.81	22.98	8,293
16	2 or 3	58’9″	79’1″	232,326	260,279	264,307	310,187	7,448	6,713	5,959	17.93	24.10	8,784
17	2 or 3	62’5″	82’9″	247,098	275,051	279,079	327,523	7,864	7,088	6,292	19.03	25.22	9,274
18	2 or 3	66’1″	86’5″	261,969	289,922	293,851	344,859	8,281	7,463	6,625	20.14	26.33	9,765
19	2 or 3	69’9″	90’1″	276,641	304,594	308,623	362,195	8,697	7,838	6,958	21.25	27.45	10,256
20	2 or 3	73’5″	93’9″	291,413	319,366	323,395	379,531	9,113	8,214	7,291	22.36	28.57	10,747
21	2 or 3	77’1″	97’5″	306,185	334,138	338,167	396,868	9,528	8,589	7,624	23.47	29.69	11,238
22	2 or 3	80’10”	101’1″	320,957	348,910	352,939	414,204	9,946	8,964	7,957	24.58	30.80	11,729
23	2 or 3	84’5″	104’9″	335,729	363,682	367,711	431,540	10,362	9,339	8,290	25.69	31.92	12,220
24	2 or 3	88’1″	108’5″	350,501	378,454	382,483	448,876	10,778	9,714	8,623	26.80	33.04	12,711
25	2 or 3	91’10”	112’1″	365,273	393,226	397,254	466,212	11,194	10,089	8,956	27.91	34.16	13,202
26	2 or 3	95’5″	115’9″	380,045	407,998	412,026	483,548	11,611	10,465	9,289	29.02	35.27	13,693
27	2 or 3	99’1″	119’5″	394,816	422,769	426,798	500,884	12,027	10,840	9,622	30.13	36.39	14,183
28	3	102’10”	123’1″	409,588	437,541	441,570	518,220	12,443	11,215	9,955	31.24	37.51	14,674
29	3	106’5″	126′-9″	424,360	452,313	456,342	535,556	12,860	11,590	10,288	32.35	38.63	15,165
30	3	110’1″	130’5″	439,132	467,085	471,114	552,892	13,276	11,965	10,621	33.46	39.74	15,656

EVO 2X Specifications

90′ – 156′ Diameters
Double Length Sheets

Click — to collapse specifications for each diameter.

Jump to EVO 50

Ring Height	Stiffeners per Sheet	Eave Height	Peak Height	Level Bu. Capacity 12″ Plenum	Peaked Bu. Capacity 12″ Plenum	Max Bu. Capacity	Capacity (Cubic Feet)	Metric Tons 800 kg/m³	Metric Tons 721 kg/m³	Metric Tons 640 kg/m³	Eave Height (Meters)	Peak Height (Meters)	Max. Capacity (Cubic Meters)
11	2 or 3	40’5”	64’4″	210,924	253,865	259,229	304,227	7,305	6,584	5,844	12.32	19.60	8,615
12	2 or 3	44’1”	68’0″	230,591	273,532	278,895	327,307	7,859	7,083	6,288	13.44	20.71	9,268
13	2 or 3	47’9″	71’8″	250,257	293,198	298,562	350,388	8,413	7,583	6,731	14.56	21.83	9,922
14	2 or 3	51’5″	75’4″	269,924	312,865	318,229	373,469	8,968	8,082	7,175	15.70	22.95	10,575
15	2 or 3	55’1″	79’0″	289,591	332,532	337,896	396,549	9,522	8,582	7,618	16.81	24.07	11,229
16	2 or 3	58’9″	82’8″	309,258	352,199	357,562	419,630	10,076	9,081	8,061	17.93	25.18	11,883
17	2 or 3	62’5″	86’4″	328,924	371,865	377,229	442,710	10,630	9,581	8,505	19.03	26.30	12,536
18	2 or 3	66’1″	90’0″	348,591	391,532	396,896	465,791	11,184	10,080	8,948	20.14	27.42	13,190
19	2 or 3	69’9″	93’8″	368,258	411,199	416,562	488,871	11,739	10,580	9,392	21.25	28.54	13,843
20	2 or 3	73’5″	97’4″	388,024	430,965	436,229	511,952	12,293	11,079	9,835	22.36	29.65	14,497
21	2 or 3	77’1″	101’0″	407,591	450,532	455,896	535,032	12,847	11,579	10,278	23.47	30.77	15,150
22	2 or 3	80’10”	104’8″	427,258	470,199	475,563	558,113	13,401	12,078	10,722	24.58	31.89	15,804
23	2 or 3	84’5″	108’4″	446,925	489,866	495,229	581,194	13,955	12,578	11,165	25.69	33.01	16,458
24	2 or 3	88’1″	112’0″	466,591	509,532	514,896	604,274	14,510	13,077	11,609	26.80	34.13	17,111
25	2 or 3	91’10”	115’8″	486,258	529,199	534,563	627,355	15,064	13,577	12,052	27.91	35.24	17,765
26	2 or 3	95’5″	119’4″	505,925	548,866	554,229	650,435	15,618	14,076	12,495	29.02	36.36	18,418
27	3	99’1″	123’0″	525,591	568,532	573,896	673,516	16,172	14,576	12,939	30.13	37.48	19,072
28	3	102’10”	126’8″	545,258	588,199	593,563	696,596	16,726	15,075	13,382	31.24	38.60	19,725
29	3	106’5″	130’4″	564,925	607,866	613,230	719,677	17,281	15,575	13,825	32.35	39.71	20,379
30	3	110’1″	134’0″	584,592	627,533	632,896	742,757	17,835	16,074	14,269	33.46	40.83	21,033

Ring Height	Stiffeners per Sheet	Eave Height	Peak Height	Level Bu. Capacity 12″ Plenum	Peaked Bu. Capacity 12″ Plenum	Max Bu. Capacity	Capacity (Cubic Feet)	Metric Tons 800 kg/m³	Metric Tons 721 kg/m³	Metric Tons 640 kg/m³	Eave Height (Meters)	Peak Height (Meters)	Max. Capacity (Cubic Meters)
11	2 or 3	40’5”	68’8″	287,002	355,192	362,492	425,415	10,215	9,206	8,173	12.32	20.92	12,046
12	2 or 3	44’1”	72’4″	313,770	381,960	389,261	456,831	10,969	9,886	8,776	13.44	22.04	12,936
13	2 or 3	47’9″	76’0″	340,539	408,729	416,029	488,246	11,724	10,566	9,380	14.56	23.16	13,826
14	2 or 3	51’5″	79’8″	367,307	435,497	442,798	519,661	12,478	11,246	9,983	15.70	24.28	14,715
15	2 or 3	55’1″	83’4″	394,076	462,266	469,567	551,076	13,232	11,926	10,587	16.81	25.39	15,605
16	2 or 3	58’9″	87’0″	420,845	489,035	496,335	582,491	13,987	12,606	11,190	17.93	26.51	16,494
17	2 or 3	62’5″	90’8″	447,613	515,803	523,104	613,907	14,741	13,286	11,794	19.03	27.63	17,384
18	2 or 3	66’1″	94’4″	474,382	542,572	549,872	645,322	15,495	13,966	12,397	20.14	28.75	18,273
19	2 or 3	69’9″	98’0″	501,150	569,340	576,641	676,737	16,250	14,645	13,001	21.25	29.87	19,163
20	2 or 3	73’5″	101’8″	527,919	596,109	603,409	708,152	170,004	15,325	13,604	22.36	30.98	20,053
21	2 or 3	77’1″	105’4″	554,687	622,877	630,178	739,567	17,758	16,005	14,208	23.47	32.10	20,942
22	2 or 3	80’10”	109’0″	581,456	649,646	656,947	770,983	18,512	16,685	14,811	24.58	33.22	21,832
23	2 or 3	84’5″	112’8″	608,225	676,415	683,715	802,398	19,267	17,365	15,415	25.69	34.34	22,721
24	2 or 3	88’1″	116’4″	634,993	703,183	710,484	833,813	20,021	18,045	16,018	26.80	35.45	23,611
25	2 or 3	91’10”	120’0″	661,762	729,952	737,252	865,228	20,775	18,725	1,622	27.91	36.57	24,501
26	3	95’5″	123’8″	688,530	756,720	764,021	896,643	21,530	19,404	17,225	29.02	37.69	25,390
27	3	99’1″	127’4″	715,299	783,489	790,789	928,059	22,284	20,084	17,829	30.13	38.81	26,280
28	3	102’10”	131’0″	742,068	810,258	817,558	959,474	23,038	20,764	18,432	31.24	39.92	27,169
29	3	106’5″	134’8″	768,836	837,026	844,327	990,889	23,793	21,444	19,036	32.35	41.04	28,059
30	3	110’1″	138’4″	795,605	863,795	871,095	1,022,304	24,547	22,124	19,639	33.46	42.16	28,948

Ring Height	Stiffeners per Sheet	Eave Height	Peak Height	Max Bu. Capacity	Capacity (Cubic Feet)	Metric Tons 800 kg/m³	Metric Tons 721 kg/m³	Metric Tons 640 kg/m³	Eave Height (Meters)	Peak Height (Meters)	Max. Capacity (Cubic Meters)
11	3	40’5”	76’5″	631,136	740,692	17,785	16,029	14,229	12.32	23.29	20,974
12	3	44’1”	80’1″	675,386	792,623	19,032	17,153	15,227	13.44	24.40	22,445
13	3	47’9″	83’9″	719,636	844,554	20,279	18,277	16,224	14.56	25.52	23,915
14	3	51’5″	87’5″	763,887	896,486	21,536	19,401	17,222	15.70	26.64	25,386
15	3	55’1″	91’0″	808,137	948,417	22,773	20,525	18,220	16.81	27.76	26,856
16	3	58’9″	94’9″	852,387	1,000,348	24,020	21,649	19,217	17.93	28.87	28,327
17	3	62’5″	98’5″	896,637	1,052,279	25,267	22,773	20,215	19.03	29.99	29,797
18	3	66’1″	102’1″	940,887	1,104,211	26,514	23,896	2,123	20.14	31.11	31,268
19	3	69’9″	105’9″	985,137	1,156,142	27,771	25,020	22,210	21.25	32.23	32,738
20	3	73’5″	109’5″	1,029,387	1,028,073	29,008	2,611	23,208	22.36	33.35	34,209
21	3	77’1″	113’1″	1,073,637	1,260,004	30,255	27,268	24,206	23.47	34.46	35,679
22	3	80’10”	116’9″	1,117,887	1,311,936	31,502	28,392	25,203	24.58	35.58	37,150
23	3	84’5″	120’5″	1,162,137	1,362,867	32,749	29,516	26,201	25.69	36.70	38,620
24	3	88’1″	124’1″	1,206,388	1,415,798	33,996	30,640	27,198	26.80	37.82	40,091
25	3	91’10”	127’9″	1,250,638	1,467,729	35,242	31,763	28,196	27.91	38.93	41,561
26	3	95’5″	131’5″	1,294,888	1,519,661	36,489	32,887	29,194	29.02	40.05	43,032
27	3	99’1″	135’1″	1,339,138	1,571,592	37,736	34,011	30,191	30.13	41.17	44,503
28	3	102’10”	138’9″	1,383,388	1,623,523	38,983	35,135	31,189	31.24	42.29	45,973
29	3	106’5″	142’5″	1,427,638	1,675,454	40,230	36,259	32,187	32.35	43.40	47,444
30	3	110’1″	146’1″	1,471,888	1,727,386	41,477	37,383	33,184	33.46	44.52	48,914

Ring Height	Stiffeners per Sheet	Eave Height	Peak Height	Max Bu. Capacity	Capacity (Cubic Feet)	Metric Tons 800 kg/m³	Metric Tons 721 kg/m³	Metric Tons 640 kg/m³	Eave Height (Meters)	Peak Height (Meters)	Max. Capacity (Cubic Meters)
11	3	40’5”	82’8″	872,593	1,024,061	24,589	22,162	19,673	12.32	25.18	28,998
12	3	44’1”	86’4″	931,680	1,093,406	26,254	23,662	21,005	13.44	26.30	30,962
13	3	47’9″	90’0″	990,768	1,162,750	27,919	25,163	22,337	14.56	27.42	32,925
14	3	51’5″	93’8″	1,049,855	1,232,094	29,584	26,664	23,669	15.70	28.54	34,889
15	3	55’1″	97’4″	1,108,943	1,301,438	31,250	28,165	25,002	16.81	29.65	336,853
16	3	58’9″	101’0″	1,168,030	1,370,783	32,915	29,665	26,334	17.93	30.77	38,816
17	3	62’5″	104’8″	1,227,118	1,440,127	34,580	31,166	27,666	19.03	31.89	40,780
18	3	66’1″	108’4″	1,286,205	1,509,471	36,245	32,667	28,998	20.14	33.01	42,743
19	3	69’9″	112’0″	1,345,293	1,578,815	37,910	34,167	30,330	21.25	34.12	44,707
20	3	73’5″	115’8″	1,404,380	1,648,160	39,575	35,668	31,662	22.36	35.24	46,671
21	3	77’1″	119’4″	1,463,468	1,717,504	41,250	37,169	32,994	23.47	36.36	48,634
22	3	80’10”	123’0″	1,522,556	1,786,848	42,905	38,669	34,327	24.58	37.48	50,598
23	3	84’5″	127’8″	1,581,643	1,856,192	44,570	40,170	35,659	25.69	38.60	52,562
24	3	88’1″	130’4″	1,640,731	1,925,537	46,235	41,671	36,994	26.80	39.71	54,525
25	3	91’10”	134’0″	1,699,818	1,994,881	47,900	43,172	38,323	27.91	40.83	56,489
26	3	95’5″	137’8″	1,758,906	2,064,225	49,565	44,672	39,655	29.02	41.95	58,452
27	3	99’1″	141’4″	1,817,993	2,133,569	51,230	46,173	40,987	30.13	43.07	60,416
28	3	102’10”	145’0″	1,877,081	2,202,914	52,895	47,674	42,319	31.24	44.18	62,380
29	3	106’5″	148’8″	1,936,168	2,272,258	54,560	49,174	43,652	32.35	45.30	64,343
30	3	110’1″	152’4″	1,995,256	2,341,602	56,225	50,675	44,984	33.46	46.42	66,307

strength through Simplicity

EVO™ Grain Bins

strength through Simplicity

HIGHLIGHTS

Introducing a Better Bin

EVO 2X Grain Bins

We’ve attacked the weakest points to give you a stronger bin

EVO 50 Grain Bins

Take Control with Better Protection

Built to Perform

Engineering Strength

STaggered Bolt Pattern

Smarter Design

GSI Interlaced Lamination

Precision Engineered

Z-Tek™ Roof System

Fewer Seams. Fewer Bolts. Better PRotection.

Double-length Sidewall Sheets

EVO 50 Specifications

15′ Diameter / 5,871-6,964 bu.

18′ Diameter / 8,455-10,028 bu.

21′ Diameter / 11,508-21,149 bu.

24′ Diameter / 15,031-27,621 bu.

27′ Diameter / 19,023-38,493 bu.

30′ Diameter / 23,485-65,002 bu.

33′ Diameter / 28,417-78,654 bu.

36′ Diameter / 33,819-93,609 bu.

42′ Diameter / 46,031-127,408 bu.

48′ Diameter / 60,123-166,419 bu.

54′ Diameter / 76,093-210,613 bu.

60′ Diameter / 93,942-260,009 bu.

66′ Diameter / 113,669-314,626 bu.

72′ Diameter / 135,276-399,646 bu.

75′ Diameter / 146,519-434,586 bu.

78′ Diameter / 158,466-471,114 bu.

EVO 2X Specifications

90′ Diameter / 210,924-632,896 bu.

105′ Diameter / 287,002-871,095 bu.

135′ Diameter / 631,136-1,471,888 bu.

156′ Diameter / 872,593-1,995,256 bu.
