Intuitive Connections for Easy Assembly
QuickBolt™ Towers
Intuitive Connections for Easy Assembly
HIGHLIGHTS
- Fewer bolts, less pieces and a time saving platform design for more efficient on-site assembly.
- Industry leading design is available for bucket elevators, support towers, and catwalk support towers.
- Res-Q Tube is 60″ (1.52 m) tall and weighs 27 pounds.
- Industry leading strength-to-weight ratios.
Built to Perform
Industry Leading Strength-to-Weight Ratios

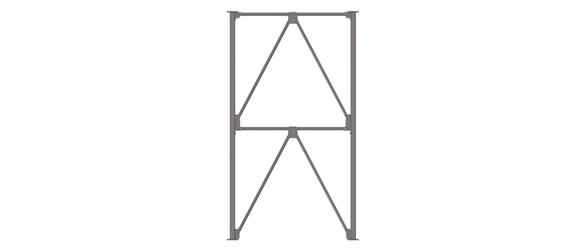

Chevron-Bracing
The new chevron-bracing design allows for easy access when working around the tower and when combined with the tube construction you get industry leading strength-to-weight ratios. This allows for the utilization of single bolt connections and significantly reduces the number of bolts required for assembly.
Intuitive Connections for Ease of Assembly

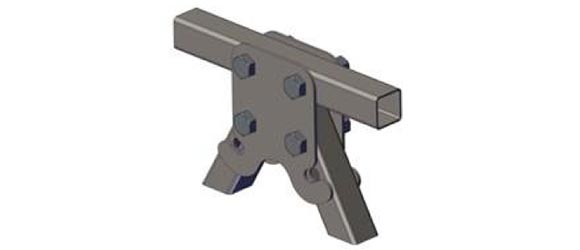

Simple Connections
The QuickBolt design requires fewer bolts, resulting in less time spent assembling, while still leading the industry in strength-to-weight ratios; simple connections and alignment guides aid in the ease of field assembly.

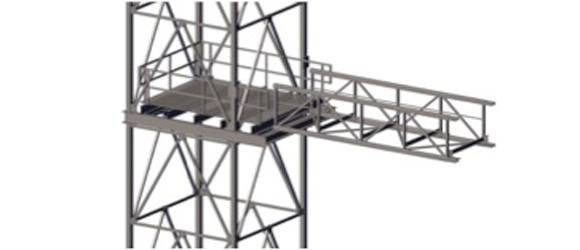

Platforms
Platforms can be built as separate units and placed between tower sections; this allows the installer to build the platform separately and then place it between the tower sections up in the air. Platform beams stack on platform support beams, further simplifying platform assembly.
Options

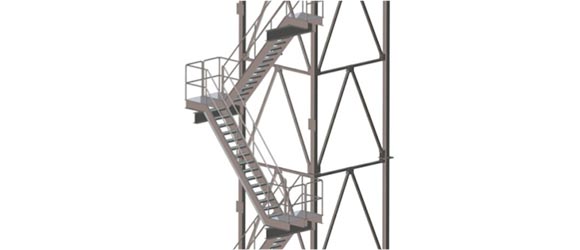

Stairs
Our fast stack assembly process greatly reduces erection time while pre-welded stair support brackets give a precise and level fit with no clamping necessary. Stairs are available in wrap around or switch back options.
Specifications
| Model | Height | Footprint | Design |
|---|---|---|---|
| Ready-to-Order | 2′ increments up to 160′ | 8′, 10′, 12′ | Designed to support common bucket elevator configurations. |
| Configure-to-Order | 1′ increments up to 160′ | Standard | Combine sections and platforms in 1’ increments to fit within standard footprint. |
| Engineer-to-Order | Built to Request | Standard or Custom | Built to Request |
