Industrial Sampling

Extract samples of free-flowing material

Industrial Sampling

Industrial Sampling

Extract samples of free-flowing material

Highlights

  • Extract samples of free-flowing materials such as coal, aggregate, wood chips, plastics and liquid.
  • Eliminates issues inherent with hand-sampling methods and provide representative and repeatable samples.
  • Can be used in gravity, pneumatic or liquid lines and can be installed in chutes or at the end and middle of moving belts.
  • Controls and accessories such as collection carousels and PLC interface-capability are available.

Built to Perform

Gravity Chute Samplers

Models: GRA / GRE / GRES / GP / PT / GS / GSS / GSS-U

Gravity Chute Samplers

These InterSystems samplers collect representative samples from gravity spouts and are designed to require very little space.

Sloped Gravity Chute Samplers

Model: GRES

Sloped Gravity Chute Samplers

Cross-cut sampler for inclined spouts which can sample free flowing materials including granules, powders & pellets.

The GRES design requires very little space and collects representative samples from sloped gravity chute areas. When activated, a sample cutter pivots through the product stream, sweeping a complete 360-degree arc, collecting a true cross-cut sample. Sample cutter is parked away from the stream of material and is sealed when not sampling.

Pneumatic Line Samplers

Models: PS / PRT / HD-PP / PT / PDP

Pneumatic Line Samplers

These samplers collect representative samples for free-flowing materials from microscopic powders to large granules or heavy viscosity liquids with solid suspensions.

Belt End Samplers

Models: PRT / HD-PRT

Belt End Samplers

Belt End Industrial Samplers are appropriate for collecting samples from a wide range of materials. They sample fines, small or large particles, and also work with abrasive materials. These models provide representative and repeatable samples, employ very simple and reliable operation and use minimum headroom.

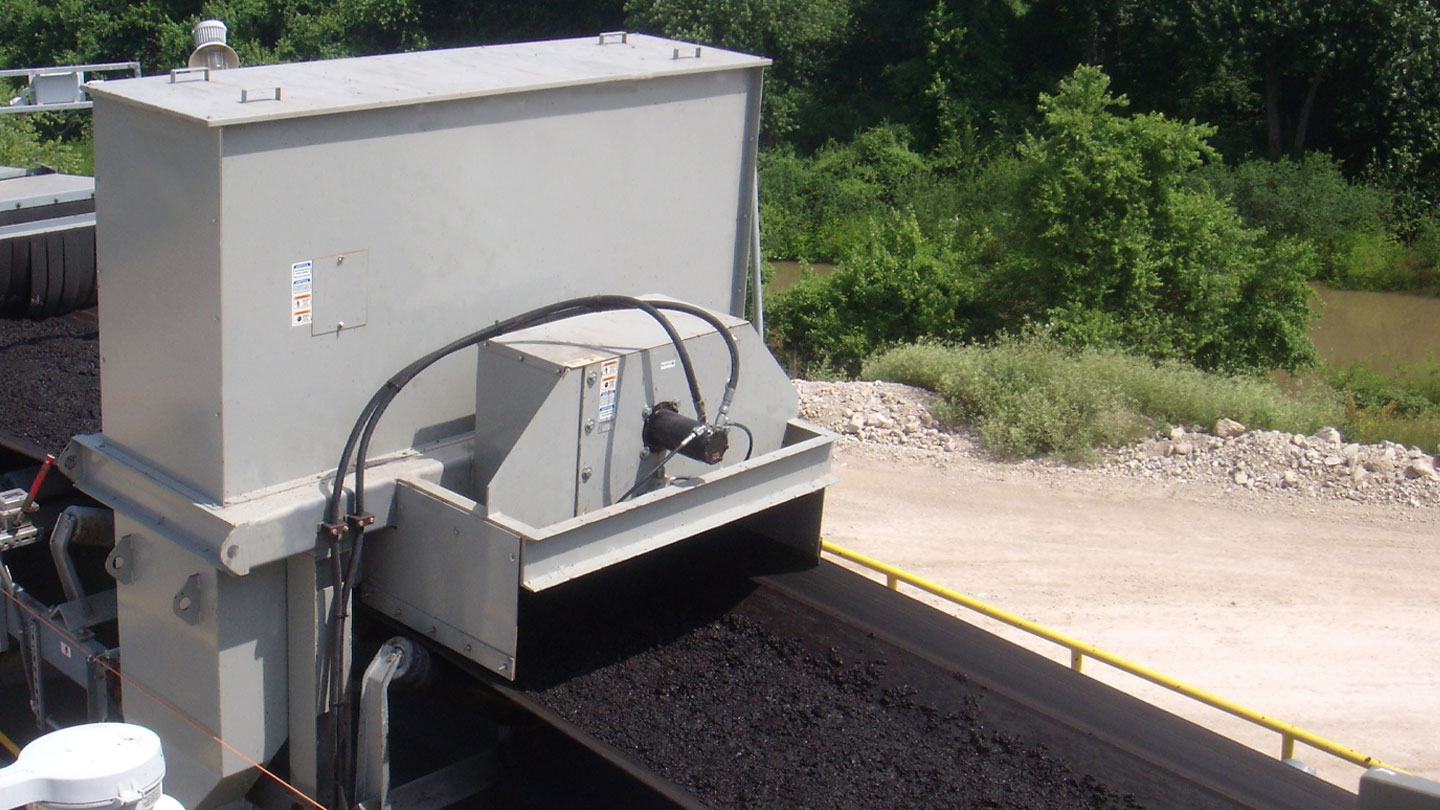

Mid-Belt Samplers

Model: RS

Mid-Belt Samplers

For aggregates, coal, limestone, minerals & wood chips.

The RS can be constructed to fit 18” to 60” wide conveying systems. When activated, the rotating scoop, with a built in adjustable and flexible wiper, obtains a sample at predetermined intervals without damaging the belt. The collected mid-belt sample, including fines, is then deposited into a gravity side chute for delivery to an InterSystems collection system. This sampler is fully assembled for ease of installation and meets ASTM D-2234 (Condition “B”.)

Pit Samplers

Models: PRT / HD-PRT

Pit Samplers

Samples fines, small or large particles & works with abrasive materials.

These samplers employ very simple and reliable operation and use minimum headroom. Mounting may be in chutes, hoppers, at belt end or head chutes. While fully extended, the sample tube rotates 270 degrees, taking a representative sample through the product stream. The sample tube then retracts out of the product stream, into the sampler housing and deposits the sample into the discharge. The sample tube can be driven pneumatically or hydraulically.

Liquid Samplers

Models: LF / HD-PP / PDP

Liquid Samplers

Liquid Industrial Samplers are appropriate for collecting samples from a wide viscosity range of free-flowing materials. They sample liquids in pipelines and tanks, powders, granules, and flakes. These models provide representative and repeatable samples, employ very simple and reliable operation and use minimum headroom.

Sample Collection Systems

Hopper Style or Jar Collection

Sample Collection System

With an automated collection system such as InterSystems' rotating indexing cabinet, you can receive and store samples virtually unattended. An adjustable timer is pre-set to determine the number of samples (or duration) per container. When it is time, the system automatically positions the sealed containers for the next filling. Typical models are 8, 16, 24 and 48 position with 2-quart containers or sample bags. Container size, type and quantity can be varied as required by application.

Samplers Index

  Grain
Biofuels Cement Chemical & Petrochemical Food & Feed Processing Mining & Minerals Pet Food Pulp & Paper Wood Products
Gravity Chute GP, GRE, GCE, GSS GRA, GRE, GSS, GRES, GCE, GS GRE, PS, HD-PRT, GRA, HD-PP GRE, GSS, PS, HD-PRT, GRA, GSS, PT GRA, GRE, GSS-U, PS, GP, HD-PRT, PTG GRE, GRES, PRT, GRA, HD-PRT GP, GRE, GCE, GSS, GSS-U PRT, HD-PRT

GSS, PRT, HD-PRT
Pneumatic   PS PS, PDP PS, PDP, PT, PTG PS, PT, PDP, PTG
HD-PP, PDP, PS PS, PT, PTG HD-PP PS, PT, PTG
Belt End ST (SLIDING TUBE), TD (TOP DRAW)   PRT, HD-PRT HD-PRT HD-PRT PRT, HD-PRT, HD-BD
  HD-PRT PRT, HD-PRT
Mid-Belt           RS   RS RS
Pit Sampler               HD-PRT
Liquid       LF LF
Collection System SCS SCS SCS SCS SCS SCS SCS SCS SCS
