flooring and supports
Bin Floor Systems
flooring and supports
Highlights
- Cut-Lok floors – 7″ wide planks – 12% opening to prevent restricted airflow
- NEW! Dura-Lok FD floors – 22 ga., 3.5″ wide double-plank design
- Dura-Lok HD floors – 20 ga., 3.5″ wide double-plank design
Dura-Lok FD Floor
INTRODUCING A NEW FLOORING OPTION FROM GSI
GSI is excited to announce the launch of our new Dura-Lok FD floor system, bringing enhanced aeration performance, improved bin clean-out, and an optional small grain perforation size to the farm market.
GOOD

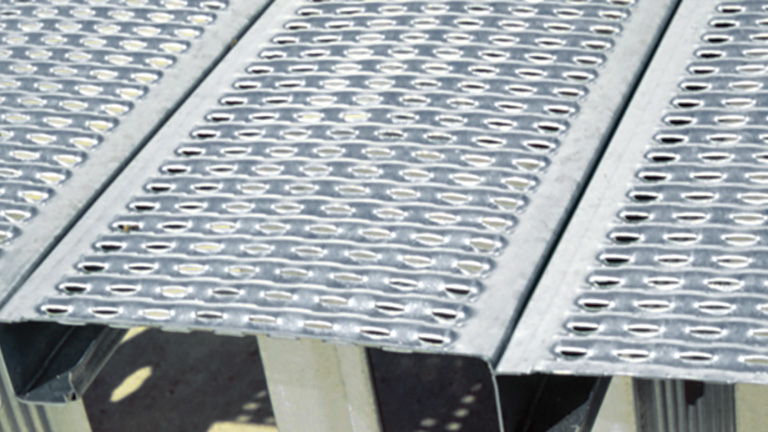

Cut-Lok Floor
GSI’s Cut-Lok floor employs a traditional 7″ plank width and crowned panel design to provide a cost-effective yet highly capable aeration floor. Lanced perforations provide a 12% open area, ensuring maximum airflow.
For Cut-Lok Floors

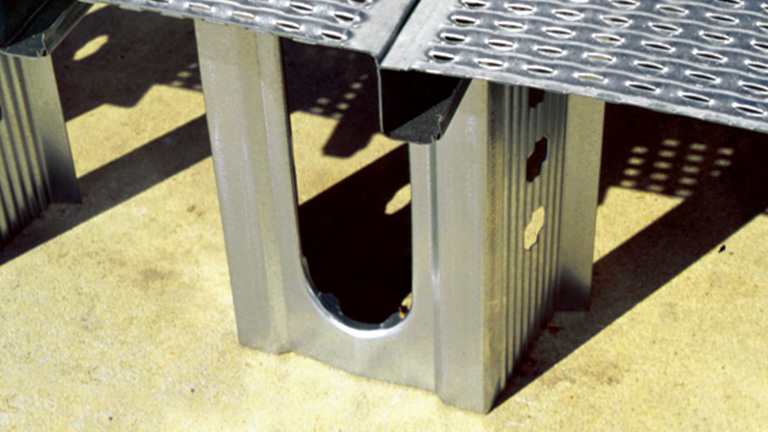

Grandstand Supports
A tried-and-true design, GSI’s Grandstand supports are stamped from structural-grade galvanized steel for superior strength and long service life. GSI Grandstand supports are paired with the Cut-Lok floor plank.
BETTER

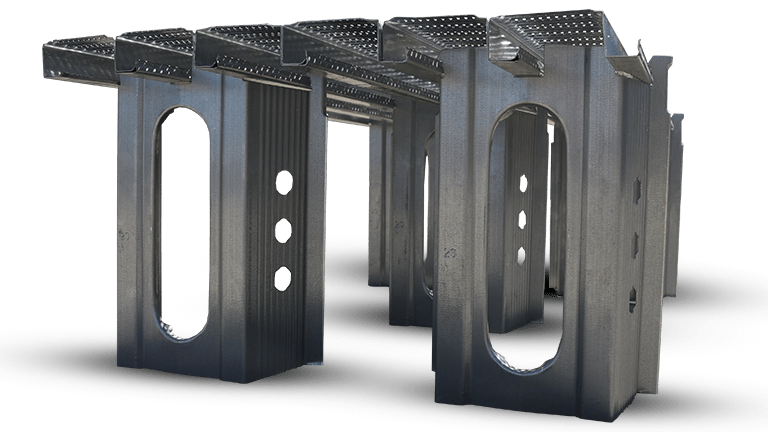

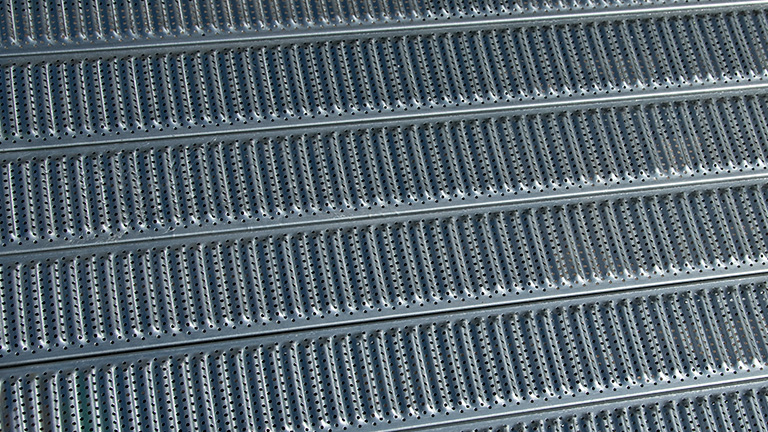

Dura-Lok FD floor
Dura-Lok FD features the same high-performance sectional profile as GSI’s existing Dura-Lok HD floor in a 22 ga. material to deliver a cost-effective solution for common on-farm storage bins. The flat-top planks are easy to sweep. Grandstand FD supports exclusively designed to pair with Dura-Lok FD, provide an installer-friendly design.
Dura-Lok FD is available in both standard 0.094” perforation, as well as small grain 0.050” perforation, giving broad applicability for nearly any commodity.
Designed For Dura-Lok FD

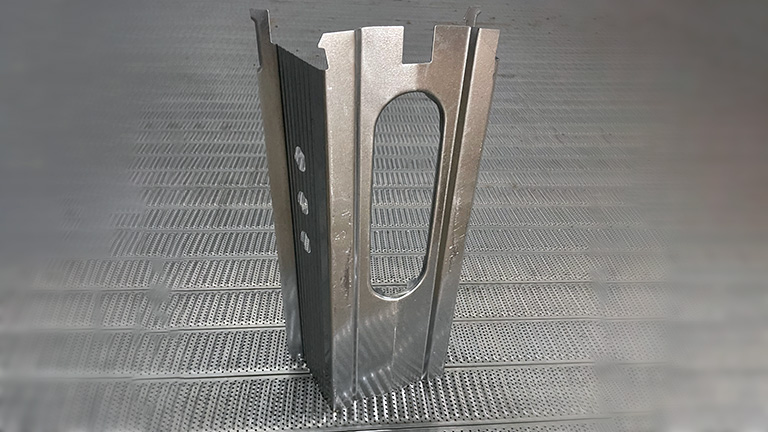

Grandstand FD Supports
Drawing upon the common design lineage of our standard Grandstand supports, the Grandstand FD has an added notch to support the 3.5″ plank profile of the Dura-Lok FD floor system, in an installer friendly design.
BEST

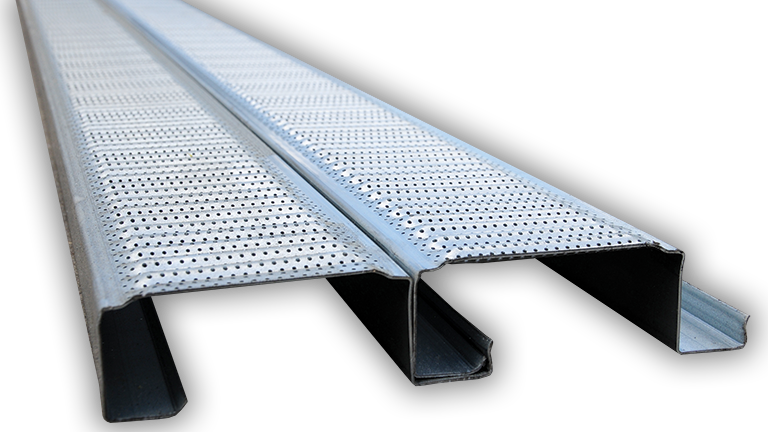

Dura-lok HD Floor
Dura-Lok HD’s galvanized 3.5″ sections and double-plank design create a strong, stable and durable floor. All splices are located under the flat-top floor surface to ensure a smooth top for sweeping. A unique locking system reduces movement.
Dura-Lok HD is available in both standard 0.094” perforation, as well as small grain 0.050” perforation. Available for both full and flush floor applications.
For Dura-Lok HD floors

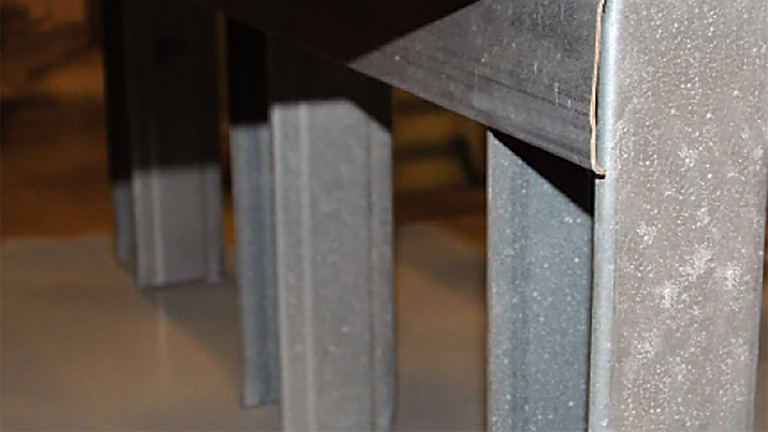

Monorail supports
Produced in continuous rail lengths from galvanized coil, the Monorail offers a simple snap-together design that offers extreme strength and pairs with our most capable Dura-Lok HD plank for demanding applications.
Specifations and applications
| Floor | Application (Wide Corr) | Material | Perforation Options | Plank Width | Supports |
|---|---|---|---|---|---|
| Cut-Lok | Bins up to 72′ Diameter, up to 77′ eave height* | 20 gauge | Lanced perforation, 12% opening | 7″ | Grandstand |
| Dura-Lok FD | Bins up to 60′ Diameter, up to 53′ eave height* | 22 gauge | 0.094” (standard), 0.050” (small grain) | Double 3.5″ | Grandstand FD |
| Dura-Lok HD | Bins up to 105′ Diameter, up to 90′ eave height* | 20 gauge | 0.094” (standard), 0.050” (small grain) | Double 3.5″ | Monorail |
* Maximum eave heights vary by diameter and are not available for all sizes.
