Paddle Sweeps

Heavy-Duty and High Capacity

Paddle Sweeps

Paddle Sweeps

Heavy-Duty and High Capacity

Highlights

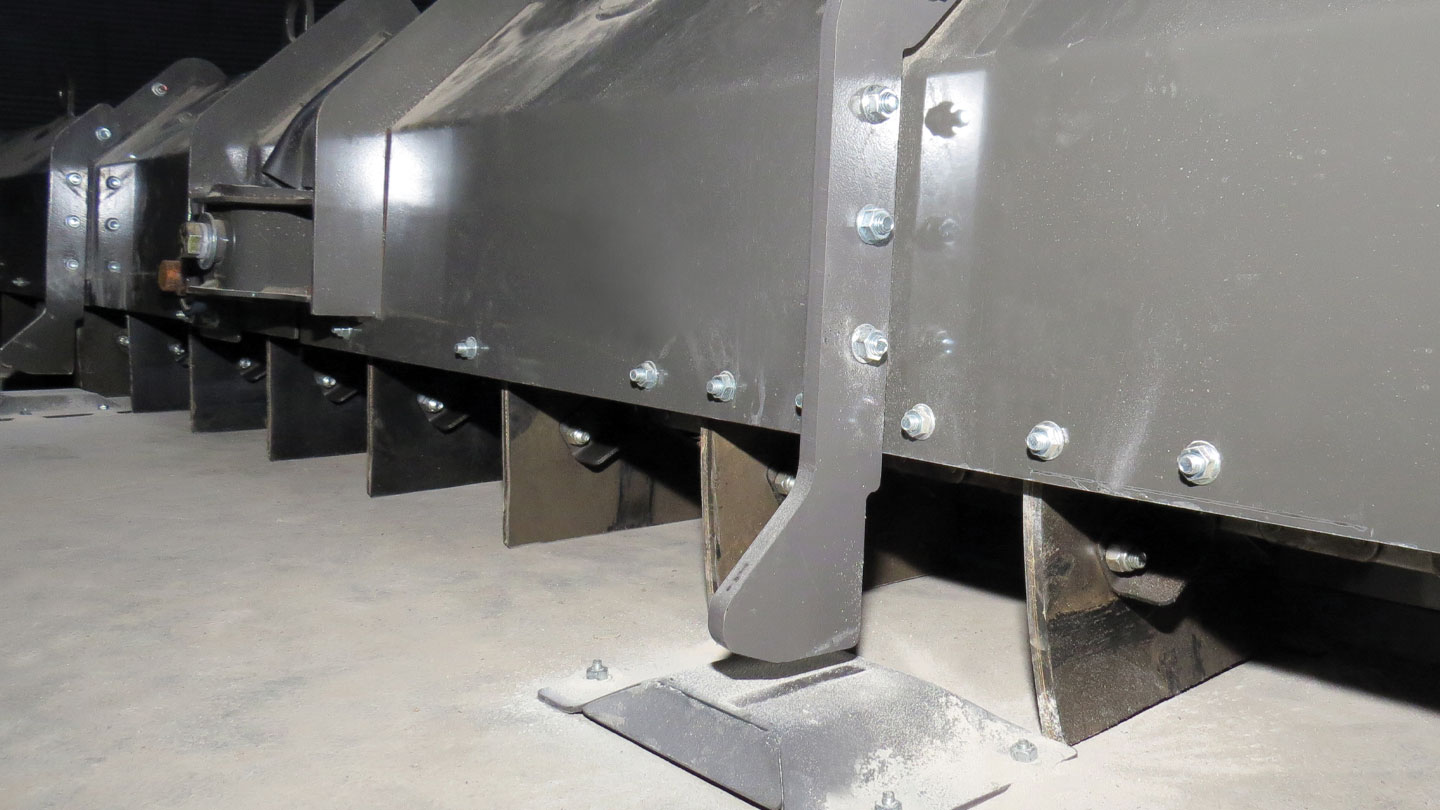

  • GSI Paddle Sweep uses flexible rubber paddles to gently and safely unload grain bins.
  • Available in three different models: Powered Farm Sweeps, Commercial and Heavy-Duty High Capacity.

Built to Perform

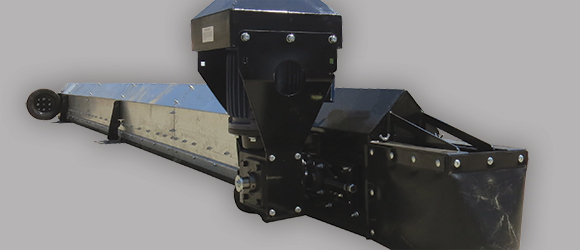

Powered Farm Sweep

Unloads up to 5,500 BPH (139.7 MTH)

Powered Farm Sweep

Designed for 15' to 60' (4.57-18.29 m) diameter bins with no existing power or screw conveyor unload. Heavy-duty paddle chain and explosion proof motor. Rubber drag helps clean the floor for minimal sweeping. Designed to be fully submersed in grain and can unbury itself from an avalanche. Does not plug or stall when overrunning the sweep.

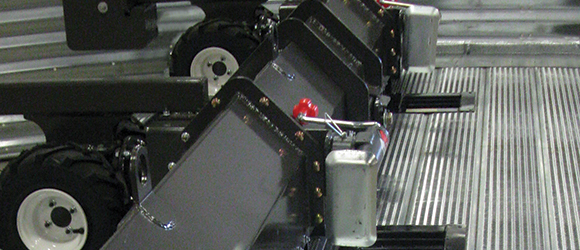

Commercial Paddle Sweep

Unloads up to 6,000 BPH (152.4 MTH)

Commercial Paddle Sweep

Designed for high capacity systems, GSI’s Commercial Paddle Sweep uses flexible rubber paddles to gently and safely unload 15' to 105' (4.57 to 32 m) diameter bins. Support stands allow for minimal entry once the sweep has been started. One 3-phase explosion-proof motor operates sweep. Simplified drive tractors push sweep around the bin. Available with either a pivot pin or collector ring with a start/stop control panel.

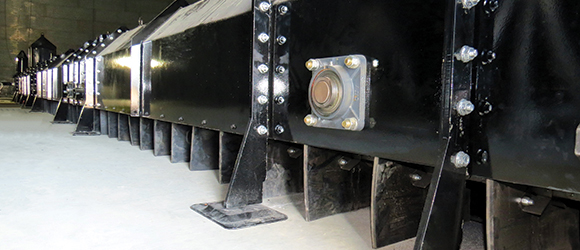

Heavy-duty High Capacity Paddle Sweep

Unloads up to 12,000 BPH (304.8 MTH)

Heavy-duty High Capacity Paddle Sweep

For larger capacity grain systems, GSI’s Heavy-Duty Paddle Sweep uses flexible rubber paddles to gently and safely unload grain in 72' to 105' (21.95 to 32 m) diameter bins. Support stands allow for minimal entry once the sweep has been started. One 3-phase explosion-proof motor operates sweep. Simplified drive tractors push sweep around the bin. Collector ring provides constant power to the sweep motor without having to move electrical cords with a start/stop control.

Product Comparison

Model Capacity Bin Diameter
Powered Farm up to 5,500 BPH (139.7 MTH) 15' to 60' (4.57-18.29 m)
Commercial up to 6,000 BPH (152.4 MTH) 15' to 105' (4.57 to 32 m)
Heavy-Duty High Capacity up to 12,000 BPH (304.8 MTH) 72' to 105' (21.95 to 32 m)
