EVO 50™ Grain Bins

Better Protection Through Smarter Design

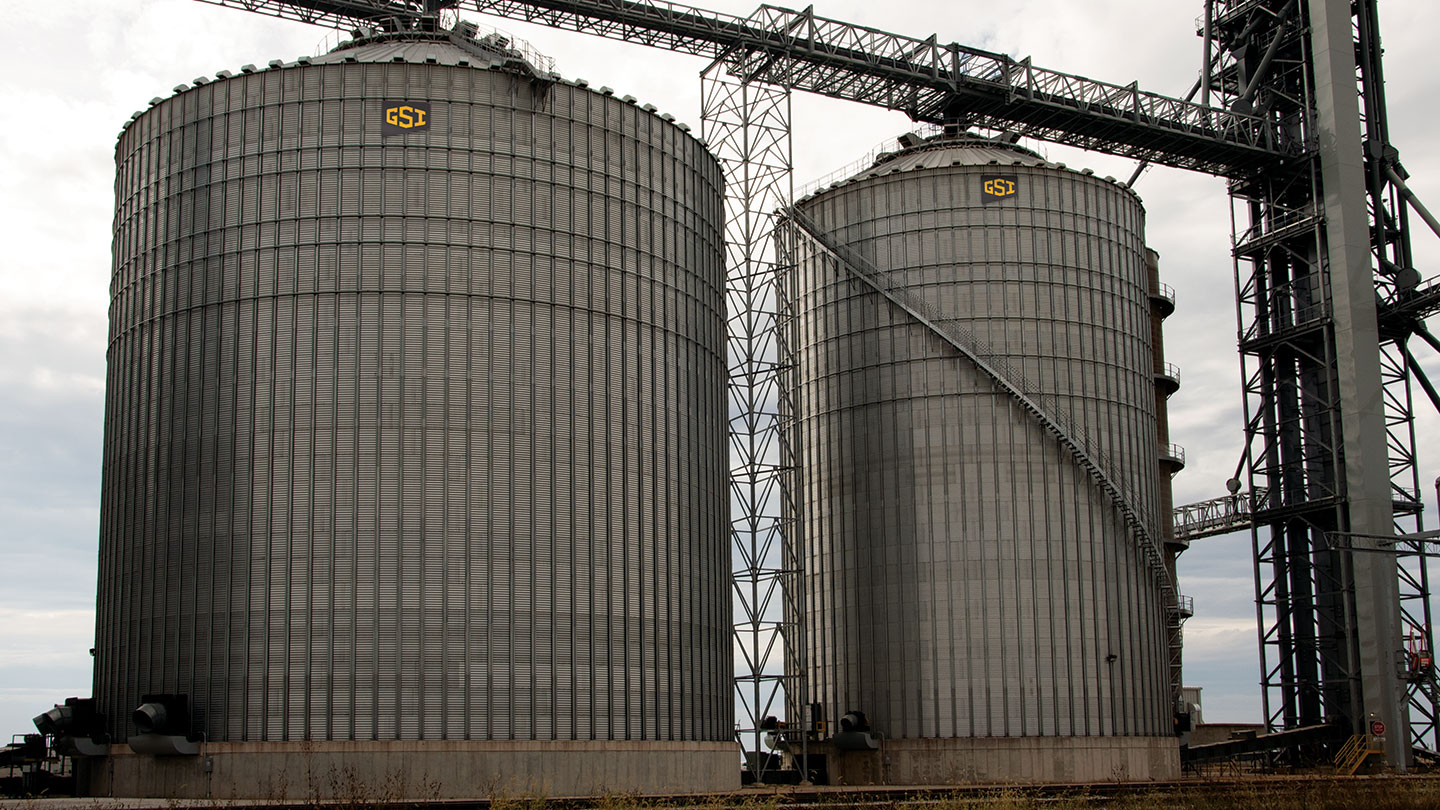

EVO-50 Grain Bins

EVO 50™ Grain Bins

Better Protection Through Smarter Design

Highlights

  • Optimized bolt pattern.
  • Interlaced laminated sheets.
  • Hardware with 4x corrosion protection and a water-tight seal.
  • Double-length sheets (on 90’+ dia.)

Introducing a Better Bin

EVO 50 Grain Bins

Take Control with Better Protection

You can’t afford post-harvest loss. That’s why the EVO 50 grain bin is engineered to keep the elements outside. So, you can earn more from what’s inside.

We’ve maximized strength at each connection and needed fewer bolts to do it. Water has less chance to get in. Our advanced sealing system keeps it out. Larger capacity equals even better protection with 50% fewer vertical seams.

Built to Perform

EVO 50 Bolt Pattern

Durability

Bolt Pattern

EVO 50 bins feature an optimized bolt pattern for fewer bolts and fewer holes. Hardware is even more durable with 4X corrosoin protection, and includes an advanced sealing system for a water-tight seal.

Interlaced Sheets

Strength

Interlaced Sheets

Interlaced laminated sheets maximize strength and keep water out.

Available on bin diameters 66' (20.12 m) and larger.

Double Length Sidewall Sheets

Innovation

Double Length Sidewall Sheets

Double length sidewall sheets reduce vertical seams and number of bolts by up 50%.

Available on bin diameters 90' (27.43 m) and larger.

Specifications

Model Diameter Range Ring Heights Stiffeners per Sheet Capacity Range (bu.) Capacity Range (MT)
EV24 15'-105' (4.57-32 m) 11 to 30 2 6,000-730,000 152.4-18542.0
EV34 18'-156' (5.49-47.55 m)
11 to 30 3 8,800-2,000,000 223.52-50800.0

Click + to expand specifications for each diameter.

15' Diameter / 5,871-6,964 bu.

Ring Height Stiffeners per Sheet Eave Height Peak Height Level Bu. Capacity 12" Plenum Peaked Bu. Capacity 12" Plenum Max Bu. Capacity Capacity (Cubic Feet) Metric Tons 800 kg/m3 Metric Tons 721 kg/m3 Metric Tons 640 kg/m3 Eave Height (Meters) Peak Height (Meters) Max. Capacity (Cubic Meters)
11 2 40’5” 44’9” 5,871 6,068 6,217 7,297 175 158 140 12.32 13.73 207
12 2 44’1” 48’5” 6,418 6,615 6,764 7,938 191 172 152 13.44 14.86 225
13 2 47'9" 52'1" 6,964 7,161 7,310 8,579 206 186 165 14.55 15.99 243

18' Diameter / 8,455-10,028 bu.

Ring Height Stiffeners per Sheet Eave Height Peak Height Level Bu. Capacity 12" Plenum Peaked Bu. Capacity 12" Plenum Max Bu. Capacity Capacity (Cubic Feet) Metric Tons 800 kg/m3 Metric Tons 721 kg/m3 Metric Tons 640 kg/m3 Eave Height (Meters) Peak Height (Meters) Max. Capacity (Cubic Meters)
11 2 or 3 40’5” 45’7” 8,455 8,795 9,010 10,574 254 229 203 12.32 13.91 299
12 2 or 3 44’1” 49’3” 9,241 9,582 9,796 11,497 276 249 221 13.44 15.03 326
13 2 or 3 47'9" 52'11" 10,028 10,369 10,583 12,420 298 269 239 14.55 16.15 352

21' Diameter / 11,508-21,149 bu.

Ring Height Stiffeners per Sheet Eave Height Peak Height Level Bu. Capacity 12" Plenum Peaked Bu. Capacity 12" Plenum Max Bu. Capacity Capacity (Cubic Feet) Metric Tons 800 kg/m3 Metric Tons 721 kg/m3 Metric Tons 640 kg/m3 Eave Height (Meters) Peak Height (Meters) Max. Capacity (Cubic Meters)
11 2 or 3 40’5” 46’6” 11,508 12,048 12,340 14,483 348 313 278 12.32 14.19 410
12 2 or 3 44’1” 50’2” 12,579 13,119 13,411 15,739 378 341 302 13.44 15.31 446
13 2 or 3 47'9" 53'10" 13,649 14,190 14,482 16,996 408 368 327 14.55 16.43 481
14 2 or 3 51'5" 57'6" 14,719 15,261 15,553 18,252 438 395 351 15.66 17.55 517
15 2 or 3 55'1" 61'2" 15,789 16,332 16,623 19,509 468 422 375 16.77 18.67 552
16 2 or 3 58'9" 64'10" 16,859 17,403 17,694 20,766 499 449 399 17.88 19.79 588
17 2 or 3 62'5" 68'6" 17,929 18,474 18,765 22,022 529 477 423 18.99 20.91 624
18 2 or 3 66'1" 72'2" 18,999 19,545 19,836 23,279 559 504 447 20.10 22.03 659
19 2 or 3 69'9" 75'10" 20,069 20,616 20,906 24,535 589 531 471 21.21 23.15 695
20 2 or 3 73'5" 79'6" 21,139 21,687 21,977 25,792 619 558 495 22.32 24.27 730

24' Diameter / 15,031-27,621 bu.

Ring Height Stiffeners per Sheet Eave Height Peak Height Level Bu. Capacity 12" Plenum Peaked Bu. Capacity 12" Plenum Max Bu. Capacity Capacity (Cubic Feet) Metric Tons 800 kg/m3 Metric Tons 721 kg/m3 Metric Tons 640 kg/m3 Eave Height (Meters) Peak Height (Meters) Max. Capacity (Cubic Meters)
11 2 or 3 40’5” 47’4” 15,031 15,838 16,219 19,034 457 412 366 12.32 14.44 539
12 2 or 3 44’1” 51’0” 16,429 17,236 17,618 20,676 496 447 397 13.44 15.56 585
13 2 or 3 47'9" 54'8" 17,828 18,635 19,016 22,317 536 483 429 14.55 16.68 632
14 2 or 3 51'5" 58'4" 19,227 20,034 20,415 23,958 575 518 460 15.66 17.80 678
15 2 or 3 55'1" 62'0" 20,626 21,433 21,813 25,600 615 554 492 16.77 18.92 725
16 2 or 3 58'9" 65'8" 22,025 22,832 23,212 27,241 654 590 523 17.88 20.04 771
17 2 or 3 62'5" 69'4" 23,424 24,231 24,610 28,882 694 625 555 18.99 21.16 818
18 2 or 3 66'1" 73'0" 24,823 25,630 26,009 30,523 733 661 586 20.10 22.28 864
19 2 or 3 69'9" 76'8" 26,222 27,029 27,407 32,165 772 696 618 21.21 23.40 911
20 2 or 3 73'5" 80'4" 27,621 28,428 28,806 33,806 812 732 649 22.32 24.52 957

27' Diameter / 19,023-38,493 bu.

Ring Height Stiffeners per Sheet Eave Height Peak Height Level Bu. Capacity 12" Plenum Peaked Bu. Capacity 12" Plenum Max Bu. Capacity Capacity (Cubic Feet) Metric Tons 800 kg/m3 Metric Tons 721 kg/m3 Metric Tons 640 kg/m3 Eave Height (Meters) Peak Height (Meters) Max. Capacity (Cubic Meters)
11 2 or 3 40’5” 48’3” 19,023 20,172 20,655 24,240 582 525 466 12.32 14.70 686
12 2 or 3 44’1” 51’11” 20,793 21,942 22,425 26,317 632 570 506 13.44 15.82 745
13 2 or 3 47'9" 55'7" 22,563 23,712 24,195 28,395 682 614 545 14.55 16.93 804
14 2 or 3 51'5" 59'3" 24,333 25,482 25,965 30,472 732 659 585 15.68 18.05 863
15 2 or 3 55'1" 62'11" 26,103 27,252 27,735 32,549 782 704 625 16.80 19.17 922
16 2 or 3 58'9" 66'7" 27,873 29,022 29,505 34,626 831 749 665 17.92 20.29 981
17 2 or 3 62'5" 70'3" 29,643 30,792 31,275 36,704 881 794 705 19.04 21.40 1,039
18 2 or 3 66'1" 73'11" 31,413 32,562 33,045 38,781 931 839 745 20.16 22.52 1,098
19 2 or 3 69'9" 77'7" 33,183 34,332 34,815 40,858 981 884 785 21.28 23.64 1,157
20 2 or 3 73'5" 81'3" 34,953 36,102 36,585 42,935 1,031 929 825 22.40 24.76 1,216
21 2 or 3 77'1" 84'11" 36,723 37,872 38,355 45,013 1,081 974 865 23.52 25.87 1,275
22 2 or 3 80'10" 88'7" 38,493 39,642 40,125 47,090 1,131 1,019 905 24.64 26.99 1,333

30' Diameter / 23,485-65,002 bu.

Ring Height Stiffeners per Sheet Eave Height Peak Height Level Bu. Capacity 12" Plenum Peaked Bu. Capacity 12" Plenum Max Bu. Capacity Capacity (Cubic Feet) Metric Tons 800 kg/m3 Metric Tons 721 kg/m3 Metric Tons 640 kg/m3 Eave Height (Meters) Peak Height (Meters) Max. Capacity (Cubic Meters)
11 2 or 3 40’5” 49’2” 23,485 25,061 25,657 30,111 723 652 578 12.32 14.93 853
12 2 or 3 44’1” 52’10” 25,671 27,247 27,843 32,676 785 707 628 13.44 16.04 925
13 2 or 3 47'9" 56’6" 27,856 29,432 30,028 35,240 846 763 677 14.56 17.15 998
14 2 or 3 51'5" 60'2" 30,041 31,617 32,213 37,805 908 818 726 15.68 18.26 1,071
15 2 or 3 55'1" 63'10" 32,226 33,802 34,398 40,369 969 874 776 16.80 19.37 1,143
16 2 or 3 58'9" 67'6" 34,411 35,987 36,583 42,934 1,031 929 825 17.92 20.48 1,216
17 2 or 3 62'5" 71'2" 36,597 38,173 38,769 45,498 1,092 985 874 19.04 21.59 1,288
18 2 or 3 66'1" 74'10" 38,782 40,358 40,954 48,063 1,154 1,040 923 20.16 22.70 1,361
19 2 or 3 69'9" 78'6" 40,967 42,543 43,139 50,627 1,216 1,096 973 21.28 23.81 1,434
20 2 or 3 73'5" 82'2" 43,152 44,728 45,324 53,192 1,277 1,151 1,022 22.40 24.92 1,506
21 2 or 3 77'1" 85'10" 45,337 46,913 47,509 55,756 1,339 1,207 1,071 23.52 26.03 1,579
22 2 or 3 80'10" 89'6" 47,522 49,098 49,695 58,321 1,400 1,262 1,120 24.64 27.14 1,651
23 2 or 3 84'6" 93'2" 49,707 51,283 51,880 60,885 1,462 1,318 1,170 25.76 28.25 1,724
24 2 or 3 88'1" 96'10" 51,892 53,468 54,065 63,450 1,524 1,373 1,219 26.88 29.36 1,797
25 2 or 3 91'10" 100'6" 54,077 55,653 56,250 66,014 1,585 1,429 1,268 28.00 30.47 1,869
26 2 or 3 95'5" 104'2" 56,262 57,838 58,435 68,579 1,647 1,484 1,317 29.12 31.58 1,942
27 2 or 3 99'1" 107'10" 58,447 60,023 60,620 71,143 1,708 1,540 1,367 30.24 32.69 2,015
28 2 or 3 102'10" 111'6" 60,632 62,208 62,806 73,708 1,770 1,595 1,416 31.36 33.80 2,087
29 2 or 3 106'5" 115'2" 62,817 64,393 64,991 76,272 1,831 1,651 1,465 32.48 34.91 2,160
30 2 or 3 110'1" 118'10" 65,002 66,578 67,176 78,837 1,893 1,706 1,515 33.60 36.02 2,232

33' Diameter / 28,417-78,654 bu.

Ring Height Stiffeners per Sheet Eave Height Peak Height Level Bu. Capacity 12" Plenum Peaked Bu. Capacity 12" Plenum Max Bu. Capacity Capacity (Cubic Feet) Metric Tons 800 kg/m3 Metric Tons 721 kg/m3 Metric Tons 640 kg/m3 Eave Height (Meters) Peak Height (Meters) Max. Capacity (Cubic Meters)
11 2 or 3 40’5” 50’0” 28,417 30,515 31,236 36,658 880 793 704 12.32 15.33 1,038
12 2 or 3 44’1” 53’8” 31,061 33,159 33,880 39,761 955 860 764 13.44 16.46 1,126
13 2 or 3 47'9" 57’4” 33,706 35,803 36,524 42,864 1,029 928 823 14.56 17.59 1,214
14 2 or 3 51'5" 61'0" 36,350 38,447 39,168 45,967 1,104 995 883 15.68 18.72 1,302
15 2 or 3 55'1" 64'8" 38,994 41,091 41,812 49,070 1,178 1,062 943 16.80 19.85 1,390
16 2 or 3 58'9" 68'4" 41,638 43,735 44,457 52,174 1,253 1,129 1,002 17.92 20.98 1,477
17 2 or 3 62'5" 72'0" 44,282 46,380 47,101 55,277 1,327 1,196 1,062 19.04 22.11 1,565
18 2 or 3 66'1" 75'8" 46,926 49,024 49,745 58,380 1,402 1,263 1,122 20.16 23.24 1,653
19 2 or 3 69'9" 79'4" 49,570 51,668 52,389 61,483 1,476 1,331 1,181 21.28 24.37 1,741
20 2 or 3 73'5" 83'0" 52,214 54,312 55,033 64,586 1,551 1,398 1,241 22.40 25.50 1,829
21 2 or 3 77'1" 86'8" 54,858 56,956 57,677 67,689 1,625 1,465 1,300 23.52 26.63 1,917
22 2 or 3 80'10" 90'4" 57,502 59,600 60,321 70,792 1,700 1,532 1,360 24.64 27.76 2,005
23 2 or 3 84'6" 94'0" 60,146 62,244 62,965 73,895 1,774 1,599 1,420 25.76 28.89 2,092
24 2 or 3 88'1" 97'8" 62,790 64,888 65,609 76,998 1,849 1,666 1,479 26.88 30.02 2,180
25 2 or 3 91'10" 101'4" 65,434 67,532 68,253 80,101 1,923 1,733 1,539 28.00 31.15 2,268
26 2 or 3 95'5" 105'0" 68,078 70,176 70,897 83,204 1,998 1,801 1,598 29.12 32.28 2,356
27 2 or 3 99'1" 108'8" 70,722 72,820 73,541 86,307 2,072 1,868 1,658 30.24 33.41 2,444
28 2 or 3 102'10" 112'4" 73,366 75,464 76,186 89,410 2,147 1,935 1,718 31.36 34.54 2,532
29 2 or 3 106'5" 116'0" 76,010 78,108 78,830 92,513 2,221 2,002 1,777 32.48 35.67 2,620
30 2 or 3 110'1" 119'8" 78,654 80,752 81,474 95,616 2,296 2,069 1,837 33.60 36.80 2,708

36' Diameter / 33,819-93,609 bu.

Ring Height Stiffeners per Sheet Eave Height Peak Height Level Bu. Capacity 12" Plenum Peaked Bu. Capacity 12" Plenum Max Bu. Capacity Capacity (Cubic Feet) Metric Tons 800 kg/m3 Metric Tons 721 kg/m3 Metric Tons 640 kg/m3 Eave Height (Meters) Peak Height (Meters) Max. Capacity (Cubic Meters)
11 2 or 3 40’5” 50’11” 33,819 36,542 37,401 43,893 1,054 950 843 12.32 15.49 1,243
12 2 or 3 44’1” 54’7” 36,966 39,689 40,547 47,586 1,143 1,030 914 13.44 16.61 1,347
13 2 or 3 47'9" 58’3” 40,112 42,836 43,694 51,279 1,231 1,110 985 14.56 17.73 1,452
14 2 or 3 51'5" 61'11" 43,259 45,982 46,841 54,971 1,320 1,190 1,056 15.68 18.85 1,557
15 2 or 3 55'1" 65'7" 46,406 49,129 49,987 58,664 1,409 1,270 1,127 16.80 19.96 1,661
16 2 or 3 58'9" 69'3" 49,552 52,276 53,134 62,357 1,497 1,349 1,198 17.92 21.08 1,766
17 2 or 3 62'5" 72'11" 52,699 55,422 56,281 66,050 1,586 1,429 1,269 19.04 22.20 1,870
18 2 or 3 66'1" 76'7" 55,846 58,569 59,427 69,743 1,675 1,509 1,340 20.16 23.32 1,975
19 2 or 3 69'9" 80'3" 58,992 61,716 62,574 73,436 1,763 1,589 1,411 21.28 24.44 2,079
20 2 or 3 73'5" 83'11" 62,139 64,862 65,721 77,129 1,852 1,669 1,482 22.40 25.56 2,184
21 2 or 3 77'1" 87'7" 65,286 68,009 68,867 80,822 1,941 1,749 1,553 23.52 26.68 2,289
22 2 or 3 80'10" 91'3" 68,433 71,156 72,014 84,515 2,029 1,829 1,624 24.64 27.80 2,393
23 2 or 3 84'6" 94'11" 71,580 74,303 75,161 88,207 2,118 1,909 1,695 25.76 28.92 2,498
24 2 or 3 88'1" 98'7" 74,727 77,450 78,307 91,900 2,207 1,989 1,765 26.88 30.04 2,602
25 2 or 3 91'10" 102'3" 77,874 80,597 81,454 95,593 2,295 2,069 1,836 28.00 31.16 2,707
26 2 or 3 95'5" 105'11" 81,021 83,744 84,601 99,286 2,384 2,149 1,907 29.12 32.28 2,811
27 2 or 3 99'1" 109'7" 84,168 86,891 87,747 102,979 2,473 2,229 1,978 30.24 33.40 2,916
28 2 or 3 102'10" 113'3" 87,315 90,038 90,894 106,672 2,561 2,309 2,049 31.36 34.52 3,021
29 2 or 3 106'5" 116'11" 90,462 93,185 94,041 110,365 2,650 2,388 2,120 32.48 35.64 3,125
30 2 or 3 110'1" 120'7" 93,609 96,332 97,187 114,058 2,739 2,468 2,191 33.60 36.76 3,230

42' Diameter / 46,031-127,408 bu.

Ring Height Stiffeners per Sheet Eave Height Peak Height Level Bu. Capacity 12" Plenum Peaked Bu. Capacity 12" Plenum Max Bu. Capacity Capacity (Cubic Feet) Metric Tons 800 kg/m3 Metric Tons 721 kg/m3 Metric Tons 640 kg/m3 Eave Height (Meters) Peak Height (Meters) Max. Capacity (Cubic Meters)
11* 2 or 3 40’5” 52'-8" 46,031 50,356 51,524 60,468 1,452 1,309 1,162 12.32 16.04 1,712
12* 2 or 3 44’1” 56'4" 50,314 54,639 55,807 65,494 1,573 1,417 1,258 13.44 17.15 1,855
13* 2 or 3 47'9" 60'0" 54,597 58,922 60,090 70,521 1,693 1,526 1,355 14.56 18.27 1,997
14 2 or 3 51'5" 62'8" 58,880 63,205 64,373 75,547 1,814 1,635 1,451 15.68 19.08 2,139
15 2 or 3 55'1" 66'4" 63,163 67,488 68,656 80,574 1,935 1,744 1,548 16.79 20.20 2,282
16 2 or 3 58'9" 70'0" 67,446 71,771 72,939 85,600 2,055 1,852 1,644 17.91 21.32 2,424
17 2 or 3 62'5" 73'8" 71,729 76,054 77,222 90,627 2,176 1,961 1,741 19.02 22.44 2,566
18 2 or 3 66'1" 77'4" 76,012 80,337 81,505 95,653 2,297 2,070 1,838 20.14 23.55 2,709
19 2 or 3 69'9" 81'0" 80,295 84,620 85,788 100,679 2,417 2,179 1,934 21.26 24.67 2,851
20 2 or 3 73'5" 84'8" 84,578 88,903 90,071 105,706 2,538 2,288 2,031 22.38 25.79 2,993
21 2 or 3 77'1" 88'4" 88,861 93,186 94,354 110,732 2,659 2,396 2,127 23.50 26.91 3,136
22 2 or 3 80'10" 92'0" 93,144 97,469 98,637 115,759 2,780 2,505 2,224 24.58 28.02 3,278
23 2 or 3 84'5" 96'8" 97,427 101,752 102,920 120,785 2,900 2,614 2,320 25.69 29.14 3,420
24 2 or 3 88'1" 99'4" 101,710 106,035 107,203 125,812 3,021 2,723 2,417 26.80 30.26 3,563
25 2 or 3 91'10" 103'0" 105,993 110,318 111,486 130,838 3,142 2,831 2,513 27.91 31.38 3,705
26 2 or 3 95'5" 106'8" 110,276 114,601 115,769 135,864 3,262 2,940 2,610 29.02 32.49 3,847
27 2 or 3 99'1" 110'4" 114,559 118,884 120,052 140,891 3,383 3,049 2,707 30.13 33.61 3,990
28 2 or 3 102'10" 114'0" 118,842 123,167 124,335 145,917 3,504 3,158 2,803 31.24 34.73 4,132
29 2 or 3 106'5" 117'8" 123,125 127,450 128,618 150,944 3,624 3,267 2,900 32.35 35.85 4,274
30 2 or 3 110'1" 121'4" 127,408 131,733 132,901 155,970 3,745 3,375 2,996 33.46 36.96 4,417

*6K shown for 10K subtract 12 inches

48' Diameter / 60,123-166,419 bu.

Ring Height Stiffeners per Sheet Eave Height Peak Height Level Bu. Capacity 12" Plenum Peaked Bu. Capacity 12" Plenum Max Bu. Capacity Capacity (Cubic Feet) Metric Tons 800 kg/m3 Metric Tons 721 kg/m3 Metric Tons 640 kg/m3 Eave Height (Meters) Peak Height (Meters) Max. Capacity (Cubic Meters)
11* 2 or 3 40’5” 54'5" 60,123 66,578 68,104 79,925 1,919 1,730 1,535 12.32 16.57 2,263
12* 2 or 3 44’1” 58'1" 65,717 72,172 73,698 86,491 2,077 1,872 1,662 13.44 17.69 2,449
13* 2 or 3 47'9" 61'9" 71,311 77,766 79,292 93,056 2,234 2,014 1,788 14.56 18.81 2,635
14 2 or 3 51'5" 64'5" 76,905 83,360 84,886 99,621 2,392 2,156 1,914 15.68 19.63 2,821
15 2 or 3 55'1" 68'1" 82,499 88,954 90,480 106,186 2,550 2,298 2,040 16.79 20.74 3,007
16 2 or 3 58'9" 71'9" 88,093 94,548 96,074 112,751 2,707 2,440 2,166 17.91 21.86 3,193
17 2 or 3 62'5" 75'5" 93,687 100,143 101,668 119,316 2,865 2,582 2,292 19.02 22.98 3,379
18 2 or 3 66'1" 79'1" 99,281 105,737 107,262 125,881 3,023 2,724 2,418 20.14 24.10 3,565
19 2 or 3 69'9" 82'9" 104,875 111,331 112,856 132,447 3,180 2,866 2,544 21.26 25.22 3,750
20 2 or 3 73'5" 86'5" 110,469 116,925 118,451 139,012 3,338 3,008 2,671 22.38 26.33 3,936
21 2 or 3 77'1" 90'1" 116,064 122,519 124,045 145,577 3,496 3,150 2,797 23.50 27.45 4,122
22 2 or 3 80'10" 93'9" 121,659 128,113 129,639 152,142 3,653 3,293 2,923 24.58 28.57 4,308
23 2 or 3 84'5" 97'5" 127,254 133,707 135,233 158,707 3,811 3,435 3,049 25.69 29.69 4,494
24 2 or 3 88'1" 101'1" 132,849 139,301 140,827 165,272 3,968 3,577 3,175 26.80 30.80 4,680
25 2 or 3 91'10" 104'9" 138,444 144,895 146,421 171,837 4,126 3,719 3,301 27.91 31.92 4,866
26 2 or 3 95'5" 108'5" 144,039 150,489 152,015 178,403 4,284 3,861 3,427 29.02 33.04 5,052
27 2 or 3 99'1" 112'1" 149,634 156,083 157,609 184,968 4,441 4,003 3,553 30.13 34.16 5,238
28 2 or 3 102'10" 115'9" 155,229 161,677 163,203 191,533 4,599 4,145 3,679 31.24 35.27 5,424
29 2 or 3 106'5" 119'5" 160,824 167,271 168,797 198,098 4,757 4,287 3,806 32.35 36.39 5,610
30 2 or 3 110'1" 123'1" 166,419 172,865 174,391 204,663 4,914 4,429 3,932 33.46 37.51 5,795

*6K shown for 10K subtract 12 inches

54' Diameter / 76,093-210,613 bu.

Ring Height Stiffeners per Sheet Eave Height Peak Height Level Bu. Capacity 12" Plenum Peaked Bu. Capacity 12" Plenum Max Bu. Capacity Capacity (Cubic Feet) Metric Tons 800 kg/m3 Metric Tons 721 kg/m3 Metric Tons 640 kg/m3 Eave Height (Meters) Peak Height (Meters) Max. Capacity (Cubic Meters)
11 2 or 3 40’5” 54'9" 76,093 85,284 87,215 102,354 2,458 2,215 1,966 12.32 16.68 2,898
12 2 or 3 44’1” 58'5" 83,173 92,364 94,295 110,663 2,657 2,395 2,126 13.44 17.80 3,134
13 2 or 3 47'9" 62'1" 90,253 99,444 101,375 118,972 2,857 2,575 2,286 14.56 18.92 3,369
14 2 or 3 51'5" 65'9" 97,333 106,524 108,455 127,281 3,056 2,755 2,445 15.68 20.03 3,604
15 2 or 3 55'1" 69'5" 104,413 113,604 115,535 135,590 3,256 2,934 2,605 16.81 21.15 3,839
16 2 or 3 58'9" 73'1" 111,493 120,684 122,615 143,899 3,455 3,114 2,764 17.92 22.27 4,075
17 2 or 3 62'5" 76'9" 118,573 127,764 129,695 152,208 3,655 3,294 2,924 19.03 23.39 4,310
18 2 or 3 66'1" 80'5" 125,653 134,844 136,775 160,517 3,854 3,474 3,084 20.14 24.50 4,545
19 2 or 3 69'9" 84'1" 132,733 141,924 143,855 168,826 4,054 3,654 3,243 21.25 25.62 4,781
20 2 or 3 73'5" 87'9" 139,813 149,004 150,935 177,135 4,253 3,833 3,403 22.36 26.74 5,016
21 2 or 3 77'1" 91'5" 146,893 156,084 158,015 185,444 4,453 4,013 3,563 23.47 27.86 5,251
22 2 or 3 80'10" 95'1" 153,973 163,164 165,095 193,753 4,652 4,193 3,722 24.58 28.97 5,486
23 2 or 3 84'5" 98'9" 161,053 170,244 172,175 202,062 4,852 4,373 3,882 25.69 30.09 5,722
24 2 or 3 88'1" 102'5" 168,133 177,324 179,255 210,371 5,051 4,553 4,041 26.80 31.21 5,957
25 2 or 3 91'10" 106'1" 175,213 184,404 186,335 218,680 5,251 4,732 4,201 27.91 32.33 6,192
26 2 or 3 95'5" 109'9" 182,293 191,484 193,415 226,989 5,450 4,912 4,361 29.02 33.45 6,428
27 2 or 3 99'1" 113'5" 189,373 198,564 200,495 235,298 5,650 5,092 4,520 30.13 34.56 6,663
28 2 or 3 102'10" 117'1" 196,453 205,644 207,575 243,607 5,849 5,272 4,680 31.24 35.68 6,898
29 2 or 3 106'5" 120'9" 203,533 212,724 214,655 251,916 6,049 5,452 4,839 32.35 36.80 7,133
30 2 or 3 110'1" 124'5" 210,613 219,804 221,735 260,225 6,248 5,632 4,999 33.46 37.92 7,369

60' Diameter / 93,942-260,009 bu.

Ring Height Stiffeners per Sheet Eave Height Peak Height Level Bu. Capacity 12" Plenum Peaked Bu. Capacity 12" Plenum Max Bu. Capacity Capacity (Cubic Feet) Metric Tons 800 kg/m3 Metric Tons 721 kg/m3 Metric Tons 640 kg/m3 Eave Height (Meters) Peak Height (Meters) Max. Capacity (Cubic Meters)
11 2 or 3 40’5” 56'6" 93,942 106,550 108,934 127,843 3,070 2,767 2,456 12.32 17.22 3,620
12 2 or 3 44’1” 60'2" 102,682 115,291 117,674 138,101 3,316 2,989 2,653 13.44 18.34 3,911
13 2 or 3 47'9" 63'10" 111,423 124,031 126,415 148,359 3,562 3,211 2,850 14.56 19.46 4,201
14 2 or 3 51'5" 67'6" 120,164 132,772 135,156 158,617 3,809 3,433 3,047 15.70 20.58 4,492
15 2 or 3 55'1" 71'2" 128,905 141,513 143,897 168,875 4,055 3,655 3,244 16.81 21.69 4,782
16 2 or 3 58'9" 74'10" 137,645 150,254 152,638 179,133 4,301 3,877 3,441 17.93 22.81 5,072
17 2 or 3 62'5" 78'6" 146,386 158,994 161,378 189,391 4,548 4,099 3,638 19.03 23.93 5,363
18 2 or 3 66'1" 82'2" 155,127 167,735 170,119 199,649 4,794 4,321 3,835 20.14 25.05 5,653
19 2 or 3 69'9" 85'10" 163,868 176,476 178,860 209,907 5,040 4,543 4,032 21.25 26.16 5,944
20 2 or 3 73'5" 89'6" 172,609 185,217 187,601 220,165 5,287 4,765 4,230 22.36 27.28 6,234
21 2 or 3 77'1" 93'2" 181,349 193,957 196,341 230,423 5,533 4,987 4,427 23.47 28.40 6,525
22 2 or 3 80'10" 96'10" 190,089 202,697 205,082 240,681 5,779 5,209 4,624 24.58 29.52 6,815
23 2 or 3 84'5" 100"6" 198,829 211,437 213,823 250,939 6,025 5,431 4,821 25.69 30.63 7,106
24 2 or 3 88'1" 104'2" 207,569 220,177 222,564 261,197 6,272 5,653 5,018 26.80 31.75 7,396
25 2 or 3 91'10" 107'10" 216,309 228,917 231,304 271,455 6,518 5,875 5,215 27.91 32.87 7,687
26 2 or 3 95'5" 111'6" 225,049 237,657 240,045 281,713 6,764 6,097 5,412 29.02 33.99 7,977
27 2 or 3 99'1" 115'2" 233,789 246,397 248,786 291,971 7,011 6,319 5,609 30.13 35.10 8,268
28 2 or 3 102'10" 118'10" 242,529 255,137 257,527 302,229 7,257 6,541 5,806 31.24 36.22 8,558
29 2 or 3 106'5" 122'6" 251,269 263,877 266,267 312,487 7,503 6,763 6,003 32.35 37.34 8,849
30 2 or 3 110'1" 126'2" 260,009 272,617 275,008 322,745 7,750 6,985 6,200 33.46 38.46 9,139

66' Diameter / 113,669-314,626 bu.

Ring Height Stiffeners per Sheet Eave Height Peak Height Level Bu. Capacity 12" Plenum Peaked Bu. Capacity 12" Plenum Max Bu. Capacity Capacity (Cubic Feet) Metric Tons 800 kg/m3 Metric Tons 721 kg/m3 Metric Tons 640 kg/m3 Eave Height (Meters) Peak Height (Meters) Max. Capacity (Cubic Meters)
11 2 or 3 40’5” 57'3" 113669 130451 133335 156480 3757 3386 3006 12.32 17.44 4431
12 2 or 3 44’1” 60'11" 124246 141027 143912 168893 4055 3655 3245 13.44 18.55 4783
13 2 or 3 47'9" 64'7" 134822 151604 154488 181305 4353 3924 3483 14.56 19.67 5134
14 2 or 3 51'5" 68'3" 145398 162180 165064 193717 4651 4192 3721 15.70 20.79 5485
15 2 or 3 55'1" 71'11" 155975 172756 175641 206129 4949 4461 3960 16.81 21.91 5837
16 2 or 3 58'9" 75'7" 166551 183333 186217 218541 5248 4729 4198 17.93 23.02 6188
17 2 or 3 62'5" 79'3" 177127 193909 196793 230954 5546 4998 4437 19.03 24.14 6540
18 2 or 3 66'1" 82'11" 187704 204485 207370 243366 5844 5267 4675 20.14 25.26 6891
19 2 or 3 69'9" 86'7" 198280 215061 217946 255778 6142 5535 4914 21.25 26.38 7243
20 2 or 3 73'5" 90'3" 208856 225638 228522 268190 6440 5804 5152 22.36 27.49 7594
21 2 or 3 77'1" 93'11" 219433 236214 239099 280602 6738 6073 5391 23.47 28.61 7946
22 2 or 3 80'10" 97'7" 230010 246790 249676 293014 7036 6342 5630 24.58 29.73 8298
23 2 or 3 84'5" 101'3" 240587 257366 260253 305426 7334 6611 5869 25.69 30.85 8650
24 2 or 3 88'1" 104'10" 251164 267942 270830 317838 7632 6880 6108 26.80 31.96 9002
25 2 or 3 91'10" 108'7" 261741 278518 281407 330250 7930 7149 6347 27.91 33.08 9354
26 2 or 3 95'5" 112'3" 272318 289094 291984 342662 8228 7418 6586 29.02 34.20 9706
27 2 or 3 99'1" 115'10" 282895 299670 302561 355074 8526 7687 6825 30.13 35.32 10058
28 2 or 3 102'10" 119'7" 293472 310246 313138 367486 8824 7956 7064 31.24 36.44 10410
29 2 or 3 106'5" 123'3" 304049 320822 323715 379898 9122 8225 7303 32.35 37.55 10762
30 2 or 3 110'1" 126'10" 314626 331398 334292 392310 9420 8494 7542 33.46 38.67 11114

72' Diameter / 135,276-374,426 bu.

Ring Height Stiffeners per Sheet Eave Height Peak Height Level Bu. Capacity 12" Plenum Peaked Bu. Capacity 12" Plenum Max Bu. Capacity Capacity (Cubic Feet) Metric Tons 800 kg/m3 Metric Tons 721 kg/m3 Metric Tons 640 kg/m3 Eave Height (Meters) Peak Height (Meters) Max. Capacity (Cubic Meters)
11 2 or 3 40’5” 59'0" 135,276 157,063 160,496 188,355 4,523 4,076 3,618 12.32 17.98 5,334
12 2 or 3 44’1” 62'8" 147,863 169,650 173,082 203,127 4,877 4,396 3,902 13.44 19.10 5,752
13 2 or 3 47'9" 66'4" 160,449 182,236 185,669 217,898 5,232 4,716 4,186 14.56 20.21 6,170
14 2 or 3 51'5" 70'0" 173,036 194,823 198,256 232,670 5,587 5,035 4,470 15.70 21.33 6,588
15 2 or 3 55'1" 73'8" 185,623 207,410 210,842 247,442 5,941 5,355 4,754 16.81 22.45 7,007
16 2 or 3 58'9" 77'4" 198,209 219,996 223,429 262,213 6,296 5,675 5,037 17.93 23.57 7,425
17 2 or 3 62'5" 81'0" 210,796 232,583 236,016 276,985 6,651 5,994 5,321 19.03 24.68 7,843
18 2 or 3 66'1" 84'8" 223,383 245,170 248,603 291,756 7,006 6,314 5,605 20.14 25.80 8,262
19 2 or 3 69'9" 88'4" 235,970 257,757 261,189 306,528 7,360 6,634 5,889 21.25 26.92 8,690
20 2 or 3 73'5" 92'0" 248,556 270,343 273,776 321,299 7,715 6,953 6,172 22.36 28.04 9,098
21 2 or 3 77'1" 95'8" 261,143 282,930 286,363 336,071 8,070 7,273 6,456 23.47 29.15 9,516
22 2 or 3 80'10" 99'4" 273,730 295,517 298,950 350,843 8,425 7,593 6,740 24.58 30.27 9,934
23 2 or 3 84'5" 103'0" 286,317 308,104 311,537 365,615 8,780 7,913 7,024 25.69 31.39 10,352
24 2 or 3 88'1" 106'8" 298,904 320,691 324,124 380,387 9,135 8,233 7,308 26.80 32.51 10,770
25 2 or 3 91'10" 110'4" 311,491 333,278 336,711 395,159 9,490 8,553 7,592 27.91 33.62 11,188
26 2 or 3 95'5" 114'0" 324,078 345,865 349,298 409,931 9,845 8,873 7,876 29.02 34.74 11,606
27 2 or 3 99'1" 117'8" 336,665 358,452 361,885 424,703 10,200 9,193 8,160 30.13 35.86 12,024
28 2 or 3 102'10" 121'4" 349,252 371,039 374,472 439,475 10,555 9,513 8,444 31.24 36.98 12,442
29 2 or 3 106'5" 125'0" 361,839 383,626 387,059 454,247 10,910 9,833 8,728 32.35 38.09 12,860
30 2 or 3 110'1" 128'8" 374,426 396,213 399,646 469,019 11,265 10,153 9,012 33.46 39.21 13,278

75' Diameter / 146,519-406,010 bu.

Ring Height Stiffeners per Sheet Eave Height Peak Height Level Bu. Capacity 12" Plenum Peaked Bu. Capacity 12" Plenum Max Bu. Capacity Capacity (Cubic Feet) Metric Tons 800 kg/m3 Metric Tons 721 kg/m3 Metric Tons 640 kg/m3 Eave Height (Meters) Peak Height (Meters) Max. Capacity (Cubic Meters)
11 2 or 3 40’5” 59'11" 146,519 171,370 175,095 205,489 4,934 4,447 3,948 12.32 18.25 5,819
12 2 or 3 44’1” 63'7" 160,177 185,028 188,752 221,517 5,319 4,794 4,255 13.44 19.36 6,273
13 2 or 3 47'9" 67'3" 173,834 198,685 202,410 237,545 5,704 5,141 4,563 14.56 20.48 6,727
14 2 or 3 51'5" 70'11" 187,491 212,342 216,067 253,573 6,089 5,488 4,871 15.70 21.60 7,180
15 2 or 3 55'1" 74'7" 201,149 226,000 229,725 269,601 6,474 5,834 5,179 16.81 22.72 7,634
16 2 or 3 58'9" 78'3" 214,806 239,657 243,382 285,630 6,858 6,181 5,487 17.93 23.83 8,088
17 2 or 3 62'5" 81'11" 228,464 253,315 257,039 301,658 7,243 6,528 5,795 19.03 24.95 8,542
18 2 or 3 66'1" 85'7" 242,121 266,972 270,697 317,686 7,628 6,875 6,103 20.14 26.07 8,996
19 2 or 3 69'9" 89'3" 255,779 280,630 284,354 333,714 8,013 7,222 6,411 21.25 27.19 9,450
20 2 or 3 73'5" 92'11" 269,436 294,287 298,012 349,742 8,398 7,569 6,719 22.36 28.30 9,904
21 2 or 3 77'1" 96'7" 283,093 307,944 311,669 365,770 8,783 7,916 7,027 23.47 29.42 10,357
22 2 or 3 80'10" 100'3" 296,751 321,602 325,327 381,798 9,168 8,263 7,335 24.58 30.54 10,811
23 2 or 3 84'5" 103'11" 310,408 335,259 338,984 397,827 9,552 8,609 7,643 25.69 31.66 11,265
24 2 or 3 88'1" 107'7" 324,066 348,917 352,642 4,138,558 9,937 8,956 7,950 26.80 32.77 11,719
25 2 or 3 91'10" 111'3" 337,723 362,574 366,299 429,883 10,322 9,303 8,258 27.91 33.89 12,173
26 2 or 3 95'5" 114'11" 351,381 376,232 379,956 445,911 10,707 8,650 8,566 29.02 35.01 12,627
27 2 or 3 99'1" 118'7" 265,038 289,889 393,614 461,939 11,092 9,997 8,874 30.13 36.13 13,081
28 2 or 3 102'10" 112'3" 378,696 403,547 407,271 477,967 11,477 10,344 9,182 31.24 37.24 13,535
29 2 or 3 106'5" 125'11" 392,353 417,204 420,929 493,996 11,862 10,691 9,490 32.35 38.36 13,988
30 2 or 3 110'1" 129'7" 406,010 430,861 434,586 510,024 12,246 11,038 9,798 33.46 39.48 14,442

78' Diameter / 158,466-439,132 bu.

Ring Height Stiffeners per Sheet Eave Height Peak Height Level Bu. Capacity 12" Plenum Peaked Bu. Capacity 12" Plenum Max Bu. Capacity Capacity (Cubic Feet) Metric Tons 800 kg/m3 Metric Tons 721 kg/m3 Metric Tons 640 kg/m3 Eave Height (Meters) Peak Height (Meters) Max. Capacity (Cubic Meters)
11 2 or 3 40’5” 60'9" 158,466 186,419 190,448 223,507 5,367 4,837 4,294 12.32 18.51 6,329
12 2 or 3 44’1” 64'5" 173,238 201,191 205,220 240,843 5,783 5,212 4,627 13.44 19.63 6,820
13 2 or 3 47'9" 68'1" 188,010 215,963 219,992 258,179 6,199 5,587 4,960 14.56 20.75 7,311
14 2 or 3 51'5" 71'9" 202,782 230,735 234,764 275,515 6,616 5,962 5,293 15.70 21.86 7,802
15 2 or 3 55'1" 75'5" 217,554 245,507 249,536 292,851 7,032 6,338 5,626 16.81 22.98 8,293
16 2 or 3 58'9" 79'1" 232,326 260,279 264,307 310,187 7,448 6,713 5,959 17.93 24.10 8,784
17 2 or 3 62'5" 82'9" 247,098 275,051 279,079 327,523 7,864 7,088 6,292 19.03 25.22 9,274
18 2 or 3 66'1" 86'5" 261,969 289,922 293,851 344,859 8,281 7,463 6,625 20.14 26.33 9,765
19 2 or 3 69'9" 90'1" 276,641 304,594 308,623 362,195 8,697 7,838 6,958 21.25 27.45 10,256
20 2 or 3 73'5" 93'9" 291,413 319,366 323,395 379,531 9,113 8,214 7,291 22.36 28.57 10,747
21 2 or 3 77'1" 97'5" 306,185 334,138 338,167 396,868 9,528 8,589 7,624 23.47 29.69 11,238
22 2 or 3 80'10" 101'1" 320,957 348,910 352,939 414,204 9,946 8,964 7,957 24.58 30.80 11,729
23 2 or 3 84'5" 104'9" 335,729 363,682 367,711 431,540 10,362 9,339 8,290 25.69 31.92 12,220
24 2 or 3 88'1" 108'5" 350,501 378,454 382,483 448,876 10,778 9,714 8,623 26.80 33.04 12,711
25 2 or 3 91'10" 112'1" 365,273 393,226 397,254 466,212 11,194 10,089 8,956 27.91 34.16 13,202
26 2 or 3 95'5" 115'9" 380,045 407,998 412,026 483,548 11,611 10,465 9,289 29.02 35.27 13,693
27 2 or 3 99'1" 119'5" 394,816 422,769 426,798 500,884 12,027 10,840 9,622 30.13 36.39 14,183
28 2 or 3 102'10" 123'1" 409,588 437,541 441,570 518,220 12,443 11,215 9,955 31.24 37.51 14,674
29 2 or 3 106'5" 126'-9" 424,360 452,313 456,342 535,556 12,860 11,590 10,288 32.35 38.63 15,165
30 2 or 3 110'1" 130'5" 439,132 467,085 471,114 552,892 13,276 11,965 10,621 33.46 39.74 15,656

90' Diameter / 210,924-584,592 bu.

Ring Height Stiffeners per Sheet Eave Height Peak Height Level Bu. Capacity 12" Plenum Peaked Bu. Capacity 12" Plenum Max Bu. Capacity Capacity (Cubic Feet) Metric Tons 800 kg/m3 Metric Tons 721 kg/m3 Metric Tons 640 kg/m3 Eave Height (Meters) Peak Height (Meters) Max. Capacity (Cubic Meters)
11 2 or 3 40’5” 64'4" 210,924 253,865 259,229 304,227 7,305 6,584 5,844 12.32 19.60 8,615
12 2 or 3 44’1” 68'0" 230,591 273,532 278,895 327,307 7,859 7,083 6,288 13.44 20.71 9,268
13 2 or 3 47'9" 71'8" 250,257 293,198 298,562 350,388 8,413 7,583 6,731 14.56 21.83 9,922
14 2 or 3 51'5" 75'4" 269,924 312,865 318,229 373,469 8,968 8,082 7,175 15.70 22.95 10,575
15 2 or 3 55'1" 79'0" 289,591 332,532 337,896 396,549 9,522 8,582 7,618 16.81 24.07 11,229
16 2 or 3 58'9" 82'8" 309,258 352,199 357,562 419,630 10,076 9,081 8,061 17.93 25.18 11,883
17 2 or 3 62'5" 86'4" 328,924 371,865 377,229 442,710 10,630 9,581 8,505 19.03 26.30 12,536
18 2 or 3 66'1" 90'0" 348,591 391,532 396,896 465,791 11,184 10,080 8,948 20.14 27.42 13,190
19 2 or 3 69'9" 93'8" 368,258 411,199 416,562 488,871 11,739 10,580 9,392 21.25 28.54 13,843
20 2 or 3 73'5" 97'4" 388,024 430,965 436,229 511,952 12,293 11,079 9,835 22.36 29.65 14,497
21 2 or 3 77'1" 101'0" 407,591 450,532 455,896 535,032 12,847 11,579 10,278 23.47 30.77 15,150
22 2 or 3 80'10" 104'8" 427,258 470,199 475,563 558,113 13,401 12,078 10,722 24.58 31.89 15,804
23 2 or 3 84'5" 108'4" 446,925 489,866 495,229 581,194 13,955 12,578 11,165 25.69 33.01 16,458
24 2 or 3 88'1" 112'0" 466,591 509,532 514,896 604,274 14,510 13,077 11,609 26.80 34.13 17,111
25 2 or 3 91'10" 115'8" 486,258 529,199 534,563 627,355 15,064 13,577 12,052 27.91 35.24 17,765
26 2 or 3 95'5" 119'4" 505,925 548,866 554,229 650,435 15,618 14,076 12,495 29.02 36.36 18,418
27 2 or 3 99'1" 123'0" 525,591 568,532 573,896 673,516 16,172 14,576 12,939 30.13 37.48 19,072
28 2 or 3 102'10" 126'8" 545,258 588,199 593,563 696,596 16,726 15,075 13,382 31.24 38.60 19,725
29 2 or 3 106'5" 130'4" 564,925 607,866 613,230 719,677 17,281 15,575 13,825 32.35 39.71 20,379
30 2 or 3 110'1" 134'0" 584,592 627,533 632,896 742,757 17,835 16,074 14,269 33.46 40.83 21,033

105' Diameter / 287,002-795,605 bu.

Ring Height Stiffeners per Sheet Eave Height Peak Height Level Bu. Capacity 12" Plenum Peaked Bu. Capacity 12" Plenum Max Bu. Capacity Capacity (Cubic Feet) Metric Tons 800 kg/m3 Metric Tons 721 kg/m3 Metric Tons 640 kg/m3 Eave Height (Meters) Peak Height (Meters) Max. Capacity (Cubic Meters)
11 2 or 3 40’5” 68'8" 287,002 355,192 362,492 425,415 10,215 9,206 8,173 12.32 20.92 12,046
12 2 or 3 44’1” 72'4" 313,770 381,960 389,261 456,831 10,969 9,886 8,776 13.44 22.04 12,936
13 2 or 3 47'9" 76'0" 340,539 408,729 416,029 488,246 11,724 10,566 9,380 14.56 23.16 13,826
14 2 or 3 51'5" 79'8" 367,307 435,497 442,798 519,661 12,478 11,246 9,983 15.70 24.28 14,715
15 2 or 3 55'1" 83'4" 394,076 462,266 469,567 551,076 13,232 11,926 10,587 16.81 25.39 15,605
16 2 or 3 58'9" 87'0" 420,845 489,035 496,335 582,491 13,987 12,606 11,190 17.93 26.51 16,494
17 2 or 3 62'5" 90'8" 447,613 515,803 523,104 613,907 14,741 13,286 11,794 19.03 27.63 17,384
18 2 or 3 66'1" 94'4" 474,382 542,572 549,872 645,322 15,495 13,966 12,397 20.14 28.75 18,273
19 2 or 3 69'9" 98'0" 501,150 569,340 576,641 676,737 16,250 14,645 13,001 21.25 29.87 19,163
20 2 or 3 73'5" 101'8" 527,919 596,109 603,409 708,152 170,004 15,325 13,604 22.36 30.98 20,053
21 2 or 3 77'1" 105'4" 554,687 622,877 630,178 739,567 17,758 16,005 14,208 23.47 32.10 20,942
22 2 or 3 80'10" 109'0" 581,456 649,646 656,947 770,983 18,512 16,685 14,811 24.58 33.22 21,832
23 2 or 3 84'5" 112'8" 608,225 676,415 683,715 802,398 19,267 17,365 15,415 25.69 34.34 22,721
24 2 or 3 88'1" 116'4" 634,993 703,183 710,484 833,813 20,021 18,045 16,018 26.80 35.45 23,611
25 2 or 3 91'10" 120'0" 661,762 729,952 737,252 865,228 20,775 18,725 1,622 27.91 36.57 24,501
26 2 or 3 95'5" 123'8" 688,530 756,720 764,021 896,643 21,530 19,404 17,225 29.02 37.69 25,390
27 2 or 3 99'1" 127'4" 715,299 783,489 790,789 928,059 22,284 20,084 17,829 30.13 38.81 26,280
28 2 or 3 102'10" 131'0" 742,068 810,258 817,558 959,474 23,038 20,764 18,432 31.24 39.92 27,169
29 2 or 3 106'5" 134'8" 768,836 837,026 844,327 990,889 23,793 21,444 19,036 32.35 41.04 28,059
30 2 or 3 110'1" 138'4" 795,605 863,795 871,095 1,022,304 24,547 22,124 19,639 33.46 42.16 28,948

135' Diameter / 631,136-1,471,888 bu.

Ring Height Stiffeners per Sheet Eave Height Peak Height Max Bu. Capacity Capacity (Cubic Feet) Metric Tons 800 kg/m3 Metric Tons 721 kg/m3 Metric Tons 640 kg/m3 Eave Height (Meters) Peak Height (Meters) Max. Capacity (Cubic Meters)
11 3 40’5” 76'5" 631,136 740,692 17,785 16,029 14,229 12.32 23.29 20,974
12 3 44’1” 80'1" 675,386 792,623 19,032 17,153 15,227 13.44 24.40 22,445
13 3 47'9" 83'9" 719,636 844,554 20,279 18,277 16,224 14.56 25.52 23,915
14 3 51'5" 87'5" 763,887 896,486 21,536 19,401 17,222 15.70 26.64 25,386
15 3 55'1" 91'0" 808,137 948,417 22,773 20,525 18,220 16.81 27.76 26,856
16 3 58'9" 94'9" 852,387 1,000,348 24,020 21,649 19,217 17.93 28.87 28,327
17 3 62'5" 98'5" 896,637 1,052,279 25,267 22,773 20,215 19.03 29.99 29,797
18 3 66'1" 102'1" 940,887 1,104,211 26,514 23,896 2,123 20.14 31.11 31,268
19 3 69'9" 105'9" 985,137 1,156,142 27,771 25,020 22,210 21.25 32.23 32,738
20 3 73'5" 109'5" 1,029,387 1,028,073 29,008 2,611 23,208 22.36 33.35 34,209
21 3 77'1" 113'1" 1,073,637 1,260,004 30,255 27,268 24,206 23.47 34.46 35,679
22 3 80'10" 116'9" 1,117,887 1,311,936 31,502 28,392 25,203 24.58 35.58 37,150
23 3 84'5" 120'5" 1,162,137 1,362,867 32,749 29,516 26,201 25.69 36.70 38,620
24 3 88'1" 124'1" 1,206,388 1,415,798 33,996 30,640 27,198 26.80 37.82 40,091
25 3 91'10" 127'9" 1,250,638 1,467,729 35,242 31,763 28,196 27.91 38.93 41,561
26 3 95'5" 131'5" 1,294,888 1,519,661 36,489 32,887 29,194 29.02 40.05 43,032
27 3 99'1" 135'1" 1,339,138 1,571,592 37,736 34,011 30,191 30.13 41.17 44,503
28 3 102'10" 138'9" 1,383,388 1,623,523 38,983 35,135 31,189 31.24 42.29 45,973
29 3 106'5" 142'5" 1,427,638 1,675,454 40,230 36,259 32,187 32.35 43.40 47,444
30 3 110'1" 146'1" 1,471,888 1,727,386 41,477 37,383 33,184 33.46 44.52 48,914

156' Diameter / 872,593-1,995,256 bu.

Ring Height Stiffeners per Sheet Eave Height Peak Height Max Bu. Capacity Capacity (Cubic Feet) Metric Tons 800 kg/m3 Metric Tons 721 kg/m3 Metric Tons 640 kg/m3 Eave Height (Meters) Peak Height (Meters) Max. Capacity (Cubic Meters)
11 3 40’5” 82'8" 872,593 1,024,061 24,589 22,162 19,673 12.32 25.18 28,998
12 3 44’1” 86'4" 931,680 1,093,406 26,254 23,662 21,005 13.44 26.30 30,962
13 3 47'9" 90'0" 990,768 1,162,750 27,919 25,163 22,337 14.56 27.42 32,925
14 3 51'5" 93'8" 1,049,855 1,232,094 29,584 26,664 23,669 15.70 28.54 34,889
15 3 55'1" 97'4" 1,108,943 1,301,438 31,250 28,165 25,002 16.81 29.65 336,853
16 3 58'9" 101'0" 1,168,030 1,370,783 32,915 29,665 26,334 17.93 30.77 38,816
17 3 62'5" 104'8" 1,227,118 1,440,127 34,580 31,166 27,666 19.03 31.89 40,780
18 3 66'1" 108'4" 1,286,205 1,509,471 36,245 32,667 28,998 20.14 33.01 42,743
19 3 69'9" 112'0" 1,345,293 1,578,815 37,910 34,167 30,330 21.25 34.12 44,707
20 3 73'5" 115'8" 1,404,380 1,648,160 39,575 35,668 31,662 22.36 35.24 46,671
21 3 77'1" 119'4" 1,463,468 1,717,504 41,250 37,169 32,994 23.47 36.36 48,634
22 3 80'10" 123'0" 1,522,556 1,786,848 42,905 38,669 34,327 24.58 37.48 50,598
23 3 84'5" 127'8" 1,581,643 1,856,192 44,570 40,170 35,659 25.69 38.60 52,562
24 3 88'1" 130'4" 1,640,731 1,925,537 46,235 41,671 36,994 26.80 39.71 54,525
25 3 91'10" 134'0" 1,699,818 1,994,881 47,900 43,172 38,323 27.91 40.83 56,489
26 3 95'5" 137'8" 1,758,906 2,064,225 49,565 44,672 39,655 29.02 41.95 58,452
27 3 99'1" 141'4" 1,817,993 2,133,569 51,230 46,173 40,987 30.13 43.07 60,416
28 3 102'10" 145'0" 1,877,081 2,202,914 52,895 47,674 42,319 31.24 44.18 62,380
29 3 106'5" 148'8" 1,936,168 2,272,258 54,560 49,174 43,652 32.35 45.30 64,343
30 3 110'1" 152'4" 1,995,256 2,341,602 56,225 50,675 44,984 33.46 46.42 66,307

Cookie Notice

We use cookies to improve and customize our sites and services. This includes cookies from third party social media websites, which may track your use of our website. If you continue without changing your settings, we'll assume that you are happy to receive all cookies on our website. You can change your cookie settings at any time. Learn more

Got It
