Grain Hopper Tanks

Outstanding strength and durability

Grain Hopper Tanks

Grain Hopper Tanks

Outstanding strength and durability

Highlights

  • Capacities up to 6,916 bu. (169 MT)
  • Diameters from 9' to 21' (2.74-6.40 m)
  • Designed to handle dry free flowing grain.
  • Smaller capacity ranges with the increased strength of a grain bin roof.

Built to Perform

Grain Bin Roof

PROTECT YOUR INVESTMENT

Grain Bin Roof

Our grain bin roof features a 3” (76.2 mm) tall rib with over and under lap profiles ensures a precise fit. Three bend rib profiles are also incorporated in the new design for increased strength to stand up even in the harshest environments.

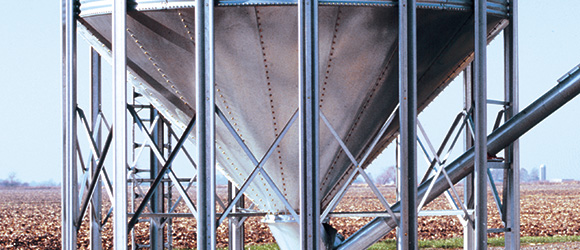

Galvanized Legs

Galvanized Legs

A galvanized sub structure provides strength to support the tank and protects this foundation from the elements for years of reliable service.

Drip Lip

Drip Lip

Our drip lip is a one-of-a-kind, roll-formed bottom sheet edge that forces water away from running down the hopper and the lower boot area, keeping water away from the tank seams.

Specifications

Diameter Ring Heights Hopper Angle Max. Capacity (bu.) Max. Capacity (cu. ft.) Max. Capacity (metric tons)
9'  (2.74 m) 2-10 45 degrees 1463 1825.6 33.14
12'  (3.66 m) 2-9 45 degrees 2547 3035.9 62.03
15'  (4.57 m) 2-8 45 degrees 3700 4415.1 90.20
18'  (5.49 m) 2-9 45 degrees
6053 7227.2 147.50
21' (6.40 m) 3-7 45 degrees
6916 8278.5 169.90
  • For storage of free flowing material having a maximum density of 45 lbs. per cubic foot.
  • Bushel capacities are calculated with 5% compaction and at a 27° angle of repose.
  • Weight capacities are calculated at 45 lbs. per cubic foot.
