Modular construction for speed of installation
Modular Tower Dryers
Modular construction for speed of installation
Highlights
- Drying capacities up to 1,690 BPH dry and cool at 5 pt. removal.
- Easy heat recovery without uneven heat issues.
- Patented self cleaning divider floor and quiet operation with the fans located inside the grain column.
- Standard vacuum cool heat recovery.
- LP or natural gas.
GSI Connect
Remote Dryer Management
Know your dryer a little less personally this harvest
Harvest is hectic. And the last thing you need is an extra trip to the dryer. With GSI Connect, you know your dryer is doing its job. So, you can stay where you are and keep doing yours.
- Control from anywhere
- See your dryer’s status, moisture, temperature
- Adjust set points, stop your dryer and change unload speeds
- Monitor your dryer’s performance and get alerts to reduce runtime and maximize profit
Getting Started is Easy
Work with your GSI dealer to make sure your dryer is connect-ready
Download the app
Pair with dryer
Best of all, portable dryers are just the beginning. GSI is working to make GSI Storage and Material Handling connect-ready too. So, with GSI Connect, you can put your entire grain system in your hands.
Built to Perform
Vision Controls
Vision controls offer simple operation, with an easy-to-read large color graphical touch display. Located on the dryer or remote with a few wires, these controls are design specifically for GSI grain dryers, giving you unmatched options and settings to get exactly what you need from your dryer control.
Modular Tower Dryer Exclusive

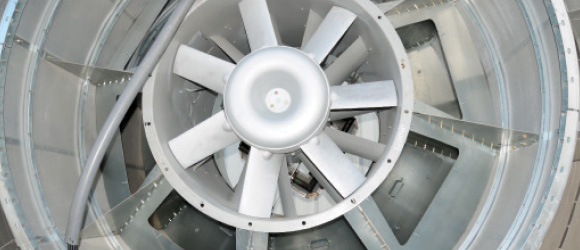

Adjustable Cooling Floor
The patented adjustable floor allows either 1/3 or 1/5 of the dryers column to be used for cooling, allowing for higher capacities in high moisture conditions or maximum cooling in more normal conditions as well as a higher exiting grain temperature to take advantage of cooling bins, increasing capacity and improving efficiency and grain quality.
Patented
Grain Inverters
Eliminate over-dried grain and maximize drying efficiency and quality. This patented system inverts all but the outside 2″ (50.8 mm) of grain promoting higher test weights, maximum grain quality, and reduced fuel usage. The outside layer of wet grain is dried using the heat which would have otherwise escaped the dryer, keeping your operation energy efficient. A convenient clean-out door provides easy, quick maintenance.
Static Moisture Sampler
Improve your accuracy with the static moisture sampler. Debris guards ensure a trash-free sample and delivers a uniform representative sample to the test chamber. A blower system gently moves the grain out of the chamber, cleaning it each cycle. Get the most accurate results as the moisture reading used to monitor/calculate discharge grain moisture is only taken while the grain is static and not flowing.
Specifications
| TM-1008 | TM-1010 | TM-1012 | TM-1015 | |
|---|---|---|---|---|
| Tower Diameter – 1 | 10’7″ | 10’7″ | 10’7″ | 10’7″ |
| Blower Size | 43″ Axial | 43″ Axial | 43″ Axial | 48″ Axial |
| Blower HP | 40 | 50 | 60 | 75 |
| Metering HP / Unload HP | 1 / 3 | 1 / 3 | 1 / 3 | 1 / 3 |
| Main Breaker Size (230V/460V) | 225/150 | 300/200 | 300/200 | 400/200 |
| Drying Cfm | 38,000 | 45,000 | 52,000 | 66,000 |
| Cooling Cfm | 19,500 | 22,500 | 26,000 | 33,000 |
| Burner Capacity (mBtu) | 8,200,000 | 9,700,000 | 11,200,000 | 14,300,000 |
| Average Heat Use (mBtu) – 2 | 5,100,000 | 6,100,000 | 7,000,000 | 8,900,000 |
| Grain Column | 12-3/4″ | 12-3/4″ | 12-3/4″ | 12-3/4″ |
| Overall Height3 | 42’1″ | 48’11” | 55’9″ | 62’7″ |
| Wet Holding (bu) | 260 | 260 | 260 | 260 |
| Heat Holding (bu) – Min. Cool | 552 | 726 | 900 | 1,074 |
| Cool Holding (bu) – Min. Cool | 144 | 144 | 187 | 187 |
| Heat Holding (bu) – Max. Cool | 450 | 624 | 798 | 972 |
| Cool Holding (bu) – Max. Cool | 246 | 246 | 289 | 289 |
| Unload Area Holding | 93 | 93 | 50 | 50 |
| Dryer Holding (bu) | 1,049 | 1,223 | 1,397 | 1,571 |
| Dryer Weight (lbs) | 17,900 | 19,200 | 21,700 | 23,000 |
| Outside Catwalks | 1 | 3 | 3 | 3 |
| BPH (Set in Min. Cool) (20%-15%) – 4/5 | 900 | 1,125 | 1,350 | 1,690 |
| BPH (Set in Min. Cool) (25%-15%) – 4/5 | 542 | 670 | 810 | 1,010 |
| BPH (Set in Max. Cool) (20%-15%) – 4 | 800 | 1,000 | 1,200 | 1,500 |
| BPH (Set in Max. Cool) (25%-15%) – 4 | 480 | 600 | 720 | 900 |
1 – Dimensions exclude outside catwalks. Diameter is 15’7″ with catwalks.
2 – At 50 degrees ambient temperature.
3 – Optional vertical fill pipe height not included.
4 – Capacities listed are wet bushels/tonnes, for mature unfrozen #2 yellow shelled dent corn at listed moisture content and are estimates based on drying principles, field results and computer simulation. Variance may occur due to grain’s physiological factors (kernel size, chemical composition, variety, maturity), excessive fines, adverse weather conditions, etc.
5 – Capacities with cooling floor set in the lower minimum cool position and assumes utilization of cooling in bin (dryeration)
Discharge Height – Adjustable up to 42″ with standard unload auger and 24″ at center discharge with standard legs. 2′ leg extensions are optional.
All models available in natural gas or liquid propane. Liquid propane pricing includes an internal vaporizer and high pressure regulator.
All models available in 3 phase 230 or 460 volts.
