40-Series Grain Bins
Maximize your profitability
40-Series Grain Bins
Maximize your profitability
Highlights
- Capacities up to 1.9 million bushels.
- Diameters up to 156'.
- JS500 bolts paired with sealing washers to protect grain.
- High-tensile steel sidewall sheets rated up to 70,000 psi (450 MPa) minimum.
-
Brochure
Download Literature
- Manuals
- Find a Dealer
Built to Perform
Increased Strength
Roof Panels

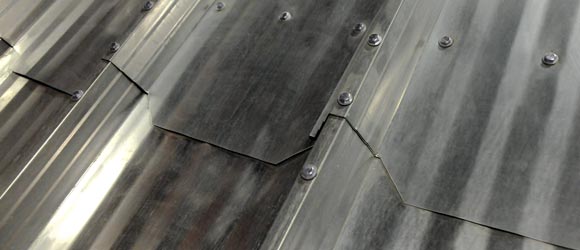

40-Series™ roof panels incorporate a 3” (76.2 mm) tall rib with over and under lap profiles ensuring a precise fit. 3-bend rib profiles are also incorporated in the design for increased strength to stand up even in the harshest of environments.
Stairs, Ladders, Cages, Platforms
Accessibility
Your safety is a top priority. Durable and weather-resistant GSI stairways, ladders, cages, platforms, sidewall doors, steps, and roof caps are designed to provide safe, convenient access points.
Superior Protection
Sidewall Sheets
Each GSI bin is efficiently designed to handle maximum loads for unmatched strength. Most sidewall sheets are manufactured from high-tensile steel that is rated at 70,000 psi (480MPa) or greater.
Improved Stiffener Profile
Stiffeners

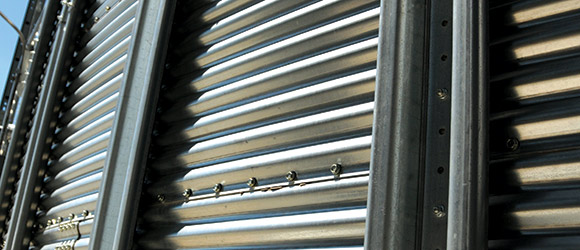

GSI’s stiffener profiles and the use of up to 2-gauge material make bins stronger, allowing 40-Series Bins to go taller. Improved stiffener profile design is manufactured on precision roll-forming equipment for superior quality. Base stiffener boots are powder-coated so they won’t rust over time.
Available on 4024, 4022 and 4032 models.
Precision Engineered
Z-Tek™ Roof System

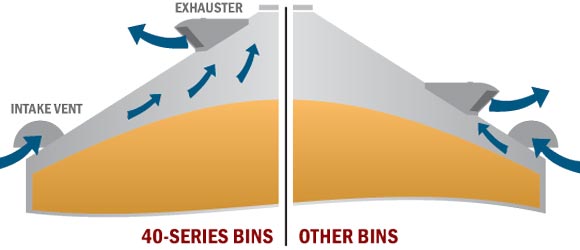

GSI’s 4032 36’ (10.97 m) and larger feature the precision-engineered Z-Tek™ Roof System. Designed for increased load capacity, the system incorporates z-shaped rafters and purlins, clips, peak ring, flat top, and roof panel for unsurpassed strength and protection.
Available on 4032 models.
Specifications
| Model | Stiffeners per Sheet | Corrugation | Diameter Range | Capacity Range (bu.) | Capacity Range (MT) |
|---|---|---|---|---|---|
| 4002 | Unstiffened | 2.66" | 15'-48' (4.57-14.63 m) | 1,600-62,000 | 40.64-1574.80 |
| 4004 | Unstiffened | 4" | 15'-48' (4.57-14.63 m) | 1,700-61,000 | 43.18-1549.40 |
| 4024 | 2 | 4" | 12'-60' (3.66-18.29 m) | 1,000-100,000 | 25.40-2540.00 |
| 4022 | 2 | 2.66" | 18'-60' (5.49-18.29 m) | 7,200-122,000 | 182.88-3098.80 |
| 4032 | 3 | 2.66" | 21'-156' (6.40-47.55 m) | 15,000-1.9 million | 381.00-48260.00 |
Click — to collapse specifications for each diameter.
4002
4002 - 15' Diameter / 1,649-4,828 bu.
| Ring Height | Max. Bu. Capacity 12" Plenum | Eave Height | Peak Height | Capacity (Cubic Feet) | Metric Tons 800 kg/m3 | Metric Tons 721 kg/m3 | Metric Tons 640 kg/m3 | Eave Height (Meters) | Peak Height (Meters) | Max. Capacity (Cubic Meters) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4 | 1,649 | 10'10" | 15'2" | 2,109 | 51 | 46 | 41 | 3.3 | 4.62 | 60 |
| 5 | 2,047 | 13'6" | 17'9" | 2,576 | 62 | 56 | 49 | 4.09 | 5.41 | 73 |
| 6 | 2,444 | 16'2" | 20'5" | 3,042 | 73 | 66 | 58 | 4.93 | 6.25 | 86 |
| 7 | 2,841 | 18'10" | 23'2" | 3,508 | 84 | 76 | 67 | 5.74 | 7.06 | 99 |
| 8 | 3,239 | 21'6" | 25'9" | 3,974 | 95 | 86 | 76 | 6.55 | 7.87 | 113 |
| 9 | 3,636 | 24'2" | 28'5" | 4,441 | 107 | 96 | 85 | 7.36 | 8.68 | 126 |
| 10 | 4,033 | 26'10" | 31'2" | 4,907 | 118 | 106 | 94 | 8.17 | 9.49 | 139 |
| 11 | 4,430 | 29'6" | 33'9" | 5,373 | 129 | 116 | 103 | 8.98 | 10.3 | 152 |
| 12 | 4,828 | 32'2" | 36'5" | 5,839 | 140 | 126 | 112 | 9.79 | 11.11 | 165 |
4002 - 18' Diameter / 2,435-7,011 bu.
| Ring Height | Max. Bu. Capacity 12" Plenum | Eave Height | Peak Height | Capacity (Cubic Feet) | Metric Tons 800 kg/m3 | Metric Tons 721 kg/m3 | Metric Tons 640 kg/m3 | Eave Height (Meters) | Peak Height (Meters) | Max. Capacity (Cubic Meters) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4 | 2,435 | 10'10" | 15'11" | 3,104 | 75 | 67 | 60 | 3.3 | 4.87 | 88 |
| 5 | 3,007 | 13'6" | 18'7" | 3,775 | 91 | 82 | 73 | 4.09 | 5.66 | 107 |
| 6 | 3,579 | 16'2" | 21'3" | 4,447 | 107 | 96 | 85 | 4.93 | 6.5 | 126 |
| 7 | 4,151 | 18'10" | 23'11" | 5,118 | 123 | 111 | 98 | 5.74 | 7.31 | 145 |
| 8 | 4,723 | 21'6" | 26'7" | 5,790 | 139 | 125 | 111 | 6.55 | 8.12 | 164 |
| 9 | 5,295 | 24'2" | 29'3" | 6,461 | 155 | 140 | 124 | 7.37 | 8.94 | 183 |
| 10 | 5,867 | 26'10" | 31'11" | 7,133 | 171 | 154 | 137 | 8.15 | 9.72 | 202 |
| 11 | 6,439 | 29'6" | 34'7" | 7,804 | 187 | 169 | 150 | 8.99 | 10.56 | 221 |
| 12 | 7,011 | 32'2" | 37'3" | 8,475 | 204 | 183 | 163 | 9.8 | 11.37 | 240 |
4002 - 21' Diameter / 4,174-9,620 bu.
| Ring Height | Max. Bu. Capacity 12" Plenum | Eave Height | Peak Height | Capacity (Cubic Feet) | Metric Tons 800 kg/m3 | Metric Tons 721 kg/m3 | Metric Tons 640 kg/m3 | Eave Height (Meters) | Peak Height (Meters) | Max. Capacity (Cubic Meters) |
|---|---|---|---|---|---|---|---|---|---|---|
| 5 | 4,174 | 13'6" | 19'6" | 5,229 | 126 | 113 | 100 | 4.09 | 5.94 | 148 |
| 6 | 4,952 | 16'2" | 22'2" | 6,143 | 148 | 133 | 118 | 4.93 | 6.78 | 174 |
| 7 | 5,730 | 18'10" | 24'10" | 7,057 | 169 | 153 | 136 | 5.74 | 7.59 | 200 |
| 8 | 6,508 | 21'6" | 27'6" | 7,971 | 191 | 173 | 153 | 6.55 | 8.4 | 226 |
| 9 | 7,286 | 24'2" | 30'2" | 8,885 | 213 | 192 | 171 | 7.37 | 9.22 | 252 |
| 10 | 8,064 | 26'10" | 32'10" | 9,799 | 235 | 212 | 188 | 8.15 | 10 | 277 |
| 11 | 8,842 | 29'6" | 35'6" | 10,713 | 257 | 232 | 206 | 8.99 | 10.84 | 303 |
| 12 | 9,620 | 32'2" | 38'2" | 11,627 | 279 | 252 | 223 | 9.8 | 11.65 | 329 |
4002 - 24' Diameter / 5,546-12,665 bu.
| Ring Height | Max. Bu. Capacity 12" Plenum | Eave Height | Peak Height | Capacity (Cubic Feet) | Metric Tons 800 kg/m3 | Metric Tons 721 kg/m3 | Metric Tons 640 kg/m3 | Eave Height (Meters) | Peak Height (Meters) | Max. Capacity (Cubic Meters) |
|---|---|---|---|---|---|---|---|---|---|---|
| 5 | 5,546 | 13'6" | 20'4" | 6,949 | 167 | 150 | 133 | 4.09 | 6.2 | 197 |
| 6 | 6,563 | 16'2" | 23'0" | 8,142 | 196 | 176 | 156 | 4.93 | 7.04 | 231 |
| 7 | 7,580 | 18'10" | 25'8" | 9,336 | 224 | 202 | 179 | 5.74 | 7.85 | 264 |
| 8 | 8,597 | 21'6" | 28'4" | 10,530 | 253 | 228 | 202 | 6.55 | 8.66 | 298 |
| 9 | 9,614 | 24'2" | 31'0" | 11,723 | 281 | 254 | 225 | 7.37 | 9.48 | 332 |
| 10 | 10,631 | 26'10" | 33'8" | 12,917 | 310 | 280 | 248 | 8.15 | 10.26 | 366 |
| 11 | 11,648 | 29'6" | 36'4" | 14,111 | 339 | 305 | 271 | 8.99 | 11.1 | 400 |
| 12 | 12,665 | 32'2" | 39'0" | 15,304 | 367 | 331 | 294 | 9.8 | 11.91 | 433 |
4002 - 27' Diameter / 7,148-16,157 bu.
| Ring Height | Max. Bu. Capacity 12" Plenum | Eave Height | Peak Height | Capacity (Cubic Feet) | Metric Tons 800 kg/m3 | Metric Tons 721 kg/m3 | Metric Tons 640 kg/m3 | Eave Height (Meters) | Peak Height (Meters) | Max. Capacity (Cubic Meters) |
|---|---|---|---|---|---|---|---|---|---|---|
| 5 | 7,148 | 13'6" | 21'3" | 8,944 | 215 | 194 | 172 | 4.09 | 6.48 | 253 |
| 6 | 8,435 | 16'2" | 23'11" | 10,455 | 251 | 226 | 201 | 4.93 | 7.32 | 296 |
| 7 | 9,722 | 18'10" | 26'7" | 11,966 | 287 | 259 | 230 | 5.74 | 8.13 | 339 |
| 8 | 11,009 | 21'6" | 29'3" | 13,476 | 324 | 292 | 259 | 6.55 | 8.94 | 382 |
| 9 | 12,296 | 24'2" | 31'11" | 14,987 | 360 | 324 | 288 | 7.37 | 9.76 | 424 |
| 10 | 13,583 | 26'10" | 34'7" | 16,498 | 396 | 357 | 317 | 8.15 | 10.54 | 467 |
| 11 | 14,870 | 29'6" | 37'3" | 18,008 | 432 | 390 | 346 | 8.99 | 11.38 | 510 |
| 12 | 16,157 | 32'2" | 39'11" | 19,519 | 469 | 422 | 375 | 9.8 | 12.19 | 553 |
4002 - 30' Diameter / 8,981-24,872 bu.
| Ring Height | Max. Bu. Capacity 12" Plenum | Eave Height | Peak Height | Capacity (Cubic Feet) | Metric Tons 800 kg/m3 | Metric Tons 721 kg/m3 | Metric Tons 640 kg/m3 | Eave Height (Meters) | Peak Height (Meters) | Max. Capacity (Cubic Meters) |
|---|---|---|---|---|---|---|---|---|---|---|
| 5 | 8,981 | 13'6" | 22'2" | 11,227 | 270 | 243 | 216 | 4.09 | 6.73 | 318 |
| 6 | 10,570 | 16'2" | 24'10" | 13,092 | 314 | 283 | 252 | 4.93 | 7.57 | 371 |
| 7 | 12,159 | 18'10" | 27'6" | 14,957 | 359 | 324 | 287 | 5.72 | 8.36 | 424 |
| 8 | 13,748 | 21'6" | 30'2" | 16,822 | 404 | 364 | 323 | 6.55 | 9.19 | 476 |
| 9 | 15,337 | 24'2" | 32'10" | 18,687 | 449 | 404 | 359 | 7.37 | 10.01 | 529 |
| 10 | 16,926 | 26'10" | 35'6" | 20,553 | 493 | 445 | 395 | 8.15 | 10.79 | 582 |
| 11 | 18,515 | 29'6" | 38'2" | 22,418 | 538 | 485 | 431 | 8.99 | 11.63 | 635 |
| 12 | 20,104 | 32'2" | 40'10" | 24,283 | 583 | 526 | 466 | 9.8 | 12.44 | 688 |
| 13 | 21,694 | 34'10" | 43'6" | 26,148 | 628 | 566 | 502 | 10.62 | 13.26 | 740 |
| 14 | 23,283 | 37'6" | 46'2" | 28,013 | 673 | 606 | 538 | 11.43 | 14.07 | 793 |
| 15 | 24,872 | 40'2" | 48'10" | 29,878 | 717 | 647 | 574 | 12.24 | 14.88 | 846 |
4002 - 33' Diameter / 11,056-30,286 bu.
| Ring Height | Max. Bu. Capacity 12" Plenum | Eave Height | Peak Height | Capacity (Cubic Feet) | Metric Tons 800 kg/m3 | Metric Tons 721 kg/m3 | Metric Tons 640 kg/m3 | Eave Height (Meters) | Peak Height (Meters) | Max. Capacity (Cubic Meters) |
|---|---|---|---|---|---|---|---|---|---|---|
| 5 | 11,056 | 13'6" | 23'0" | 13,809 | 332 | 299 | 265 | 4.09 | 7.01 | 391 |
| 6 | 12,979 | 16'2" | 25'8" | 16,065 | 386 | 348 | 309 | 4.93 | 7.85 | 455 |
| 7 | 14,902 | 18'10" | 28'4" | 18,322 | 440 | 397 | 352 | 5.74 | 8.66 | 519 |
| 8 | 16,825 | 21'6" | 30'0" | 20,579 | 494 | 445 | 395 | 6.55 | 9.47 | 583 |
| 9 | 18,748 | 24'2" | 33'8" | 22,836 | 548 | 494 | 439 | 7.37 | 10.29 | 647 |
| 10 | 20,671 | 26'10" | 36'4" | 25,092 | 603 | 543 | 482 | 8.15 | 11.07 | 711 |
| 11 | 22,594 | 29'6" | 39'0" | 27,349 | 657 | 592 | 525 | 8.99 | 11.91 | 774 |
| 12 | 24,517 | 32'2" | 41'8" | 29,606 | 711 | 641 | 568 | 9.8 | 12.72 | 837 |
| 13 | 26,440 | 34'10" | 44'4" | 31,863 | 765 | 690 | 611 | 10.62 | 13.54 | 900 |
| 14 | 28,363 | 37'6" | 47'0" | 34,120 | 819 | 739 | 654 | 11.43 | 14.35 | 963 |
| 15 | 30,286 | 40'2" | 49'8" | 36,377 | 873 | 788 | 697 | 12.24 | 15.16 | 1,026 |
4002 - 36' Diameter / 13,381-36,270 bu.
| Ring Height | Max. Bu. Capacity 12" Plenum | Eave Height | Peak Height | Capacity (Cubic Feet) | Metric Tons 800 kg/m3 | Metric Tons 721 kg/m3 | Metric Tons 640 kg/m3 | Eave Height (Meters) | Peak Height (Meters) | Max. Capacity (Cubic Meters) |
|---|---|---|---|---|---|---|---|---|---|---|
| 5 | 13,381 | 13'6" | 23'11" | 16,700 | 401 | 361 | 321 | 4.09 | 7.27 | 473 |
| 6 | 15,670 | 16'2" | 26'7" | 19,385 | 465 | 420 | 372 | 4.93 | 8.11 | 549 |
| 7 | 17,959 | 18'10" | 29'3" | 22,071 | 530 | 478 | 424 | 5.74 | 8.92 | 625 |
| 8 | 20,248 | 21'6" | 31'11" | 24,757 | 594 | 536 | 476 | 6.55 | 9.73 | 701 |
| 9 | 22,537 | 24'2" | 34'7" | 27,443 | 659 | 594 | 527 | 7.37 | 10.55 | 777 |
| 10 | 24,826 | 26'10" | 37'3" | 30,128 | 723 | 652 | 579 | 8.15 | 11.33 | 853 |
| 11 | 27,115 | 29'6" | 39'11" | 32,814 | 788 | 710 | 630 | 8.99 | 12.17 | 929 |
| 12 | 29,404 | 32'2" | 42'7" | 35,500 | 852 | 768 | 682 | 9.8 | 12.98 | 1,005 |
| 13 | 31,693 | 34'10" | 45'3" | 38,186 | 917 | 826 | 734 | 10.62 | 13.8 | 1,081 |
| 14 | 33,981 | 37'6" | 47'11" | 40,871 | 981 | 885 | 785 | 11.43 | 14.61 | 1,157 |
| 15 | 36,270 | 40'2" | 50'7" | 43,557 | 1,046 | 943 | 837 | 12.24 | 15.42 | 1,233 |
4002 - 42' Diameter / 21,950-49,985 bu.
| Ring Height | Max. Bu. Capacity 12" Plenum | Eave Height | Peak Height | Capacity (Cubic Feet) | Metric Tons 800 kg/m3 | Metric Tons 721 kg/m3 | Metric Tons 640 kg/m3 | Eave Height (Meters) | Peak Height (Meters) | Max. Capacity (Cubic Meters) |
|---|---|---|---|---|---|---|---|---|---|---|
| 6 | 21,950 | 16'2" | 28'4" | 27,111 | 651 | 587 | 521 | 4.93 | 8.62 | 768 |
| 7 | 25,065 | 18'10" | 31'0" | 30,766 | 739 | 666 | 591 | 5.74 | 9.43 | 871 |
| 8 | 28,180 | 21'6" | 33'8" | 34,422 | 827 | 745 | 661 | 6.55 | 10.24 | 975 |
| 9 | 31,295 | 24'2" | 36'4" | 38,077 | 914 | 824 | 731 | 7.37 | 11.06 | 1,078 |
| 10 | 34,410 | 26'10" | 39'0" | 41,733 | 1,002 | 903 | 802 | 8.15 | 11.87 | 1,182 |
| 11 | 37,525 | 29'6" | 41'8" | 45,389 | 1,090 | 982 | 872 | 8.99 | 12.68 | 1,285 |
| 12 | 40,640 | 32'2" | 44'4" | 49,044 | 1,178 | 1,061 | 942 | 9.8 | 13.49 | 1,389 |
| 13 | 43,755 | 34'10" | 47'0" | 52,700 | 1,265 | 1,140 | 1,012 | 10.62 | 14.31 | 1,492 |
| 14 | 46,870 | 37'6" | 49'8" | 56,355 | 1,353 | 1,220 | 1,083 | 11.43 | 15.12 | 1,596 |
| 15 | 49,985 | 40'2" | 52'4" | 60,011 | 1,441 | 1,299 | 1,153 | 12.24 | 15.93 | 1,699 |
4002 - 48' Diameter / 29,480-62,025 bu.
| Ring Height | Max. Bu. Capacity 12" Plenum | Eave Height | Peak Height | Capacity (Cubic Feet) | Metric Tons 800 kg/m3 | Metric Tons 721 kg/m3 | Metric Tons 640 kg/m3 | Eave Height (Meters) | Peak Height (Meters) | Max. Capacity (Cubic Meters) |
|---|---|---|---|---|---|---|---|---|---|---|
| 6 | 29,480 | 16'2" | 30'1" | 36,357 | 873 | 787 | 698 | 4.93 | 9.15 | 1,030 |
| 7 | 33,548 | 18'10" | 32'9" | 41,132 | 988 | 890 | 790 | 5.74 | 9.97 | 1,165 |
| 8 | 37,616 | 21'6" | 35'5" | 45,906 | 1,102 | 993 | 882 | 6.55 | 10.78 | 1,300 |
| 9 | 41,684 | 24'2" | 38'1" | 50,681 | 1,217 | 1,097 | 974 | 7.37 | 11.59 | 1,435 |
| 10 | 45,752 | 26'10" | 40'9" | 55,455 | 1,332 | 1,200 | 1,065 | 8.15 | 12.4 | 1,570 |
| 11 | 49,820 | 29'6" | 43'5" | 60,230 | 1,446 | 1,303 | 1,157 | 8.99 | 13.22 | 1,706 |
| 12 | 53,888 | 32'2" | 46'1" | 65,005 | 1,561 | 1,407 | 1,249 | 9.8 | 14.03 | 1,841 |
| 13 | 57,957 | 34'10" | 48'9" | 69,779 | 1,676 | 1,510 | 1,341 | 10.62 | 14.84 | 1,976 |
| 14 | 62,025 | 37'6" | 51'5" | 74,554 | 1,790 | 1,613 | 1,432 | 11.43 | 15.66 | 2,111 |
4004
4004 - 15' Diameter / 1,698-4,429 bu.
| Ring Height | Max. Bu. Capacity 12" Plenum | Eave Height | Peak Height | Capacity (Cubic Feet) | Metric Tons 800 kg/m3 | Metric Tons 721 kg/m3 | Metric Tons 640 kg/m3 | Eave Height (Meters) | Peak Height (Meters) | Max. Capacity (Cubic Meters) |
|---|---|---|---|---|---|---|---|---|---|---|
| 3 | 1,698 | 11'1" | 15'5" | 2,168 | 52 | 47 | 42 | 3.38 | 4.69 | 61 |
| 4 | 2,244 | 14'9" | 19'1" | 2,809 | 67 | 61 | 54 | 4.5 | 5.82 | 80 |
| 5 | 2,791 | 18'5" | 22'9" | 3,450 | 83 | 75 | 66 | 5.61 | 6.95 | 98 |
| 6 | 3,338 | 22'1" | 26'5" | 4,091 | 98 | 89 | 79 | 6.73 | 8.08 | 116 |
| 7 | 3,883 | 25'9" | 30'1" | 4,732 | 114 | 102 | 91 | 7.85 | 9.21 | 134 |
| 8 | 4,429 | 29'5" | 33'9" | 5,373 | 129 | 116 | 103 | 8.97 | 10.34 | 152 |
4004 - 18' Diameter / 2,502-7,222 bu.
| Ring Height | Max. Bu. Capacity 12" Plenum | Eave Height | Peak Height | Capacity (Cubic Feet) | Metric Tons 800 kg/m3 | Metric Tons 721 kg/m3 | Metric Tons 640 kg/m3 | Eave Height (Meters) | Peak Height (Meters) | Max. Capacity (Cubic Meters) |
|---|---|---|---|---|---|---|---|---|---|---|
| 3 | 2,502 | 11'1" | 16'3" | 3,188 | 77 | 69 | 61 | 3.38 | 4.95 | 90 |
| 4 | 3,288 | 14'9" | 19'11" | 4,111 | 99 | 89 | 79 | 4.5 | 6.07 | 116 |
| 5 | 4,075 | 18'5" | 23'7" | 5,034 | 121 | 109 | 97 | 5.61 | 7.19 | 143 |
| 6 | 4,862 | 22'1" | 27'3" | 5,958 | 143 | 129 | 114 | 6.73 | 8.31 | 169 |
| 7 | 5,648 | 25'9" | 30'11" | 6,881 | 165 | 149 | 132 | 7.85 | 9.43 | 195 |
| 8 | 6,435 | 29'5" | 34'7" | 7,804 | 187 | 169 | 150 | 8.97 | 10.55 | 221 |
| 9 | 7,222 | 33'1" | 38'3" | 8,727 | 210 | 189 | 168 | 10.08 | 11.67 | 247 |
4004 - 21' Diameter / 3,482-9,907 bu.
| Ring Height | Max. Bu. Capacity 12" Plenum | Eave Height | Peak Height | Capacity (Cubic Feet) | Metric Tons 800 kg/m3 | Metric Tons 721 kg/m3 | Metric Tons 640 kg/m3 | Eave Height (Meters) | Peak Height (Meters) | Max. Capacity (Cubic Meters) |
|---|---|---|---|---|---|---|---|---|---|---|
| 3 | 3,482 | 11'1" | 17'2" | 4,430 | 106 | 96 | 85 | 3.38 | 5.23 | 125 |
| 4 | 4,553 | 14'9" | 20'10" | 5,686 | 137 | 123 | 109 | 4.5 | 6.35 | 161 |
| 5 | 5,624 | 18'5" | 24'6" | 6,943 | 167 | 150 | 133 | 5.61 | 7.47 | 197 |
| 6 | 6,695 | 22'1" | 28'2" | 8,200 | 197 | 177 | 158 | 6.73 | 8.59 | 232 |
| 7 | 7,765 | 25'9" | 31'10" | 9,456 | 227 | 205 | 182 | 7.85 | 9.71 | 268 |
| 8 | 8,836 | 29'5" | 35'6" | 10,713 | 257 | 232 | 206 | 8.97 | 10.83 | 303 |
| 9 | 9,907 | 33'1" | 39'2" | 11,969 | 287 | 259 | 230 | 10.08 | 11.95 | 339 |
4004 - 24' Diameter / 4,649-14,439 bu.
| Ring Height | Max. Bu. Capacity 12" Plenum | Eave Height | Peak Height | Capacity (Cubic Feet) | Metric Tons 800 kg/m3 | Metric Tons 721 kg/m3 | Metric Tons 640 kg/m3 | Eave Height (Meters) | Peak Height (Meters) | Max. Capacity (Cubic Meters) |
|---|---|---|---|---|---|---|---|---|---|---|
| 3 | 4,649 | 11'1" | 18'0" | 5,904 | 142 | 128 | 113 | 3.38 | 5.48 | 167 |
| 4 | 6,048 | 14'9" | 21'8" | 7,545 | 181 | 163 | 145 | 4.5 | 6.6 | 214 |
| 5 | 7,446 | 18'5" | 25'4" | 9,187 | 221 | 199 | 176 | 5.61 | 7.72 | 260 |
| 6 | 8,845 | 22'1" | 29'0" | 10,828 | 260 | 234 | 208 | 6.73 | 8.84 | 307 |
| 7 | 10,244 | 25'9" | 32'8" | 12,469 | 299 | 270 | 240 | 7.85 | 9.96 | 353 |
| 8 | 11,642 | 29'5" | 36'4" | 14,111 | 339 | 305 | 271 | 8.97 | 11.08 | 400 |
| 9 | 13,041 | 33'1" | 40'0" | 15,752 | 378 | 341 | 303 | 10.08 | 12.2 | 446 |
| 10 | 14,439 | 36'9" | 43'8" | 17,393 | 418 | 376 | 334 | 11.2 | 13.32 | 493 |
4004 - 27' Diameter / 6,012-18,402 bu.
| Ring Height | Max. Bu. Capacity 12" Plenum | Eave Height | Peak Height | Capacity (Cubic Feet) | Metric Tons 800 kg/m3 | Metric Tons 721 kg/m3 | Metric Tons 640 kg/m3 | Eave Height (Meters) | Peak Height (Meters) | Max. Capacity (Cubic Meters) |
|---|---|---|---|---|---|---|---|---|---|---|
| 3 | 6,012 | 11'1" | 18'11" | 7,622 | 183 | 165 | 146 | 3.38 | 5.66 | 216 |
| 4 | 7,782 | 14'9" | 22'7" | 9,699 | 233 | 210 | 186 | 4.5 | 6.78 | 275 |
| 5 | 9,552 | 18'5" | 26'3" | 11,777 | 283 | 255 | 226 | 5.61 | 7.9 | 333 |
| 6 | 11,322 | 22'1" | 29'11" | 13,854 | 333 | 300 | 266 | 6.73 | 9.01 | 392 |
| 7 | 13,092 | 25'9" | 33'7" | 15,931 | 383 | 345 | 306 | 7.85 | 10.14 | 451 |
| 8 | 14,862 | 29'5" | 37'3" | 18,008 | 432 | 390 | 346 | 8.97 | 11.25 | 510 |
| 9 | 16,632 | 33'1" | 40'11" | 20,086 | 482 | 435 | 386 | 10.08 | 12.37 | 569 |
| 10 | 18,402 | 36'9" | 44'7" | 22,163 | 532 | 480 | 426 | 11.2 | 13.49 | 628 |
4004 - 30' Diameter / 9,765-22,876 bu.
| Ring Height | Max. Bu. Capacity 12" Plenum | Eave Height | Peak Height | Capacity (Cubic Feet) | Metric Tons 800 kg/m3 | Metric Tons 721 kg/m3 | Metric Tons 640 kg/m3 | Eave Height (Meters) | Peak Height (Meters) | Max. Capacity (Cubic Meters) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4 | 9,765 | 14'9" | 23'6" | 12,160 | 292 | 263 | 234 | 4.5 | 7.16 | 344 |
| 5 | 11,950 | 18'5" | 27'2" | 14,724 | 354 | 319 | 283 | 5.61 | 8.27 | 417 |
| 6 | 14,135 | 22'1" | 30'10" | 17,289 | 415 | 374 | 332 | 6.73 | 9.38 | 490 |
| 7 | 16,321 | 25'9" | 34'6" | 19,853 | 477 | 430 | 381 | 7.85 | 10.49 | 562 |
| 8 | 18,506 | 29'5" | 38'2" | 22,418 | 538 | 485 | 431 | 8.97 | 11.6 | 635 |
| 9 | 20,691 | 33'1" | 41'10" | 24,982 | 600 | 541 | 480 | 10.08 | 12.71 | 707 |
| 10 | 22,876 | 36'9" | 45'6" | 27,547 | 661 | 596 | 529 | 11.2 | 13.82 | 780 |
4004 - 33' Diameter / 12,006-25,227 bu.
| Ring Height | Max. Bu. Capacity 12" Plenum | Eave Height | Peak Height | Capacity (Cubic Feet) | Metric Tons 800 kg/m3 | Metric Tons 721 kg/m3 | Metric Tons 640 kg/m3 | Eave Height (Meters) | Peak Height (Meters) | Max. Capacity (Cubic Meters) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4 | 12,006 | 14'9" | 24'4" | 14,937 | 359 | 323 | 287 | 4.5 | 7.42 | 423 |
| 5 | 14,651 | 18'5" | 28'0" | 18,040 | 433 | 390 | 347 | 5.61 | 8.55 | 511 |
| 6 | 17,295 | 22'1" | 31'8" | 21,143 | 508 | 458 | 406 | 6.73 | 9.68 | 599 |
| 7 | 19,939 | 25'9" | 35'4" | 24,246 | 582 | 525 | 466 | 7.85 | 10.81 | 687 |
| 8 | 22,583 | 29'5" | 39'0" | 27,349 | 657 | 592 | 525 | 8.97 | 11.94 | 774 |
| 9 | 25,227 | 33'1" | 42'8" | 30,452 | 731 | 659 | 585 | 10.08 | 13.07 | 862 |
4004 - 36' Diameter / 14,516-33,396 bu.
| Ring Height | Max. Bu. Capacity 12" Plenum | Eave Height | Peak Height | Capacity (Cubic Feet) | Metric Tons 800 kg/m3 | Metric Tons 721 kg/m3 | Metric Tons 640 kg/m3 | Eave Height (Meters) | Peak Height (Meters) | Max. Capacity (Cubic Meters) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4 | 14,516 | 14'9" | 25'3" | 18,043 | 433 | 390 | 347 | 4.5 | 7.67 | 511 |
| 5 | 17,662 | 18'5" | 28'11" | 21,735 | 522 | 470 | 418 | 5.61 | 8.79 | 615 |
| 6 | 20,809 | 22'1" | 32'7" | 25,428 | 611 | 550 | 488 | 6.73 | 9.91 | 720 |
| 7 | 23,956 | 25'9" | 36'3" | 29,121 | 699 | 630 | 559 | 7.85 | 11.02 | 825 |
| 8 | 27,102 | 29'5" | 39'11" | 32,814 | 788 | 710 | 630 | 8.97 | 12.14 | 929 |
| 9 | 30,249 | 33'1" | 43'7" | 36,507 | 877 | 790 | 701 | 10.08 | 13.26 | 1,034 |
| 10 | 33,396 | 36'9" | 47'3" | 40,200 | 965 | 870 | 772 | 11.2 | 14.38 | 1,138 |
4004 - 42' Diameter / 20,375-46,073 bu.
| Ring Height | Max. Bu. Capacity 12" Plenum | Eave Height | Peak Height | Capacity (Cubic Feet) | Metric Tons 800 kg/m3 | Metric Tons 721 kg/m3 | Metric Tons 640 kg/m3 | Eave Height (Meters) | Peak Height (Meters) | Max. Capacity (Cubic Meters) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4 | 20,375 | 14'9" | 27'0" | 25,283 | 607 | 547 | 486 | 4.5 | 8.2 | 716 |
| 5 | 24,658 | 18'5" | 30'8" | 30,309 | 728 | 656 | 582 | 5.61 | 9.32 | 858 |
| 6 | 28,941 | 22'1" | 34'4" | 35,336 | 848 | 765 | 679 | 6.73 | 10.44 | 1,001 |
| 7 | 33,224 | 25'9" | 38'0" | 40,362 | 969 | 873 | 775 | 7.85 | 11.56 | 1,143 |
| 8 | 37,507 | 29'5" | 41'8" | 45,389 | 1,090 | 982 | 872 | 8.97 | 12.68 | 1,285 |
| 9 | 41,790 | 33'1" | 45'4" | 50,415 | 1,211 | 1,091 | 969 | 10.08 | 13.8 | 1,428 |
| 10 | 46,073 | 36'9" | 49'0" | 55,441 | 1,331 | 1,200 | 1,065 | 11.2 | 14.92 | 1,570 |
4004 - 48' Diameter / 27,419-60,984 bu.
| Ring Height | Max. Bu. Capacity 12" Plenum | Eave Height | Peak Height | Capacity (Cubic Feet) | Metric Tons 800 kg/m3 | Metric Tons 721 kg/m3 | Metric Tons 640 kg/m3 | Eave Height (Meters) | Peak Height (Meters) | Max. Capacity (Cubic Meters) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4 | 27,419 | 14'9" | 28'9" | 33,970 | 816 | 735 | 653 | 4.5 | 8.76 | 962 |
| 5 | 33,014 | 18'5" | 32'5" | 40,535 | 973 | 877 | 779 | 5.61 | 9.88 | 1,148 |
| 6 | 38,608 | 22'1" | 36'1" | 47,100 | 1,131 | 1,019 | 905 | 6.73 | 11 | 1,334 |
| 7 | 44,202 | 25'9" | 39'9" | 53,665 | 1,289 | 1,161 | 1,031 | 7.85 | 12.12 | 1,520 |
| 8 | 49,796 | 29'5" | 43'5" | 60,230 | 1,446 | 1,303 | 1,157 | 8.97 | 13.24 | 1,706 |
| 9 | 55,539 | 33'1" | 47'1" | 66,795 | 1,604 | 1,446 | 1,283 | 10.08 | 14.36 | 1,891 |
| 10 | 60,984 | 36'9" | 50'9" | 73,360 | 1,761 | 1,588 | 1,409 | 11.2 | 15.48 | 2,077 |
4024
4024 - 12' Diameter / 1,061-4,558 bu.
| Ring Height | Max. Bu. Capacity 12" Plenum | Eave Height | Peak Height | Capacity (Cubic Feet) | Metric Tons 800 kg/m3 | Metric Tons 721 kg/m3 | Metric Tons 640 kg/m3 | Eave Height (Meters) | Peak Height (Meters) | Max. Capacity (Cubic Meters) |
|---|---|---|---|---|---|---|---|---|---|---|
| 3 | 1,061 | 11'1" | 14'7" | 1,358 | 33 | 29 | 26 | 3.38 | 4.45 | 38 |
| 4 | 1,411 | 14'9" | 18'3" | 1,768 | 42 | 38 | 34 | 4.5 | 5.56 | 50 |
| 5 | 1,761 | 18'5" | 21'11" | 2,178 | 52 | 47 | 42 | 5.61 | 6.68 | 62 |
| 6 | 2,110 | 22'1" | 25'7" | 2,589 | 62 | 56 | 50 | 6.73 | 7.79 | 73 |
| 7 | 2,460 | 25'9" | 29'3" | 2,999 | 72 | 65 | 58 | 7.85 | 8.91 | 85 |
| 8 | 2,810 | 29'5" | 32'11" | 3,409 | 82 | 74 | 65 | 8.97 | 10.03 | 97 |
| 9 | 3,159 | 33'1" | 36'7" | 3,820 | 92 | 83 | 73 | 10.08 | 11.15 | 108 |
| 10 | 3,509 | 36'9" | 40'3" | 4,230 | 102 | 92 | 81 | 11.2 | 12.26 | 120 |
4024 - 15' Diameter / 1,698-7,161 bu.
| Ring Height | Max. Bu. Capacity 12" Plenum | Eave Height | Peak Height | Capacity (Cubic Feet) | Metric Tons 800 kg/m3 | Metric Tons 721 kg/m3 | Metric Tons 640 kg/m3 | Eave Height (Meters) | Peak Height (Meters) | Max. Capacity (Cubic Meters) |
|---|---|---|---|---|---|---|---|---|---|---|
| 3 | 1,698 | 11'1" | 15'5" | 2,168 | 52 | 47 | 42 | 3.38 | 4.69 | 61 |
| 4 | 2,244 | 14'9" | 19'1" | 2,809 | 67 | 61 | 54 | 4.5 | 5.82 | 80 |
| 5 | 2,791 | 18'5" | 22'9" | 3,450 | 83 | 75 | 66 | 5.61 | 6.95 | 98 |
| 6 | 3,338 | 22'1" | 26'5" | 4,091 | 98 | 89 | 79 | 6.73 | 8.08 | 116 |
| 7 | 3,883 | 25'9" | 30'1" | 4,732 | 114 | 102 | 91 | 7.85 | 9.21 | 134 |
| 8 | 4,429 | 29'5" | 33'9" | 5,373 | 129 | 116 | 103 | 8.97 | 10.34 | 152 |
| 9 | 4,976 | 33'1" | 37'5" | 6,014 | 144 | 130 | 116 | 10.08 | 11.47 | 170 |
| 10 | 5,522 | 36'9" | 41'1" | 6,655 | 160 | 144 | 128 | 11.2 | 12.6 | 188 |
4024 - 18' Diameter / 2,502-10,369 bu.
| Ring Height | Max. Bu. Capacity 12" Plenum | Eave Height | Peak Height | Capacity (Cubic Feet) | Metric Tons 800 kg/m3 | Metric Tons 721 kg/m3 | Metric Tons 640 kg/m3 | Eave Height (Meters) | Peak Height (Meters) | Max. Capacity (Cubic Meters) |
|---|---|---|---|---|---|---|---|---|---|---|
| 3 | 2,502 | 11'1" | 16'3" | 3,188 | 77 | 69 | 61 | 3.38 | 4.95 | 90 |
| 4 | 3,288 | 14'9" | 19'11" | 4,111 | 99 | 89 | 79 | 4.5 | 6.07 | 116 |
| 5 | 4,075 | 18'5" | 23'7" | 5,034 | 121 | 109 | 97 | 5.61 | 7.19 | 143 |
| 6 | 4,862 | 22'1" | 27'3" | 5,958 | 143 | 129 | 114 | 6.73 | 8.31 | 169 |
| 7 | 5,648 | 25'9" | 30'11" | 6,881 | 165 | 149 | 132 | 7.85 | 9.43 | 195 |
| 8 | 6,435 | 29'5" | 34'7" | 7,804 | 187 | 169 | 150 | 8.97 | 10.55 | 221 |
| 9 | 7,222 | 33'1" | 38'3" | 8,727 | 210 | 189 | 168 | 10.08 | 11.67 | 247 |
| 10 | 8,009 | 36'9" | 41'11" | 9,650 | 232 | 209 | 185 | 11.2 | 12.79 | 273 |
4024 - 21' Diameter / 3,482-14,190 bu.
| Ring Height | Max. Bu. Capacity 12" Plenum | Eave Height | Peak Height | Capacity (Cubic Feet) | Metric Tons 800 kg/m3 | Metric Tons 721 kg/m3 | Metric Tons 640 kg/m3 | Eave Height (Meters) | Peak Height (Meters) | Max. Capacity (Cubic Meters) |
|---|---|---|---|---|---|---|---|---|---|---|
| 3 | 3,482 | 11'1" | 17'2" | 4,430 | 106 | 96 | 85 | 3.38 | 5.23 | 125 |
| 4 | 4,553 | 14'9" | 20'10" | 5,686 | 137 | 123 | 109 | 4.5 | 6.35 | 161 |
| 5 | 5,624 | 18'5" | 24'6" | 6,943 | 167 | 150 | 133 | 5.61 | 7.47 | 197 |
| 6 | 6,695 | 22'1" | 28'2" | 8,200 | 197 | 177 | 158 | 6.73 | 8.59 | 232 |
| 7 | 7,765 | 25'9" | 31'10" | 9,456 | 227 | 205 | 182 | 7.85 | 9.71 | 268 |
| 8 | 8,836 | 29'5" | 35'6" | 10,713 | 257 | 232 | 206 | 8.97 | 10.83 | 303 |
| 9 | 9,907 | 33'1" | 39'2" | 11,969 | 287 | 259 | 230 | 10.08 | 11.95 | 339 |
| 10 | 10,978 | 36'9" | 42'10" | 13,226 | 318 | 286 | 254 | 11.2 | 13.07 | 375 |
4024 - 24' Diameter / 4,649-18,635 bu.
| Ring Height | Max. Bu. Capacity 12" Plenum | Eave Height | Peak Height | Capacity (Cubic Feet) | Metric Tons 800 kg/m3 | Metric Tons 721 kg/m3 | Metric Tons 640 kg/m3 | Eave Height (Meters) | Peak Height (Meters) | Max. Capacity (Cubic Meters) |
|---|---|---|---|---|---|---|---|---|---|---|
| 3 | 4,649 | 11'1" | 18'0" | 5,904 | 142 | 128 | 113 | 3.38 | 5.48 | 167 |
| 4 | 6,048 | 14'9" | 21'8" | 7,545 | 181 | 163 | 145 | 4.5 | 6.6 | 214 |
| 5 | 7,446 | 18'5" | 25'4" | 9,187 | 221 | 199 | 176 | 5.61 | 7.72 | 260 |
| 6 | 8,845 | 22'1" | 29'0" | 10,828 | 260 | 234 | 208 | 6.73 | 8.84 | 307 |
| 7 | 10,244 | 25'9" | 32'8" | 12,469 | 299 | 270 | 240 | 7.85 | 9.96 | 353 |
| 8 | 11,642 | 29'5" | 36'4" | 14,111 | 339 | 305 | 271 | 8.97 | 11.08 | 400 |
| 9 | 13,041 | 33'1" | 40'0" | 15,752 | 378 | 341 | 303 | 10.08 | 12.2 | 446 |
| 10 | 14,439 | 36'9" | 43'8" | 17,393 | 418 | 376 | 334 | 11.2 | 13.32 | 493 |
4024 - 27' Diameter / 6,012-23,712 bu.
| Ring Height | Max. Bu. Capacity 12" Plenum | Eave Height | Peak Height | Capacity (Cubic Feet) | Metric Tons 800 kg/m3 | Metric Tons 721 kg/m3 | Metric Tons 640 kg/m3 | Eave Height (Meters) | Peak Height (Meters) | Max. Capacity (Cubic Meters) |
|---|---|---|---|---|---|---|---|---|---|---|
| 3 | 6,012 | 11'1" | 18'11" | 7,622 | 183 | 165 | 146 | 3.38 | 5.66 | 216 |
| 4 | 7,782 | 14'9" | 22'7" | 9,699 | 233 | 210 | 186 | 4.5 | 6.78 | 275 |
| 5 | 9,552 | 18'5" | 26'3" | 11,777 | 283 | 255 | 226 | 5.61 | 7.9 | 333 |
| 6 | 11,322 | 22'1" | 29'11" | 13,854 | 333 | 300 | 266 | 6.73 | 9.01 | 392 |
| 7 | 13,092 | 25'9" | 33'7" | 15,931 | 383 | 345 | 306 | 7.85 | 10.14 | 451 |
| 8 | 14,862 | 29'5" | 37'3" | 18,008 | 432 | 390 | 346 | 8.97 | 11.25 | 510 |
| 9 | 16,632 | 33'1" | 40'11" | 20,086 | 482 | 435 | 386 | 10.08 | 12.37 | 569 |
| 10 | 18,402 | 36'9" | 44'7" | 22,163 | 532 | 480 | 426 | 11.2 | 13.49 | 628 |
4024 - 30' Diameter / 7,580-46,913 bu.
| Ring Height | Max. Bu. Capacity 12" Plenum | Eave Height | Peak Height | Capacity (Cubic Feet) | Metric Tons 800 kg/m3 | Metric Tons 721 kg/m3 | Metric Tons 640 kg/m3 | Eave Height (Meters) | Peak Height (Meters) | Max. Capacity (Cubic Meters) |
|---|---|---|---|---|---|---|---|---|---|---|
| 3 | 7,580 | 11'1" | 19'10" | 9,595 | 230 | 208 | 184 | 3.38 | 6.05 | 272 |
| 4 | 9,765 | 14'9" | 23'6" | 12,160 | 292 | 263 | 234 | 4.5 | 7.16 | 344 |
| 5 | 11,950 | 18'5" | 27'2" | 14,724 | 354 | 319 | 283 | 5.61 | 8.27 | 417 |
| 6 | 14,135 | 22'1" | 30'10" | 17,289 | 415 | 374 | 332 | 6.73 | 9.38 | 490 |
| 7 | 16,321 | 25'9" | 34'6" | 19,853 | 477 | 430 | 381 | 7.85 | 10.49 | 562 |
| 8 | 18,506 | 29'5" | 38'2" | 22,418 | 538 | 485 | 431 | 8.97 | 11.6 | 635 |
| 9 | 20,691 | 33'1" | 41'10" | 24,982 | 600 | 541 | 480 | 10.08 | 12.71 | 707 |
| 10 | 22,876 | 36'9" | 45'6" | 27,547 | 661 | 596 | 529 | 11.2 | 13.82 | 780 |
4024 - 33' Diameter / 9,362-56,956 bu.
| Ring Height | Max. Bu. Capacity 12" Plenum | Eave Height | Peak Height | Capacity (Cubic Feet) | Metric Tons 800 kg/m3 | Metric Tons 721 kg/m3 | Metric Tons 640 kg/m3 | Eave Height (Meters) | Peak Height (Meters) | Max. Capacity (Cubic Meters) |
|---|---|---|---|---|---|---|---|---|---|---|
| 3 | 9,362 | 11'1" | 20'8" | 11,834 | 284 | 256 | 227 | 3.38 | 6.29 | 335 |
| 4 | 12,006 | 14'9" | 24'4" | 14,937 | 359 | 323 | 287 | 4.5 | 7.42 | 423 |
| 5 | 14,651 | 18'5" | 28'0" | 18,040 | 433 | 390 | 347 | 5.61 | 8.55 | 511 |
| 6 | 17,295 | 22'1" | 31'8" | 21,143 | 508 | 458 | 406 | 6.73 | 9.68 | 599 |
| 7 | 19,939 | 25'9" | 35'4" | 24,246 | 582 | 525 | 466 | 7.85 | 10.81 | 687 |
| 8 | 22,583 | 29'5" | 39'0" | 27,349 | 657 | 592 | 525 | 8.97 | 11.94 | 774 |
| 9 | 25,227 | 33'1" | 42'8" | 30,452 | 731 | 659 | 585 | 10.08 | 13.07 | 862 |
| 10 | 27,871 | 36'9" | 46'4" | 33,555 | 806 | 726 | 645 | 11.2 | 14.2 | 950 |
4024 - 36' Diameter / 11,369-68,009 bu.
| Ring Height | Max. Bu. Capacity 12" Plenum | Eave Height | Peak Height | Capacity (Cubic Feet) | Metric Tons 800 kg/m3 | Metric Tons 721 kg/m3 | Metric Tons 640 kg/m3 | Eave Height (Meters) | Peak Height (Meters) | Max. Capacity (Cubic Meters) |
|---|---|---|---|---|---|---|---|---|---|---|
| 3 | 11,369 | 11'1" | 21'7" | 14,350 | 345 | 311 | 276 | 3.38 | 6.55 | 406 |
| 4 | 14,516 | 14'9" | 25'3" | 18,043 | 433 | 390 | 347 | 4.5 | 7.67 | 511 |
| 5 | 17,662 | 18'5" | 28'11" | 21,735 | 522 | 470 | 418 | 5.61 | 8.79 | 615 |
| 6 | 20,809 | 22'1" | 32'7" | 25,428 | 611 | 550 | 488 | 6.73 | 9.91 | 720 |
| 7 | 23,956 | 25'9" | 36'3" | 29,121 | 699 | 630 | 559 | 7.85 | 11.02 | 825 |
| 8 | 27,102 | 29'5" | 39'11" | 32,814 | 788 | 710 | 630 | 8.97 | 12.14 | 929 |
| 9 | 30,249 | 33'1" | 43'7" | 36,507 | 877 | 790 | 701 | 10.08 | 13.26 | 1,034 |
| 10 | 33,396 | 36'9" | 47'3" | 40,200 | 965 | 870 | 772 | 11.2 | 14.38 | 1,138 |
4024 - 42' Diameter / 16,092-93,186 bu.
| Ring Height | Max. Bu. Capacity 12" Plenum | Eave Height | Peak Height | Capacity (Cubic Feet) | Metric Tons 800 kg/m3 | Metric Tons 721 kg/m3 | Metric Tons 640 kg/m3 | Eave Height (Meters) | Peak Height (Meters) | Max. Capacity (Cubic Meters) |
|---|---|---|---|---|---|---|---|---|---|---|
| 3 | 16,092 | 11'1" | 23'4" | 20,256 | 486 | 438 | 389 | 3.38 | 7.1 | 574 |
| 4 | 20,375 | 14'9" | 27'0" | 25,283 | 607 | 547 | 486 | 4.5 | 8.2 | 716 |
| 5 | 24,658 | 18'5" | 30'8" | 30,309 | 728 | 656 | 582 | 5.61 | 9.32 | 858 |
| 6 | 28,941 | 22'1" | 34'4" | 35,336 | 848 | 765 | 679 | 6.73 | 10.44 | 1,001 |
| 7 | 33,224 | 25'9" | 38'0" | 40,362 | 969 | 873 | 775 | 7.85 | 11.56 | 1,143 |
| 8 | 37,507 | 29'5" | 41'8" | 45,389 | 1,090 | 982 | 872 | 8.97 | 12.68 | 1,285 |
| 9 | 41,790 | 33'1" | 45'4" | 50,415 | 1,211 | 1,091 | 969 | 10.08 | 13.8 | 1,428 |
| 10 | 46,073 | 36'9" | 49'0" | 55,441 | 1,331 | 1,200 | 1,065 | 11.2 | 14.92 | 1,570 |
4024 - 48' Diameter / 21,825-122,519 bu.
| Ring Height | Max. Bu. Capacity 12" Plenum | Eave Height | Peak Height | Capacity (Cubic Feet) | Metric Tons 800 kg/m3 | Metric Tons 721 kg/m3 | Metric Tons 640 kg/m3 | Eave Height (Meters) | Peak Height (Meters) | Max. Capacity (Cubic Meters) |
|---|---|---|---|---|---|---|---|---|---|---|
| 3 | 21,825 | 11'1" | 25'1" | 27,404 | 658 | 593 | 526 | 3.39 | 7.64 | 776 |
| 4 | 27,419 | 14'9" | 28'9" | 33,970 | 816 | 735 | 653 | 4.5 | 8.76 | 962 |
| 5 | 33,014 | 18'5" | 32’5" | 40,535 | 973 | 877 | 779 | 5.61 | 9.88 | 1,148 |
| 6 | 38,608 | 22'1" | 36'1" | 47,100 | 1,131 | 1,019 | 905 | 6.73 | 11 | 1,334 |
| 7 | 44,202 | 25'9" | 39'9" | 53,665 | 1,289 | 1,161 | 1,031 | 7.85 | 12.12 | 1,520 |
| 8 | 49,796 | 29'5" | 43'5" | 60,230 | 1,446 | 1,303 | 1,157 | 8.97 | 13.24 | 1,706 |
| 9 | 55,539 | 33'1" | 47'1" | 66,795 | 1,604 | 1,446 | 1,283 | 10.08 | 14.36 | 1,891 |
| 10 | 60,984 | 36'9" | 50'9" | 73,360 | 1,761 | 1,588 | 1,409 | 11.2 | 15.48 | 2,077 |
4024 - 54' Diameter / 28,644-156,084 bu.
| Ring Height | Max. Bu. Capacity 12" Plenum | Eave Height | Peak Height | Capacity (Cubic Feet) | Metric Tons 800 kg/m3 | Metric Tons 721 kg/m3 | Metric Tons 640 kg/m3 | Eave Height (Meters) | Peak Height (Meters) | Max. Capacity (Cubic Meters) |
|---|---|---|---|---|---|---|---|---|---|---|
| 3 | 28,644 | 11'1" | 25'5" | 35,882 | 862 | 777 | 689 | 3.39 | 7.74 | 1,016 |
| 4 | 35,724 | 14'9" | 29'1" | 44,191 | 1,061 | 956 | 849 | 4.5 | 8.86 | 1,251 |
| 5 | 42,804 | 18'5" | 32'9" | 52,500 | 1,261 | 1,136 | 1,009 | 5.61 | 9.98 | 1,487 |
| 6 | 49,884 | 22'1" | 36'5" | 60,809 | 1,460 | 1,316 | 1,168 | 6.73 | 11.09 | 1,722 |
| 7 | 56,964 | 25'9" | 40'1" | 69,118 | 1,660 | 1,496 | 1,328 | 7.85 | 12.21 | 1,957 |
| 8 | 64,044 | 29'5" | 43'9" | 77,427 | 1,859 | 1,676 | 1,487 | 8.97 | 13.33 | 2,192 |
| 9 | 71,124 | 33'1" | 47'5" | 85,736 | 2,059 | 1,855 | 1,647 | 10.08 | 14.45 | 2,428 |
| 10 | 78,204 | 36'9" | 51'1" | 94,045 | 2,258 | 2,035 | 1,807 | 11.2 | 15.56 | 2,663 |
4024 - 60' Diameter / 36,624-193,957 bu.
| Ring Height | Max. Bu. Capacity 12" Plenum | Eave Height | Peak Height | Capacity (Cubic Feet) | Metric Tons 800 kg/m3 | Metric Tons 721 kg/m3 | Metric Tons 640 kg/m3 | Eave Height (Meters) | Peak Height (Meters) | Max. Capacity (Cubic Meters) |
|---|---|---|---|---|---|---|---|---|---|---|
| 3 | 36,624 | 11'1" | 27'2" | 45,779 | 1,099 | 991 | 879 | 3.39 | 8.28 | 1,296 |
| 4 | 45,365 | 14'9" | 30'10" | 56,037 | 1,346 | 1,213 | 1,077 | 4.5 | 9.4 | 1,587 |
| 5 | 54,105 | 18'5" | 34'6" | 66,295 | 1,592 | 1,435 | 1,274 | 5.61 | 10.52 | 1,877 |
| 6 | 62,846 | 22'1" | 38'2" | 76,553 | 1,838 | 1,657 | 1,471 | 6.73 | 11.63 | 2,168 |
| 7 | 71,587 | 25'9" | 41'10" | 86,811 | 2,084 | 1,879 | 1,668 | 7.85 | 12.75 | 2,458 |
| 8 | 80,328 | 29'5" | 45'6" | 97,069 | 2,331 | 2,101 | 1,865 | 8.97 | 13.87 | 2,749 |
| 9 | 89,068 | 33'1" | 49'2" | 107,327 | 2,577 | 2,323 | 2,062 | 10.08 | 14.99 | 3,039 |
| 10 | 97,809 | 36'9" | 52'10" | 117,585 | 2,823 | 2,545 | 2,259 | 11.2 | 16.11 | 3,330 |
4022 & 4032
4022 & 4032 - 18' Diameter / 7,222-10,655 bu.
| Ring Height | Max. Bu. Capacity No Plenum | Eave Height | Peak Height | Capacity (Cubic Feet) | Metric Tons 800 kg/m3 | Metric Tons 721 kg/m3 | Metric Tons 640 kg/m3 | Eave Height (Meters) | Peak Height (Meters) | Max. Capacity (Cubic Meters) |
|---|---|---|---|---|---|---|---|---|---|---|
| 12 | 7,222 | 32'2" | 37'3" | 8,475 | 204 | 183 | 163 | 9.8 | 11.37 | 240 |
| 13 | 7,794 | 34'10" | 39'11" | 9,147 | 220 | 198 | 176 | 10.62 | 12.19 | 259 |
| 14 | 8,366 | 37'5" | 42'7" | 9,818 | 236 | 212 | 189 | 11.43 | 13 | 278 |
| 15 | 8,938 | 40'2" | 45'3" | 10,490 | 252 | 227 | 202 | 12.24 | 13.81 | 297 |
| 16 | 9,510 | 42'10" | 47'11" | 11,161 | 268 | 242 | 214 | 13.06 | 14.63 | 316 |
| 17 | 10,082 | 45'5" | 50'7" | 11,833 | 284 | 256 | 227 | 13.87 | 15.44 | 335 |
| 18 | 10,655 | 48'2" | 53'3" | 12,504 | 300 | 271 | 240 | 14.68 | 16.25 | 354 |
4022 & 4032 - 21' Diameter / 9,907-17,694 bu.
| Ring Height | Max. Bu. Capacity No Plenum | Eave Height | Peak Height | Capacity (Cubic Feet) | Metric Tons 800 kg/m3 | Metric Tons 721 kg/m3 | Metric Tons 640 kg/m3 | Eave Height (Meters) | Peak Height (Meters) | Max. Capacity (Cubic Meters) |
|---|---|---|---|---|---|---|---|---|---|---|
| 12 | 9,907 | 32'2" | 38'2" | 11,627 | 279 | 252 | 223 | 9.8 | 11.65 | 329 |
| 13 | 10,686 | 34'10" | 41'10" | 12,541 | 301 | 271 | 241 | 10.62 | 12.47 | 355 |
| 14 | 11,464 | 37'5" | 43'6" | 13,454 | 323 | 291 | 258 | 11.43 | 13.28 | 381 |
| 15 | 12,243 | 40'2" | 46'2" | 14,368 | 345 | 311 | 276 | 12.24 | 14.09 | 407 |
| 16 | 13,022 | 42'10" | 48'10" | 15,282 | 367 | 331 | 294 | 13.06 | 14.91 | 433 |
| 17 | 13,801 | 45'5" | 51'6" | 16,196 | 389 | 351 | 311 | 13.87 | 15.72 | 459 |
| 18 | 14,579 | 48'2" | 54'2" | 17,110 | 411 | 370 | 329 | 14.68 | 16.53 | 485 |
| 19 | 15,358 | 50'10" | 56'10" | 18,024 | 433 | 390 | 346 | 15.49 | 17.34 | 510 |
| 20 | 16,137 | 53'6" | 59'6" | 18,938 | 455 | 410 | 364 | 16.31 | 18.16 | 536 |
| 21 | 16,915 | 56'2" | 62'2" | 19,852 | 477 | 430 | 381 | 17.12 | 18.97 | 562 |
| 22 | 17,694 | 58'10" | 64'10" | 20,766 | 499 | 449 | 399 | 17.93 | 19.78 | 588 |
4022 & 4032 - 24' Diameter / 13,041-28,297 bu.
| Ring Height | Max. Bu. Capacity No Plenum | Eave Height | Peak Height | Capacity (Cubic Feet) | Metric Tons 800 kg/m3 | Metric Tons 721 kg/m3 | Metric Tons 640 kg/m3 | Eave Height (Meters) | Peak Height (Meters) | Max. Capacity (Cubic Meters) |
|---|---|---|---|---|---|---|---|---|---|---|
| 12 | 13,041 | 32'2" | 39'0" | 15,304 | 367 | 331 | 294 | 9.8 | 11.91 | 433 |
| 13 | 14,058 | 34'10" | 41'8" | 16,498 | 396 | 357 | 317 | 10.62 | 12.73 | 467 |
| 14 | 15,075 | 37'6" | 44'4" | 17,692 | 425 | 383 | 340 | 11.43 | 13.54 | 501 |
| 15 | 16,092 | 40'2" | 47'0" | 18,885 | 453 | 409 | 363 | 12.24 | 14.35 | 535 |
| 16 | 17,109 | 42'10" | 49'8" | 20,079 | 482 | 435 | 386 | 13.06 | 15.17 | 569 |
| 17 | 18,126 | 45'6" | 53'4" | 21,272 | 511 | 460 | 409 | 13.87 | 15.98 | 602 |
| 18 | 19,143 | 48'2" | 55'0" | 22,466 | 539 | 486 | 432 | 14.68 | 16.79 | 636 |
| 19 | 20,160 | 50'10" | 57'8" | 23,660 | 568 | 512 | 455 | 15.49 | 17.6 | 670 |
| 20 | 21,177 | 53'6" | 60'4" | 24,853 | 597 | 538 | 477 | 16.31 | 18.42 | 704 |
| 21 | 22,195 | 56'2" | 63'0" | 26,047 | 625 | 564 | 500 | 17.12 | 19.23 | 738 |
| 22 | 23,212 | 58'10" | 65'8" | 27,241 | 654 | 590 | 523 | 17.93 | 20.04 | 771 |
| 23 | 24,229 | 61'6" | 68'4" | 28,434 | 683 | 615 | 546 | 18.75 | 20.86 | 805 |
| 24 | 25,246 | 64'2" | 71'0" | 29,628 | 711 | 641 | 569 | 19.56 | 21.67 | 839 |
| 25 | 26,263 | 66'10" | 73'8" | 30,822 | 740 | 667 | 592 | 20.37 | 22.48 | 873 |
| 26 | 27,280 | 69'6" | 76'4" | 32,015 | 769 | 693 | 615 | 21.19 | 23.29 | 907 |
| 27 | 28,297 | 72'2" | 79'0" | 33,209 | 791 | 719 | 638 | 22 | 24.11 | 940 |
4022 & 4032 - 27' Diameter / 16,632-39,803 bu.
| Ring Height | Max. Bu. Capacity No Plenum | Eave Height | Peak Height | Capacity (Cubic Feet) | Metric Tons 800 kg/m3 | Metric Tons 721 kg/m3 | Metric Tons 640 kg/m3 | Eave Height (Meters) | Peak Height (Meters) | Max. Capacity (Cubic Meters) |
|---|---|---|---|---|---|---|---|---|---|---|
| 12 | 16,632 | 32'2" | 39'11" | 19,519 | 469 | 422 | 375 | 9.8 | 12.19 | 553 |
| 13 | 17,919 | 34'10" | 42'7" | 21,030 | 505 | 455 | 404 | 10.62 | 13.01 | 596 |
| 14 | 19,207 | 37'6" | 45'3" | 22,541 | 541 | 488 | 433 | 11.43 | 13.82 | 638 |
| 15 | 20,494 | 40'2" | 47'11" | 24,051 | 578 | 520 | 462 | 12.24 | 14.63 | 681 |
| 16 | 21,781 | 42'10" | 50'7" | 25,562 | 614 | 553 | 491 | 13.06 | 15.45 | 724 |
| 17 | 23,068 | 45'6" | 53'3" | 27,073 | 650 | 586 | 520 | 13.87 | 16.26 | 767 |
| 18 | 24,356 | 48'2" | 55'11" | 28,584 | 686 | 619 | 549 | 14.68 | 17.07 | 809 |
| 19 | 25,643 | 50'10" | 58'7" | 30,094 | 723 | 651 | 578 | 15.49 | 17.88 | 852 |
| 20 | 26,930 | 53'6" | 61'3" | 31,605 | 759 | 684 | 607 | 16.31 | 18.7 | 895 |
| 21 | 28,218 | 56'2" | 63'11" | 33,116 | 795 | 717 | 636 | 17.12 | 19.51 | 938 |
| 22 | 29,505 | 58'10" | 66'7" | 34,626 | 831 | 749 | 665 | 17.93 | 20.32 | 981 |
| 23 | 30,792 | 61'6" | 69'3" | 36,137 | 868 | 782 | 694 | 18.75 | 21.14 | 1,023 |
| 24 | 32,079 | 64'2" | 71'11" | 37,648 | 904 | 815 | 723 | 19.56 | 21.95 | 1,066 |
| 25 | 33,367 | 66'10" | 74'7" | 39,159 | 940 | 847 | 752 | 20.37 | 22.76 | 1,109 |
| 26 | 34,654 | 69'6" | 77'3" | 40,669 | 977 | 880 | 781 | 21.18 | 23.57 | 1,152 |
| 27 | 35,941 | 72'2" | 79'11" | 42,180 | 1,013 | 913 | 810 | 22 | 24.39 | 1,194 |
| 28 | 37,229 | 74'10" | 82'7" | 43,691 | 1,049 | 945 | 839 | 22.81 | 25.2 | 1,237 |
| 29 | 38,516 | 77'6" | 85'3" | 45,202 | 1,085 | 978 | 868 | 23.63 | 26.01 | 1,280 |
| 30 | 39,803 | 80'2" | 87'11" | 46,712 | 1,122 | 1,011 | 897 | 24.44 | 26.83 | 1,323 |
4022 & 4032 - 30' Diameter / 20,691-52,476 bu.
| Ring Height | Max. Bu. Capacity No Plenum | Eave Height | Peak Height | Capacity (Cubic Feet) | Metric Tons 800 kg/m3 | Metric Tons 721 kg/m3 | Metric Tons 640 kg/m3 | Eave Height (Meters) | Peak Height (Meters) | Max. Capacity (Cubic Meters) |
|---|---|---|---|---|---|---|---|---|---|---|
| 12 | 20,691 | 32'2" | 40'10" | 24,283 | 583 | 526 | 466 | 9.8 | 12.44 | 688 |
| 13 | 22,280 | 34'10" | 43'6" | 26,148 | 628 | 566 | 502 | 10.62 | 13.26 | 740 |
| 14 | 23,870 | 37'6" | 46'2" | 28,013 | 673 | 606 | 538 | 11.43 | 14.07 | 793 |
| 15 | 25,459 | 40'2" | 48'10" | 29,878 | 717 | 647 | 574 | 12.24 | 14.88 | 846 |
| 16 | 27,048 | 42'10" | 51'6" | 31,743 | 762 | 687 | 610 | 13.06 | 15.7 | 899 |
| 17 | 28,637 | 45'6" | 54'2" | 33,608 | 807 | 727 | 646 | 13.87 | 16.51 | 952 |
| 18 | 30,226 | 48'2" | 56'10" | 35,473 | 852 | 768 | 681 | 14.68 | 17.32 | 1,004 |
| 19 | 31,816 | 50'10" | 59'6" | 37,338 | 897 | 808 | 717 | 15.49 | 18.13 | 1,057 |
| 20 | 33,405 | 53'6" | 62'2" | 39,203 | 941 | 848 | 753 | 16.31 | 18.95 | 1,110 |
| 21 | 34,994 | 56'2" | 64'10" | 41,069 | 986 | 889 | 789 | 17.12 | 19.76 | 1,163 |
| 22 | 36,583 | 58'10" | 67'6" | 42,934 | 1,031 | 929 | 825 | 17.93 | 20.57 | 1,216 |
| 23 | 38,173 | 61'6" | 70'2" | 44,799 | 1,076 | 969 | 861 | 18.75 | 21.39 | 1,269 |
| 24 | 39,762 | 64'2" | 72'10" | 46,664 | 1,120 | 1,010 | 896 | 19.56 | 22.2 | 1,321 |
| 25 | 41,351 | 66'10" | 75'6" | 48,529 | 1,165 | 1,050 | 932 | 20.37 | 23.01 | 1,374 |
| 26 | 42,940 | 69'6" | 78'2" | 50,394 | 1,210 | 1,091 | 968 | 21.18 | 23.82 | 1,427 |
| 27 | 44,529 | 72'2" | 80'10" | 52,259 | 1,255 | 1,131 | 1,004 | 22 | 24.64 | 1,480 |
| 28 | 46,119 | 74'10" | 83'6" | 54,124 | 1,300 | 1,171 | 1,040 | 22.81 | 25.45 | 1,533 |
| 29 | 47,708 | 77'6" | 86'2" | 55,989 | 1,344 | 1,212 | 1,076 | 23.62 | 26.26 | 1,585 |
| 30 | 49,297 | 80'2" | 88'10" | 57,854 | 1,389 | 1,252 | 1,111 | 24.43 | 27.07 | 1,638 |
| 31 | 50,886 | 82'10" | 91'6" | 59,720 | 1,434 | 1,292 | 1,147 | 25.24 | 27.88 | 1,691 |
| 32 | 52,476 | 85'6" | 94'2" | 61,585 | 1,479 | 1,333 | 1,183 | 26.06 | 28.7 | 1,744 |
4022 & 4032 - 33' Diameter / 25,227-63,687 bu.
| Ring Height | Max. Bu. Capacity No Plenum | Eave Height | Peak Height | Capacity (Cubic Feet) | Metric Tons 800 kg/m3 | Metric Tons 721 kg/m3 | Metric Tons 640 kg/m3 | Eave Height (Meters) | Peak Height (Meters) | Max. Capacity (Cubic Meters) |
|---|---|---|---|---|---|---|---|---|---|---|
| 12 | 25,227 | 32'2" | 41'8" | 29,606 | 711 | 641 | 568 | 9.8 | 12.72 | 837 |
| 13 | 27,150 | 34'10" | 44'4" | 31,863 | 765 | 690 | 611 | 10.62 | 13.54 | 900 |
| 14 | 29,073 | 37'6" | 47'0" | 34,120 | 819 | 739 | 654 | 11.43 | 14.35 | 963 |
| 15 | 30,996 | 40'2" | 49'8" | 36,377 | 873 | 788 | 697 | 12.24 | 15.16 | 1,026 |
| 16 | 32,919 | 42'10" | 52'4" | 38,634 | 927 | 837 | 740 | 13.06 | 15.98 | 1,089 |
| 17 | 34,842 | 45'6" | 55'0" | 40,891 | 981 | 886 | 783 | 13.87 | 16.79 | 1,152 |
| 18 | 36,765 | 48'2" | 57'8" | 43,148 | 1,035 | 935 | 826 | 14.68 | 17.6 | 1,215 |
| 19 | 38,688 | 50'10" | 60'4" | 45,405 | 1,089 | 984 | 869 | 15.49 | 18.41 | 1,278 |
| 20 | 40,611 | 53'6" | 63'0" | 47,662 | 1,143 | 1,033 | 912 | 16.31 | 19.23 | 1,341 |
| 21 | 42,534 | 56'2" | 65'8" | 49,919 | 1,197 | 1,082 | 955 | 17.12 | 20.04 | 1,404 |
| 22 | 44,457 | 58'10" | 68'4" | 52,176 | 1,251 | 1,131 | 998 | 17.93 | 20.85 | 1,467 |
| 23 | 46,380 | 61'6" | 71'0" | 54,433 | 1,305 | 1,180 | 1,041 | 18.75 | 21.67 | 1,530 |
| 24 | 48,303 | 64'2" | 73'8" | 56,690 | 1,359 | 1,229 | 1,084 | 19.56 | 22.48 | 1,593 |
| 25 | 50,226 | 66'10" | 76'4" | 58,947 | 1,413 | 1,278 | 1,127 | 20.37 | 23.29 | 1,656 |
| 26 | 52,149 | 69'6" | 79'0" | 61,204 | 1,467 | 1,327 | 1,170 | 21.18 | 24.1 | 1,719 |
| 27 | 54,072 | 72'2" | 81'8" | 63,461 | 1,521 | 1,376 | 1,213 | 22 | 24.92 | 1,782 |
| 28 | 55,995 | 74'10" | 84'4" | 65,718 | 1,575 | 1,425 | 1,256 | 22.81 | 25.73 | 1,845 |
| 29 | 57,918 | 77'6" | 87'0" | 67,975 | 1,629 | 1,474 | 1,299 | 23.62 | 26.54 | 1,908 |
| 30 | 59,841 | 80'2" | 89'8" | 70,232 | 1,683 | 1,523 | 1,342 | 24.43 | 27.35 | 1,971 |
| 31 | 61,764 | 82'10" | 92'4" | 72,489 | 1,737 | 1,572 | 1,385 | 25.25 | 28.17 | 2,034 |
| 32 | 63,687 | 85'6" | 95'0" | 74,746 | 1,791 | 1,621 | 1,428 | 26.06 | 28.98 | 2,097 |
4022 & 4032 - 36' Diameter / 30,249-76,019 bu.
| Ring Height | Max. Bu. Capacity No Plenum | Eave Height | Peak Height | Capacity (Cubic Feet) | Metric Tons 800 kg/m3 | Metric Tons 721 kg/m3 | Metric Tons 640 kg/m3 | Eave Height (Meters) | Peak Height (Meters) | Max. Capacity (Cubic Meters) |
|---|---|---|---|---|---|---|---|---|---|---|
| 12 | 30,249 | 32'2" | 42'7" | 35,500 | 852 | 768 | 682 | 9.8 | 12.98 | 1,005 |
| 13 | 32,538 | 34'10" | 45'3" | 38,186 | 917 | 826 | 734 | 10.62 | 13.8 | 1,081 |
| 14 | 34,826 | 37'6" | 47'11" | 40,871 | 981 | 885 | 785 | 11.43 | 14.61 | 1,157 |
| 15 | 37,114 | 40'2" | 50'7" | 43,557 | 1,046 | 943 | 837 | 12.24 | 15.42 | 1,233 |
| 16 | 39,403 | 42'10" | 53'3" | 46,243 | 1,110 | 1,001 | 888 | 13.06 | 16.24 | 1,309 |
| 17 | 41,691 | 45'6" | 55'11" | 48,928 | 1,175 | 1,059 | 940 | 13.87 | 17.05 | 1,386 |
| 18 | 43,980 | 48'2" | 58'7" | 51,614 | 1,239 | 1,117 | 992 | 14.68 | 17.86 | 1,462 |
| 19 | 46,268 | 50'10" | 61'3" | 54,300 | 1,304 | 1,175 | 1,043 | 15.49 | 18.67 | 1,538 |
| 20 | 48,557 | 53'6" | 63'11" | 56,986 | 1,368 | 1,233 | 1,095 | 16.31 | 19.49 | 1,614 |
| 21 | 50,845 | 56'2" | 66'7" | 59,671 | 1,433 | 1,291 | 1,146 | 17.12 | 20.3 | 1,690 |
| 22 | 53,134 | 58'10" | 69'3" | 62,357 | 1,497 | 1,349 | 1,198 | 17.93 | 21.11 | 1,766 |
| 23 | 55,422 | 61'6" | 71'11" | 65,043 | 1,562 | 1,408 | 1,250 | 18.75 | 21.93 | 1,842 |
| 24 | 57,711 | 64'2" | 74'7" | 67,729 | 1,626 | 1,466 | 1,301 | 19.56 | 22.74 | 1,918 |
| 25 | 59,999 | 66'10" | 77'3" | 70,414 | 1,691 | 1,524 | 1,353 | 20.37 | 23.55 | 1,994 |
| 26 | 62,288 | 69'6" | 79'11" | 73,100 | 1,755 | 1,582 | 1,404 | 21.18 | 24.36 | 2,070 |
| 27 | 64,576 | 72'2" | 82'7" | 75,786 | 1,820 | 1,640 | 1,456 | 22 | 25.18 | 2,146 |
| 28 | 66,865 | 74'10" | 85'3" | 78,482 | 1,884 | 1,698 | 1,507 | 22.81 | 25.99 | 2,222 |
| 29 | 69,153 | 77'6" | 87'11" | 81,157 | 1,949 | 1,756 | 1,559 | 23.62 | 26.8 | 2,298 |
| 30 | 71,442 | 80'2" | 90'7" | 83,843 | 2,013 | 1,814 | 1,611 | 24.43 | 27.61 | 2,374 |
| 31 | 73,730 | 82'10" | 93'3" | 86,529 | 2,078 | 1,873 | 1,662 | 25.24 | 28.42 | 2,450 |
| 32 | 76,019 | 85'6" | 95'11" | 89,215 | 2,142 | 1,931 | 1,714 | 26.06 | 29.23 | 2,526 |
4022 & 4032 - 42' Diameter / 41,790-104,088 bu.
| Ring Height | Max. Bu. Capacity No Plenum | Eave Height | Peak Height | Capacity (Cubic Feet) | Metric Tons 800 kg/m3 | Metric Tons 721 kg/m3 | Metric Tons 640 kg/m3 | Eave Height (Meters) | Peak Height (Meters) | Max. Capacity (Cubic Meters) |
|---|---|---|---|---|---|---|---|---|---|---|
| 12 | 41,790 | 32'2" | 44'4" | 49,044 | 1,178 | 1,061 | 942 | 9.8 | 13.49 | 1,389 |
| 13 | 44,905 | 34'10" | 47'0" | 52,700 | 1,265 | 1,140 | 1,012 | 10.62 | 14.31 | 1,492 |
| 14 | 48,020 | 37'6" | 49'8" | 56,355 | 1,353 | 1,220 | 1,083 | 11.43 | 15.12 | 1,596 |
| 15 | 51,135 | 40'2" | 52'4" | 60,011 | 1,441 | 1,299 | 1,153 | 12.24 | 15.93 | 1,699 |
| 16 | 54,250 | 42'10" | 54'0" | 63,667 | 1,529 | 1,378 | 1,223 | 13.06 | 16.44 | 1,803 |
| 17 | 57,365 | 45'6" | 56'8" | 67,322 | 1,617 | 1,457 | 1,293 | 13.87 | 17.25 | 1,906 |
| 18 | 60,479 | 48'2" | 59'4" | 70,978 | 1,704 | 1,536 | 1,364 | 14.68 | 18.06 | 2,010 |
| 19 | 63,594 | 50'10" | 62'0" | 74,633 | 1,792 | 1,615 | 1,434 | 15.49 | 18.88 | 2,113 |
| 20 | 66,709 | 53'6" | 64'8" | 78,289 | 1,880 | 1,694 | 1,504 | 16.31 | 19.69 | 2,217 |
| 21 | 69,824 | 56'2" | 67'4" | 81,944 | 1,968 | 1,773 | 1,574 | 17.12 | 20.5 | 2,320 |
| 22 | 72,939 | 58'10" | 70'0" | 85,600 | 2,055 | 1,852 | 1,644 | 17.93 | 21.31 | 2,424 |
| 23 | 76,054 | 61'6" | 72'8" | 89,256 | 2,143 | 1,932 | 1,715 | 18.75 | 22.13 | 2,527 |
| 24 | 79,169 | 64'2" | 75'4" | 92,911 | 2,231 | 2,011 | 1,785 | 19.56 | 22.94 | 2,631 |
| 25 | 82,284 | 66'10" | 78"0" | 96,567 | 2,319 | 2,090 | 1,855 | 20.37 | 23.75 | 2,734 |
| 26 | 85,399 | 69'6" | 80'8" | 100,222 | 2,406 | 2,169 | 1,925 | 21.18 | 24.57 | 2,838 |
| 27 | 88,513 | 72'2" | 83'4" | 103,878 | 2,494 | 2,248 | 1,996 | 22 | 25.38 | 2,941 |
| 28 | 91,628 | 74'10" | 86'0" | 107,534 | 2,582 | 2,327 | 2,066 | 22.81 | 26.19 | 3,045 |
| 29 | 94,743 | 77'6" | 88'8" | 111,189 | 2,670 | 2,406 | 2,136 | 23.62 | 27 | 3,149 |
| 30 | 97,858 | 80'2" | 91'4" | 114,845 | 2,758 | 2,485 | 2,206 | 24.43 | 27.82 | 3,252 |
| 31 | 100,973 | 82'10" | 94'0" | 118,500 | 2,845 | 2,564 | 2,276 | 25.25 | 28.63 | 3,356 |
| 32 | 104,088 | 85'6" | 96'8" | 122,156 | 2,933 | 2,644 | 2,347 | 26.06 | 29.44 | 3,459 |
4022 & 4032 - 48' Diameter / 55,390-136,758 bu.
| Ring Height | Max. Bu. Capacity No Plenum | Eave Height | Peak Height | Capacity (Cubic Feet) | Metric Tons 800 kg/m3 | Metric Tons 721 kg/m3 | Metric Tons 640 kg/m3 | Eave Height (Meters) | Peak Height (Meters) | Max. Capacity (Cubic Meters) |
|---|---|---|---|---|---|---|---|---|---|---|
| 12 | 55,390 | 32'2" | 46'1" | 65,005 | 1,561 | 1,407 | 1,249 | 9.8 | 14.03 | 1,841 |
| 13 | 59,458 | 34'10" | 48'9" | 69,779 | 1,676 | 1,510 | 1,341 | 10.62 | 14.84 | 1,976 |
| 14 | 63,527 | 37'6" | 51'5" | 74,554 | 1,790 | 1,613 | 1,432 | 11.43 | 15.66 | 2,111 |
| 15 | 67,595 | 40'2" | 53'1" | 79,329 | 1,905 | 1,717 | 1,524 | 12.24 | 16.17 | 2,246 |
| 16 | 71,664 | 42'10" | 55'9" | 84,103 | 2,019 | 1,820 | 1,616 | 13.06 | 16.98 | 2,382 |
| 17 | 75,732 | 45'6" | 58'5" | 88,878 | 2,134 | 1,923 | 1,707 | 13.87 | 17.8 | 2,517 |
| 18 | 79,800 | 48'2" | 61'1" | 93,653 | 2,249 | 2,027 | 1,799 | 14.68 | 18.61 | 2,652 |
| 19 | 83,869 | 50'10" | 63'9" | 98,427 | 2,363 | 2,130 | 1,891 | 15.49 | 19.42 | 2,787 |
| 20 | 87,937 | 53'6" | 66'5" | 103,202 | 2,478 | 2,233 | 1,983 | 16.31 | 20.23 | 2,922 |
| 21 | 92,006 | 56'2" | 69'1" | 107,977 | 2,593 | 2,337 | 2,074 | 17.12 | 21.05 | 3,058 |
| 22 | 96,074 | 58'10" | 71'9" | 112,751 | 2,707 | 2,440 | 2,166 | 17.93 | 21.86 | 3,193 |
| 23 | 100,143 | 61'6" | 74'5" | 117,526 | 2,822 | 2,543 | 2,258 | 18.75 | 22.67 | 3,328 |
| 24 | 104,211 | 64'2" | 77'1" | 122,300 | 2,937 | 2,647 | 2,349 | 19.56 | 23.48 | 3,463 |
| 25 | 108,279 | 66'10" | 79'9" | 127,075 | 3,051 | 2,750 | 2,441 | 20.37 | 24.3 | 3,598 |
| 26 | 112,348 | 69'6" | 82'5" | 131,850 | 3,166 | 2,853 | 2,533 | 21.18 | 25.11 | 3,734 |
| 27 | 116,416 | 72'2" | 85'1" | 133,624 | 3,281 | 2,957 | 2,625 | 22 | 25.92 | 3,859 |
| 28 | 120,485 | 74'10" | 87'9" | 141,399 | 3,395 | 3,060 | 2,716 | 22.81 | 26.74 | 4,004 |
| 29 | 124,553 | 77'6" | 90'5" | 146,174 | 3,510 | 3,163 | 2,808 | 23.62 | 27.55 | 4,139 |
| 30 | 128,622 | 80'2" | 93'1" | 150,948 | 3,625 | 3,267 | 2,900 | 24.43 | 28.36 | 4,274 |
| 31 | 132,690 | 82'10" | 95'9" | 155,723 | 3,739 | 3,370 | 2,992 | 25.25 | 29.17 | 4,410 |
| 32 | 136,758 | 85'6" | 98'5" | 160,498 | 3,854 | 3,473 | 3,083 | 26.06 | 29.99 | 4,545 |
4022 & 4032 - 54' Diameter / 71,124-215,299 bu.
| Ring Height | Max. Bu. Capacity No Plenum | Eave Height | Peak Height | Capacity (Cubic Feet) | Metric Tons 800 kg/m3 | Metric Tons 721 kg/m3 | Metric Tons 640 kg/m3 | Eave Height (Meters) | Peak Height (Meters) | Max. Capacity (Cubic Meters) |
|---|---|---|---|---|---|---|---|---|---|---|
| 12 | 71,124 | 32'2" | 46'5" | 83,470 | 2,004 | 1,806 | 1,604 | 9.8 | 14.14 | 2,364 |
| 13 | 76,273 | 34'10" | 49'1" | 89,513 | 2,149 | 1,937 | 1,720 | 10.62 | 14.95 | 2,535 |
| 14 | 81,422 | 37'6" | 51'9" | 95,556 | 2,294 | 2,068 | 1,836 | 11.43 | 15.76 | 2,706 |
| 15 | 86,571 | 40'2" | 54'5" | 101,599 | 2,440 | 2,199 | 1,952 | 12.24 | 16.58 | 2,877 |
| 16 | 91,720 | 42'10" | 57'1" | 107,642 | 2,585 | 2,329 | 2,068 | 13.06 | 17.39 | 3,048 |
| 17 | 96,870 | 45'6" | 59'9" | 113,685 | 2,730 | 2,460 | 2,184 | 13.87 | 18.2 | 3,219 |
| 18 | 102,019 | 48'2" | 62'5" | 119,728 | 2,875 | 2,591 | 2,300 | 14.68 | 19.01 | 3,390 |
| 19 | 107,168 | 50'10" | 65'1" | 125,771 | 3,020 | 2,722 | 2,416 | 15.49 | 19.83 | 3,561 |
| 20 | 112,317 | 53'6" | 67'9" | 131,813 | 3,165 | 2,853 | 2,532 | 16.31 | 20.64 | 3,733 |
| 21 | 117,466 | 56'2" | 70'5" | 137,856 | 3,310 | 2,983 | 2,648 | 17.12 | 21.45 | 3,904 |
| 22 | 122,615 | 58'10" | 73'1" | 143,899 | 3,455 | 3,114 | 2,764 | 17.93 | 22.27 | 4,075 |
| 23 | 127,764 | 61'6" | 75'9" | 149,942 | 3,600 | 3,245 | 2,880 | 18.75 | 23.08 | 4,246 |
| 24 | 132,913 | 64'2" | 78'5" | 155,985 | 3,745 | 3,376 | 2,997 | 19.56 | 23.89 | 4,417 |
| 25 | 138,062 | 66'10" | 81'1" | 162,028 | 3,891 | 3,506 | 3,113 | 20.37 | 24.7 | 4,588 |
| 26 | 143,212 | 69'6" | 83'9" | 168,071 | 4,036 | 3,637 | 3,229 | 21.18 | 25.52 | 4,759 |
| 27 | 148,362 | 72'2" | 86'5" | 174,114 | 4,181 | 3,768 | 3,345 | 22 | 26.33 | 4,930 |
| 28 | 153,510 | 74'10" | 89'1" | 180,157 | 4,326 | 3,899 | 3,461 | 22.81 | 27.14 | 5,101 |
| 29 | 158,659 | 77'6" | 91'9" | 186,200 | 4,471 | 4,030 | 3,577 | 23.62 | 27.96 | 5,273 |
| 30 | 163,808 | 80'2" | 94'5" | 192,243 | 4,616 | 4,160 | 3,693 | 24.43 | 28.77 | 5,444 |
| 31 | 168,957 | 82'10" | 97'1" | 198,285 | 4,761 | 4,291 | 3,809 | 25.25 | 29.58 | 5,615 |
| 32 | 174,106 | 85'6" | 99'9" | 204,328 | 4,906 | 4,422 | 3,925 | 26.06 | 30.39 | 5,786 |
| 33 | 179,255 | 88'2" | 102'5" | 210,371 | 5,051 | 4,553 | 4,041 | 26.87 | 31.21 | 5,957 |
| 34 | 184,404 | 90'10" | 105'1" | 216,414 | 5,196 | 4,683 | 4,157 | 27.69 | 32.02 | 6,128 |
| 35 | 189,553 | 93'6" | 107'9" | 222,457 | 5,342 | 4,814 | 4,274 | 28.5 | 32.83 | 6,299 |
| 36 | 194,703 | 96'2" | 110'5" | 228,500 | 5,487 | 4,945 | 4,390 | 29.31 | 33.65 | 6,470 |
| 37 | 199,852 | 98'10" | 113'1" | 234,543 | 5,632 | 5,076 | 4,506 | 30.12 | 34.46 | 6,642 |
| 38 | 205,001 | 101'6 | 115'9" | 240,586 | 5,777 | 5,207 | 4,622 | 30.93 | 35.27 | 6,814 |
| 39 | 210,150 | 104'2" | 118'5" | 246,629 | 5,922 | 5,338 | 4,738 | 31.74 | 36.08 | 6,986 |
| 40 | 215,299 | 106'10" | 121'1" | 252,672 | 6,067 | 5,469 | 4,854 | 32.55 | 36.9 | 7,158 |
4022 & 4032 - 60' Diameter / 89,068-267,062 bu.
| Ring Height | Max. Bu. Capacity No Plenum | Eave Height | Peak Height | Capacity (Cubic Feet) | Metric Tons 800 kg/m3 | Metric Tons 721 kg/m3 | Metric Tons 640 kg/m3 | Eave Height (Meters) | Peak Height (Meters) | Max. Capacity (Cubic Meters) |
|---|---|---|---|---|---|---|---|---|---|---|
| 12 | 89,068 | 32'2" | 48'2" | 104,529 | 2,510 | 2,262 | 2,008 | 9.8 | 14.68 | 2,960 |
| 13 | 95,425 | 34'10" | 50'10" | 111,990 | 2,689 | 2,424 | 2,151 | 10.62 | 15.49 | 3,171 |
| 14 | 101,782 | 37'6" | 53'6" | 119,450 | 2,868 | 2,585 | 2,295 | 11.43 | 16.31 | 3,382 |
| 15 | 108,139 | 40'2" | 56'2" | 126,910 | 3,047 | 2,746 | 2,438 | 12.24 | 17.12 | 3,594 |
| 16 | 114,496 | 42'10" | 58'10" | 134,371 | 3,226 | 2,908 | 2,581 | 13.06 | 17.93 | 3,805 |
| 17 | 120,853 | 45'6" | 61'6" | 141,831 | 3,406 | 3,069 | 2,725 | 13.87 | 18.74 | 4,016 |
| 18 | 127,210 | 48'2" | 64'2" | 149,292 | 3,585 | 3,231 | 2,868 | 14.68 | 19.56 | 4,227 |
| 19 | 133,567 | 50'10" | 66'10" | 156,752 | 3,764 | 3,392 | 3,011 | 15.49 | 20.37 | 4,439 |
| 20 | 139,924 | 53'6" | 69'6" | 164,212 | 3,943 | 3,554 | 3,155 | 16.31 | 21.18 | 4,650 |
| 21 | 146,281 | 56'2" | 72'2" | 171,673 | 4,122 | 3,715 | 3,298 | 17.12 | 21.99 | 4,861 |
| 22 | 152,638 | 58'10" | 74'10" | 179,133 | 4,301 | 3,877 | 3,441 | 17.93 | 22.81 | 5,072 |
| 23 | 158,994 | 61'6" | 77'6" | 186,593 | 4,480 | 4,038 | 3,585 | 18.75 | 23.62 | 5,284 |
| 24 | 165,351 | 64'2" | 80'2" | 194,054 | 4,660 | 4,200 | 3,728 | 19.56 | 24.43 | 5,495 |
| 25 | 171,708 | 66'10" | 82'10" | 201,514 | 4,839 | 4,361 | 3,871 | 20.37 | 25.25 | 5,706 |
| 26 | 178,065 | 69'6" | 85'6" | 208,975 | 5,018 | 4,522 | 4,015 | 21.18 | 26.06 | 5,918 |
| 27 | 184,422 | 72'2" | 88'2" | 216,435 | 5,197 | 4,684 | 4,158 | 22 | 26.87 | 6,129 |
| 28 | 190,779 | 74'10" | 90'10" | 223,895 | 5,376 | 4,845 | 4,301 | 22.81 | 27.68 | 6,340 |
| 29 | 197,136 | 77'6" | 93'6" | 231,356 | 5,555 | 5,007 | 4,445 | 23.62 | 28.5 | 6,551 |
| 30 | 203,493 | 80'2" | 96'2" | 238,816 | 5,734 | 5,168 | 4,588 | 24.43 | 29.31 | 6,763 |
| 31 | 209,850 | 82'10" | 98'10" | 246,277 | 5,913 | 5,330 | 4,731 | 25.25 | 30.12 | 6,974 |
| 32 | 216,207 | 85'6" | 101'6" | 253,737 | 6,093 | 5,491 | 4,874 | 26.06 | 30.94 | 7,185 |
| 33 | 222,564 | 88'2" | 104'2" | 261,197 | 6,272 | 5,653 | 5,048 | 26.87 | 31.75 | 7,396 |
| 34 | 228,921 | 90'10" | 106'10" | 268,658 | 6,451 | 5,814 | 5,161 | 27.69 | 32.56 | 7,608 |
| 35 | 235,277 | 93'6" | 109'6" | 276,118 | 6,630 | 5,976 | 5,304 | 28.5 | 33.37 | 7,819 |
| 36 | 241,634 | 96'2" | 112'2" | 283,578 | 6,809 | 6,137 | 5,448 | 29.31 | 34.19 | 8,030 |
| 37 | 247,991 | 98'10" | 114'10" | 291,039 | 6,988 | 6,298 | 5,591 | 30.12 | 35 | 8,241 |
| 38 | 254,348 | 101'6" | 117'6" | 298,500 | 7,167 | 6,459 | 5,734 | 30.93 | 35.81 | 8,452 |
| 39 | 260,705 | 104'2" | 120'2" | 305,961 | 7,346 | 6,620 | 5,877 | 31.74 | 36.63 | 8,663 |
| 40 | 267,062 | 106'10" | 122'10" | 313,422 | 7,525 | 6,781 | 6,020 | 32.55 | 37.44 | 8,874 |
4022 & 4032 - 72' Diameter / 131,890-388,201 bu.
| Ring Height | Max. Bu. Capacity No Plenum | Eave Height | Peak Height | Capacity (Cubic Feet) | Metric Tons 800 kg/m3 | Metric Tons 721 kg/m3 | Metric Tons 640 kg/m3 | Eave Height (Meters) | Peak Height (Meters) | Max. Capacity (Cubic Meters) |
|---|---|---|---|---|---|---|---|---|---|---|
| 12 | 131,890 | 32'2" | 50'8" | 154,784 | 3,717 | 3,350 | 2,973 | 9.8 | 15.43 | 4,383 |
| 13 | 141,044 | 34'10" | 53'4" | 165,527 | 3,975 | 3,582 | 3,180 | 10.62 | 16.25 | 4,687 |
| 14 | 150,197 | 37'5" | 56'0" | 176,269 | 4,233 | 3,815 | 3,386 | 11.43 | 17.06 | 4,991 |
| 15 | 159,351 | 40'2" | 58'8" | 187,012 | 4,490 | 4,047 | 3,593 | 12.24 | 17.87 | 5,296 |
| 16 | 168,505 | 42'10" | 61'4" | 197,755 | 4,748 | 4,280 | 3,799 | 13.06 | 18.69 | 5,600 |
| 17 | 177,659 | 45'6" | 64'0" | 208,498 | 5,006 | 4,512 | 4,005 | 13.87 | 19.5 | 5,904 |
| 18 | 186,813 | 48'2" | 66'8" | 219,241 | 5,264 | 4,745 | 4,212 | 14.68 | 20.31 | 6,208 |
| 19 | 195,967 | 50'10" | 69'4" | 229,984 | 5,522 | 4,977 | 4,418 | 15.49 | 21.12 | 6,512 |
| 20 | 205,121 | 53'6" | 72'0" | 240,727 | 5,780 | 5,210 | 4,625 | 16.31 | 21.94 | 6,817 |
| 21 | 214,275 | 56'2" | 74'8" | 251,470 | 6,038 | 5,442 | 4,831 | 17.12 | 22.75 | 7,121 |
| 22 | 223,429 | 58'10" | 77'4" | 262,213 | 6,296 | 5,675 | 5,037 | 17.93 | 23.56 | 7,425 |
| 23 | 232,583 | 61'6" | 80'0" | 272,956 | 6,554 | 5,907 | 5,244 | 18.75 | 24.38 | 7,729 |
| 24 | 241,737 | 64'2" | 82'8" | 283,699 | 6,812 | 6,140 | 5,450 | 19.56 | 25.19 | 8,033 |
| 25 | 250,891 | 66'10" | 85'4" | 294,442 | 7,070 | 6,372 | 5,656 | 20.37 | 26 | 8,338 |
| 26 | 260,045 | 69'6" | 88'0" | 305,185 | 7,328 | 6,605 | 5,863 | 21.18 | 26.81 | 8,642 |
| 27 | 269,199 | 72'2" | 90'8" | 315,928 | 7,586 | 6,837 | 6,069 | 22 | 27.63 | 8,946 |
| 28 | 278,353 | 74'10" | 93'4" | 326,671 | 7,844 | 7,070 | 6,276 | 22.81 | 28.44 | 9,250 |
| 29 | 287,507 | 77'6" | 96'0" | 337,414 | 8,102 | 7,302 | 6,482 | 23.62 | 29.25 | 9,554 |
| 30 | 296,661 | 80'2" | 98'8" | 348,157 | 8,360 | 7,535 | 6,688 | 24.43 | 30.07 | 9,859 |
| 31 | 305,815 | 82'10" | 101'4" | 358,900 | 8,618 | 7,767 | 6,895 | 25.25 | 30.88 | 10,163 |
| 32 | 314,969 | 85'6" | 104'0" | 369,643 | 8,876 | 7,999 | 7,101 | 26.06 | 31.69 | 10,467 |
| 33 | 324,123 | 88'2" | 106'8" | 380,386 | 9,134 | 8,232 | 7,307 | 26.87 | 32.5 | 10,771 |
| 34 | 333,277 | 90'10" | 109'4" | 391,128 | 9,392 | 8,464 | 7,514 | 27.69 | 33.32 | 11,076 |
| 35 | 342,431 | 93'6" | 112'0" | 401,871 | 9,650 | 8,697 | 7,720 | 28.5 | 34.13 | 11,380 |
| 36 | 351,585 | 96'2" | 114'8" | 412,614 | 9,908 | 8,929 | 7,927 | 29.31 | 34.94 | 11,684 |
| 37 | 360,739 | 98'10" | 117'4" | 423,357 | 10,165 | 9,162 | 8,133 | 30.12 | 35.75 | 11,988 |
| 38 | 369,893 | 101'6" | 120'0" | 434,100 | 10,422 | 9,395 | 8,339 | 30.93 | 36.57 | 12,292 |
| 39 | 379,047 | 104'2" | 122'8" | 444,843 | 10,679 | 9,628 | 8,545 | 31.74 | 37.38 | 12,596 |
| 40 | 388,201 | 106'10" | 125'4" | 455,586 | 10,936 | 9,861 | 8,751 | 32.55 | 38.19 | 12,900 |
4022 & 4032 - 75' Diameter / 144,094-422,207 bu.
| Ring Height | Max. Bu. Capacity No Plenum | Eave Height | Peak Height | Capacity (Cubic Feet) | Metric Tons 800 kg/m3 | Metric Tons 721 kg/m3 | Metric Tons 640 kg/m3 | Eave Height (Meters) | Peak Height (Meters) | Max. Capacity (Cubic Meters) |
|---|---|---|---|---|---|---|---|---|---|---|
| 12 | 144,094 | 32'2" | 51'6" | 169,107 | 4,061 | 3,660 | 3,249 | 9.8 | 15.7 | 4,789 |
| 13 | 154,027 | 34'10" | 54'3" | 180,764 | 4,340 | 3,912 | 3,473 | 10.62 | 16.52 | 5,119 |
| 14 | 163,960 | 37'6" | 56'11" | 192,421 | 4,620 | 4,164 | 3,697 | 11.43 | 17.33 | 5,449 |
| 15 | 173,892 | 40'2" | 59'6" | 204,077 | 4,900 | 4,416 | 3,920 | 12.24 | 18.14 | 5,779 |
| 16 | 183,825 | 42'10" | 62'3" | 215,734 | 5,180 | 4,669 | 4,144 | 13.06 | 18.95 | 6,109 |
| 17 | 193,758 | 45'6" | 64'11" | 227,391 | 5,460 | 4,921 | 4,368 | 13.87 | 19.77 | 6,439 |
| 18 | 203,690 | 48'2" | 67'6" | 239,048 | 5,740 | 5,173 | 4,592 | 14.68 | 20.58 | 6,769 |
| 19 | 213,623 | 50'10" | 70'3" | 250,705 | 6,020 | 5,426 | 4,816 | 15.49 | 21.39 | 7,099 |
| 20 | 223,556 | 53'6" | 72'11" | 262,362 | 6,300 | 5,678 | 5,040 | 16.31 | 22.2 | 7,429 |
| 21 | 233,488 | 56'2" | 75'6" | 274,019 | 6,580 | 5,930 | 5,264 | 17.12 | 23.02 | 7,759 |
| 22 | 243,421 | 58'10" | 78'3" | 285,675 | 6,860 | 6,182 | 5,488 | 17.93 | 23.83 | 8,089 |
| 23 | 253,354 | 61'6" | 80'11" | 297,332 | 7,139 | 6,435 | 5,712 | 18.75 | 24.64 | 8,420 |
| 24 | 263,287 | 64'2" | 83'6" | 308,989 | 7,419 | 6,687 | 5,936 | 19.56 | 25.46 | 8,750 |
| 25 | 273,219 | 66'10" | 86'3" | 320,646 | 7,699 | 6,939 | 6,160 | 20.37 | 26.27 | 9,080 |
| 26 | 283,152 | 69'6" | 88'11" | 332,303 | 7,979 | 7,191 | 6,384 | 21.18 | 27.08 | 9,410 |
| 27 | 293,085 | 72'2" | 91'6" | 343,960 | 8,259 | 7,444 | 6,608 | 22 | 27.89 | 9,740 |
| 28 | 303,017 | 74'10" | 94'3" | 355,616 | 8,539 | 7,696 | 6,832 | 22.81 | 28.71 | 10,070 |
| 29 | 312,950 | 77'6" | 96'11" | 367,273 | 8,819 | 7,948 | 7,056 | 23.62 | 29.52 | 10,400 |
| 30 | 322,883 | 80'2" | 99'6" | 378,930 | 9,099 | 8,200 | 7,280 | 24.43 | 30.33 | 10,730 |
| 31 | 332,815 | 82'10" | 102'3" | 390,587 | 9,379 | 8,453 | 7,503 | 25.25 | 31.15 | 11,060 |
| 32 | 342,748 | 85'6" | 104'11" | 402,244 | 9,658 | 8,705 | 7,727 | 26.06 | 31.96 | 11,390 |
| 33 | 352,681 | 88'2" | 107'6" | 413,901 | 9,938 | 8,957 | 7,951 | 26.87 | 32.77 | 11,720 |
| 34 | 362,613 | 90'10" | 110'3" | 425,558 | 10,218 | 9,210 | 8,175 | 27.69 | 33.58 | 12,050 |
| 35 | 372,546 | 93'6" | 112'11" | 437,214 | 10,498 | 9,462 | 8,399 | 28.5 | 34.4 | 12,381 |
| 36 | 382,479 | 96'2" | 115'6" | 448,871 | 10,778 | 9,714 | 8,623 | 29.31 | 35.21 | 12,711 |
| 37 | 392,411 | 98'10" | 118'3" | 460,528 | 11,058 | 9,966 | 8,847 | 30.12 | 36.02 | 13,041 |
| 38 | 402,343 | 101'6" | 120'11" | 472,185 | 11,338 | 10,218 | 9,071 | 30.93 | 36.84 | 13,371 |
| 39 | 412,275 | 104'2" | 123'6" | 483,842 | 11,618 | 10,470 | 9,295 | 31.74 | 37.65 | 13,701 |
| 40 | 422,207 | 106'10" | 126'3" | 495,499 | 11,898 | 10,722 | 9,519 | 32.55 | 38.46 | 14,031 |
4022 & 4032 - 78' Diameter / 156,918-457,730 bu.
| Ring Height | Max. Bu. Capacity No Plenum | Eave Height | Peak Height | Capacity (Cubic Feet) | Metric Tons 800 kg/m3 | Metric Tons 721 kg/m3 | Metric Tons 640 kg/m3 | Eave Height (Meters) | Peak Height (Meters) | Max. Capacity (Cubic Meters) |
|---|---|---|---|---|---|---|---|---|---|---|
| 12 | 156,918 | 32'2" | 52'5" | 184,156 | 4,422 | 3,985 | 3,538 | 9.8 | 15.97 | 5,215 |
| 13 | 167,661 | 34'10" | 55'1" | 196,764 | 4,725 | 4,258 | 3,780 | 10.62 | 16.78 | 5,572 |
| 14 | 178,404 | 37'6" | 57'9" | 209,372 | 5,027 | 4,531 | 4,022 | 11.43 | 17.59 | 5,929 |
| 15 | 189,147 | 40'2" | 60'5" | 221,981 | 5,330 | 4,804 | 4,264 | 12.24 | 18.41 | 6,286 |
| 16 | 199,891 | 42'10" | 63'1" | 234,589 | 5,633 | 5,077 | 4,507 | 13.06 | 19.22 | 6,643 |
| 17 | 210,634 | 45'6" | 65'9" | 247,197 | 5,936 | 5,350 | 4,749 | 13.87 | 20.03 | 7,000 |
| 18 | 221,377 | 48'2" | 68'5" | 259,805 | 6,238 | 5,622 | 4,991 | 14.68 | 20.84 | 7,357 |
| 19 | 232,120 | 50'10" | 71'1" | 272,413 | 6,541 | 5,895 | 5,233 | 15.49 | 21.66 | 7,714 |
| 20 | 242,863 | 53'6" | 73'9" | 285,021 | 6,844 | 6,168 | 5,475 | 16.31 | 22.47 | 8,071 |
| 21 | 253,607 | 56'2" | 76'5" | 297,629 | 7,147 | 6,441 | 5,718 | 17.12 | 23.28 | 8,428 |
| 22 | 264,350 | 58'10" | 79'1" | 310,237 | 7,449 | 6,714 | 5,960 | 17.93 | 24.1 | 8,785 |
| 23 | 275,093 | 61'6" | 81'9" | 322,845 | 7,752 | 6,987 | 6,202 | 18.75 | 24.91 | 9,142 |
| 24 | 285,836 | 64'2" | 84'5" | 335,453 | 8,055 | 7,260 | 6,444 | 19.56 | 25.72 | 9,499 |
| 25 | 296,579 | 66'10" | 87'1" | 348,061 | 8,357 | 7,532 | 6,686 | 20.37 | 26.53 | 9,856 |
| 26 | 307,322 | 69'6" | 89'9" | 360,669 | 8,660 | 7,805 | 6,929 | 21.18 | 27.35 | 10,213 |
| 27 | 318,066 | 72'2" | 92'5" | 373,277 | 8,963 | 8,078 | 7,171 | 22 | 28.16 | 10,570 |
| 28 | 328,809 | 74'10" | 95'1" | 385,885 | 9,266 | 8,351 | 7,413 | 22.81 | 28.97 | 10,927 |
| 29 | 339,552 | 77'6" | 97'9" | 398,493 | 9,568 | 8,624 | 7,655 | 23.62 | 29.78 | 11,284 |
| 30 | 350,295 | 80'2" | 100'5" | 411,101 | 9,871 | 8,897 | 7,898 | 24.43 | 30.6 | 11,641 |
| 31 | 361,038 | 82'10" | 103'1" | 423,709 | 10,174 | 9,170 | 8,140 | 25.25 | 31.41 | 11,998 |
| 32 | 371,782 | 85'6" | 105'9" | 436,317 | 10,477 | 9,442 | 8,382 | 26.06 | 32.22 | 12,355 |
| 33 | 382,525 | 88'2" | 108'5" | 448,925 | 10,779 | 9,715 | 8,624 | 26.87 | 33.04 | 12,712 |
| 34 | 393,268 | 90'10" | 111'1" | 461,533 | 11,082 | 9,988 | 8,866 | 27.69 | 33.85 | 13,069 |
| 35 | 404,011 | 93'6" | 113'9" | 474,141 | 11,385 | 10,261 | 9,109 | 28.5 | 34.66 | 13,426 |
| 36 | 414,754 | 96'2" | 116'5" | 486,749 | 11,688 | 10,534 | 9,351 | 29.31 | 35.47 | 13,783 |
| 37 | 425,498 | 98'10" | 119'1" | 499,358 | 11,990 | 10,807 | 9,593 | 30.12 | 36.29 | 14,140 |
| 38 | 436,242 | 101'6" | 121'9" | 511,967 | 12,292 | 11,080 | 9,835 | 30.93 | 37.1 | 14,497 |
| 39 | 446,986 | 104'2" | 124'5" | 524,576 | 12,594 | 11,353 | 10,077 | 31.74 | 37.91 | 14,854 |
| 40 | 457,730 | 106'10" | 127'1" | 537,185 | 12,896 | 11,626 | 10,319 | 32.55 | 38.73 | 15,211 |
4022 & 4032 - 90' Diameter / 214,588-615,077 bu.
| Ring Height | Max. Bu. Capacity No Plenum | Eave Height | Peak Height | Capacity (Cubic Feet) | Metric Tons 800 kg/m3 | Metric Tons 721 kg/m3 | Metric Tons 640 kg/m3 | Eave Height (Meters) | Peak Height (Meters) | Max. Capacity (Cubic Meters) |
|---|---|---|---|---|---|---|---|---|---|---|
| 12 | 214,588 | 32'2" | 56'0" | 251,837 | 6,047 | 5,450 | 4,838 | 9.8 | 17.05 | 7,131 |
| 13 | 228,891 | 34'10" | 58'8" | 268,623 | 6,450 | 5,813 | 5,160 | 10.62 | 17.87 | 7,607 |
| 14 | 243,194 | 37'6" | 61'4" | 285,409 | 6,853 | 6,177 | 5,483 | 11.43 | 18.68 | 8,082 |
| 15 | 257,497 | 40'2" | 64'0" | 302,195 | 7,256 | 6,540 | 5,805 | 12.24 | 19.49 | 8,557 |
| 16 | 271,800 | 42'10" | 66'8" | 318,981 | 7,659 | 6,903 | 6,128 | 13.06 | 20.3 | 9,033 |
| 17 | 286,103 | 45'6" | 69'4" | 335,766 | 8,062 | 7,266 | 6,450 | 13.87 | 21.12 | 9,508 |
| 18 | 300,406 | 48'2" | 72'0" | 352,552 | 8,465 | 7,630 | 6,773 | 14.68 | 21.93 | 9,983 |
| 19 | 314,709 | 50'10" | 74'8" | 369,338 | 8,868 | 7,993 | 7,095 | 15.49 | 22.74 | 10,458 |
| 20 | 329,012 | 53'6" | 77'4" | 386,124 | 9,271 | 8,356 | 7,418 | 16.31 | 23.56 | 10,934 |
| 21 | 343,316 | 56'2" | 80'0" | 402,910 | 9,674 | 8,719 | 7,740 | 17.12 | 24.37 | 11,409 |
| 22 | 357,619 | 58'10" | 82'8" | 419,696 | 10,078 | 9,083 | 8,063 | 17.93 | 25.18 | 11,884 |
| 23 | 371,922 | 61'6" | 85'4" | 436,482 | 10,481 | 9,446 | 8,385 | 18.75 | 25.99 | 12,360 |
| 24 | 386,225 | 64'2" | 88'0" | 453,267 | 10,884 | 9,809 | 8,708 | 19.56 | 26.81 | 12,835 |
| 25 | 400,528 | 66'10" | 90'8" | 470,053 | 11,287 | 10,173 | 9,030 | 20.37 | 27.62 | 13,310 |
| 26 | 414,831 | 69'6" | 93'4" | 486,839 | 11,690 | 10,536 | 9,353 | 21.18 | 28.43 | 13,786 |
| 27 | 429,134 | 72'2" | 96'0" | 503,625 | 12,093 | 10,899 | 9,675 | 22 | 29.25 | 14,261 |
| 28 | 443,437 | 74'10" | 98'8" | 520,411 | 12,496 | 11,262 | 9,997 | 22.81 | 30.06 | 14,736 |
| 29 | 457,740 | 77'6" | 101'4" | 537,197 | 12,899 | 11,626 | 10,320 | 23.62 | 30.87 | 15,212 |
| 30 | 472,043 | 80'2" | 104'0" | 553,983 | 13,302 | 11,989 | 10,642 | 24.43 | 31.68 | 15,687 |
| 31 | 486,346 | 82'10" | 106'8" | 570,768 | 13,705 | 12,352 | 10,965 | 25.25 | 32.5 | 16,162 |
| 32 | 500,649 | 85'6" | 109'4" | 587,554 | 14,108 | 12,715 | 11,287 | 26.06 | 33.31 | 16,638 |
| 33 | 514,952 | 88'2" | 112'0" | 604,340 | 14,511 | 13,079 | 11,610 | 26.87 | 34.12 | 17,113 |
| 34 | 529,255 | 90'10" | 114'8" | 621,126 | 14,914 | 13,442 | 11,932 | 27.69 | 34.93 | 17,588 |
| 35 | 543,558 | 93'6" | 117'4" | 637,912 | 15,317 | 13,805 | 12,255 | 28.5 | 35.75 | 18,064 |
| 36 | 557,861 | 96'2" | 120'0" | 654,698 | 15,720 | 14,168 | 12,577 | 29.31 | 36.56 | 18,539 |
| 37 | 572,165 | 98'10" | 122'8" | 671,484 | 16,123 | 14,532 | 12,900 | 30.12 | 37.37 | 19,014 |
| 38 | 586,469 | 101'6" | 125'4" | 688,270 | 16,526 | 14,896 | 13,223 | 30.93 | 38.21 | 19,489 |
| 39 | 600,773 | 104'2" | 128'0" | 705,056 | 16,929 | 15,260 | 13,546 | 31.74 | 39 | 19,964 |
| 40 | 615,077 | 106'10" | 130'8" | 721,842 | 17,332 | 15,624 | 13,869 | 32.55 | 39.81 | 20,439 |
4022 & 4032 - 105' Diameter / 301,731-846,837 bu.
| Ring Height | Max. Bu. Capacity No Plenum | Eave Height | Peak Height | Capacity (Cubic Feet) | Metric Tons 800 kg/m3 | Metric Tons 721 kg/m3 | Metric Tons 640 kg/m3 | Eave Height (Meters) | Peak Height (Meters) | Max. Capacity (Cubic Meters) |
|---|---|---|---|---|---|---|---|---|---|---|
| 12 | 301,731 | 32'2" | 60'4" | 354,107 | 8,503 | 7,663 | 6,803 | 9.8 | 18.38 | 10,027 |
| 13 | 321,199 | 34'10" | 63'0" | 376,955 | 9,051 | 8,158 | 7,242 | 10.62 | 19.19 | 10,674 |
| 14 | 340,667 | 37'6" | 65'8" | 399,802 | 9,600 | 8,652 | 7,680 | 11.43 | 20.01 | 11,321 |
| 15 | 360,135 | 40'2" | 68'4" | 422,649 | 10,148 | 9,147 | 8,119 | 12.24 | 20.82 | 11,968 |
| 16 | 379,603 | 42'10" | 71'0" | 445,497 | 10,697 | 9,641 | 8,558 | 13.06 | 21.63 | 12,615 |
| 17 | 399,071 | 45'6" | 73'8" | 468,344 | 11,246 | 10,136 | 8,997 | 13.87 | 22.45 | 13,262 |
| 18 | 418,540 | 48'2" | 76'4" | 491,192 | 11,794 | 10,630 | 9,436 | 14.68 | 23.26 | 13,909 |
| 19 | 438,008 | 50'10" | 79'0" | 514,039 | 12,343 | 11,124 | 9,875 | 15.49 | 24.07 | 14,556 |
| 20 | 457,476 | 53'6" | 81'8" | 536,886 | 12,891 | 11,619 | 10,314 | 16.31 | 24.88 | 15,203 |
| 21 | 476,944 | 56'2" | 84'4" | 559,734 | 13,440 | 12,113 | 10,753 | 17.12 | 25.7 | 15,850 |
| 22 | 496,412 | 58'10" | 87'0" | 582,581 | 13,989 | 12,608 | 11,192 | 17.93 | 26.51 | 16,497 |
| 23 | 515,880 | 61'6" | 89'8" | 605,429 | 14,537 | 13,102 | 11,631 | 18.75 | 27.32 | 17,144 |
| 24 | 535,348 | 64'2" | 92'4" | 628,276 | 15,086 | 13,597 | 12,070 | 19.56 | 28.13 | 17,791 |
| 25 | 554,816 | 66'10" | 95'0" | 651,124 | 15,634 | 14,091 | 12,509 | 20.37 | 28.95 | 18,438 |
| 26 | 574,284 | 69'6" | 97'8" | 673,971 | 16,183 | 14,586 | 12,947 | 21.18 | 29.76 | 19,085 |
| 27 | 593,752 | 72'2" | 100'4" | 696,818 | 16,732 | 15,080 | 13,386 | 22 | 30.57 | 19,732 |
| 28 | 613,220 | 74'10" | 103'0" | 719,666 | 17,280 | 15,574 | 13,825 | 22.81 | 31.39 | 20,379 |
| 29 | 632,688 | 77'6" | 105'8" | 742,513 | 17,829 | 16,069 | 14,264 | 23.62 | 32.2 | 21,026 |
| 30 | 652,156 | 80'2" | 108'4" | 765,361 | 18,377 | 16,563 | 14,703 | 24.43 | 33.01 | 21,673 |
| 31 | 671,624 | 82'10" | 111'0" | 788,208 | 18,926 | 17,058 | 15,142 | 25.25 | 33.82 | 22,320 |
| 32 | 691,092 | 85'6" | 113'8" | 811,056 | 19,475 | 17,552 | 15,581 | 26.06 | 34.64 | 22,967 |
| 33 | 710,560 | 88'2" | 116'4" | 833,903 | 20,023 | 18,047 | 16,020 | 26.87 | 35.45 | 23,614 |
| 34 | 730,028 | 90'10" | 119'0" | 856,750 | 20,572 | 18,541 | 16,459 | 27.69 | 36.26 | 24,260 |
| 35 | 749,497 | 93'6" | 121'8" | 879,598 | 21,121 | 19,036 | 16,898 | 28.5 | 37.08 | 24,907 |
| 36 | 768,965 | 96'2" | 124'4" | 902,445 | 21,669 | 19,530 | 17,337 | 29.31 | 37.89 | 25,554 |
| 37 | 788,433 | 98'10" | 127'0" | 925,293 | 22,218 | 20,024 | 17,776 | 30.12 | 38.7 | 26,201 |
| 38 | 807,901 | 101'6" | 129'8" | 948,141 | 22,767 | 20,518 | 18,215 | 30.93 | 39.51 | 26,848 |
| 39 | 827,369 | 104'2" | 132'4" | 970,989 | 23,316 | 21,012 | 18,654 | 31.74 | 40.33 | 27,495 |
| 40 | 846,837 | 106'10" | 135'0" | 993,837 | 23,865 | 21,506 | 19,093 | 32.55 | 41.14 | 28,142 |
4022 & 4032 - 135' Diameter / 755,968-1,431,788 bu.
| Ring Height | Max. Bu. Capacity No Plenum | Eave Height | Peak Height | Capacity (Cubic Feet) | Metric Tons 800 kg/m3 | Metric Tons 721 kg/m3 | Metric Tons 640 kg/m3 | Eave Height (Meters) | Peak Height (Meters) | Max. Capacity (Cubic Meters) |
|---|---|---|---|---|---|---|---|---|---|---|
| 19 | 755,968 | 50'10" | 86'9" | 887,192 | 21,303 | 19,200 | 17,044 | 15.49 | 26.43 | 25,122 |
| 20 | 788,150 | 53'6" | 89'5" | 924,961 | 22,210 | 20,017 | 17,769 | 16.31 | 27.25 | 26,192 |
| 21 | 820,332 | 56'2" | 92'1" | 962,729 | 23,117 | 20,835 | 18,495 | 17.12 | 28.06 | 27,261 |
| 22 | 852,513 | 58'10" | 94'9" | 1,000,497 | 24,023 | 21,652 | 19,220 | 17.93 | 28.87 | 28,331 |
| 23 | 884,695 | 61'6" | 97'5" | 1,038,265 | 24,930 | 22,469 | 19,946 | 18.75 | 29.68 | 29,400 |
| 24 | 916,877 | 64'2" | 100'1" | 1,076,033 | 25,837 | 23,287 | 20,671 | 19.56 | 30.5 | 30,470 |
| 25 | 949,059 | 66'10" | 102'9" | 1,113,801 | 26,744 | 24,104 | 21,397 | 20.37 | 31.31 | 31,539 |
| 26 | 981,241 | 69'6" | 105'5" | 1,151,570 | 27,651 | 24,921 | 22,122 | 21.18 | 32.12 | 32,609 |
| 27 | 1,013,423 | 72'2" | 108'1" | 1,189,338 | 28,558 | 25,739 | 22,848 | 22 | 32.94 | 33,678 |
| 28 | 1,045,605 | 74'10" | 110'9" | 1,227,106 | 29,465 | 26,556 | 23,574 | 22.81 | 33.75 | 34,748 |
| 29 | 1,077,787 | 77'6" | 113'5" | 1,264,874 | 30,372 | 27,373 | 24,299 | 23.62 | 34.56 | 35,817 |
| 30 | 1,109,969 | 80'2" | 116'1" | 1,302,642 | 31,278 | 28,191 | 25,025 | 24.43 | 35.37 | 36,887 |
| 31 | 1,142,150 | 82'10" | 118'9" | 1,340,411 | 32,185 | 29,008 | 25,750 | 25.25 | 36.19 | 37,956 |
| 32 | 1,174,332 | 85'6" | 121'5" | 1,378,179 | 33,092 | 29,825 | 26,476 | 26.06 | 37 | 39,026 |
| 33 | 1,206,514 | 88'2" | 124'1" | 1,415,947 | 33,999 | 30,643 | 27,201 | 26.87 | 37.81 | 40,095 |
| 34 | 1,238,696 | 90'10" | 126'9" | 1,453,715 | 34,906 | 31,460 | 27,927 | 27.69 | 38.63 | 41,165 |
| 35 | 1,270,878 | 93'6" | 129'5" | 1,491,483 | 35,813 | 32,277 | 28,653 | 28.5 | 39.44 | 42,235 |
| 36 | 1,303,060 | 96'2" | 132'1" | 1,529,251 | 36,720 | 33,094 | 29,379 | 29.31 | 40.25 | 43,305 |
| 37 | 1,335,242 | 98'10" | 134'9" | 1,567,019 | 37,627 | 33,911 | 30,105 | 30.12 | 41.06 | 44,375 |
| 38 | 1,367,424 | 101'6" | 137'5" | 1,604,787 | 38,534 | 34,728 | 30,831 | 30.93 | 41.88 | 45,445 |
| 39 | 1,399,606 | 104'2" | 140'1" | 1,642,555 | 39,441 | 35,545 | 31,557 | 31.74 | 42.69 | 46,515 |
| 40 | 1,431,788 | 106'10" | 142'9" | 1,680,323 | 40,348 | 36,362 | 32,283 | 32.55 | 43.5 | 47,585 |
4022 & 4032 - 156' Diameter / 738,303-1,941,540 bu.
| Ring Height | Max. Bu. Capacity No Plenum | Eave Height | Peak Height | Capacity (Cubic Feet) | Metric Tons 800 kg/m3 | Metric Tons 721 kg/m3 | Metric Tons 640 kg/m3 | Eave Height (Meters) | Peak Height (Meters) | Max. Capacity (Cubic Meters) |
|---|---|---|---|---|---|---|---|---|---|---|
| 12 | 738,303 | 32'2" | 74'3" | 866,461 | 20,805 | 18,751 | 16,645 | 9.8 | 22.64 | 24,541 |
| 13 | 781,275 | 34'10" | 76'11" | 916,893 | 22,016 | 19,843 | 17,614 | 10.62 | 23.45 | 25,969 |
| 14 | 824,248 | 37'6" | 79'7" | 967,325 | 23,227 | 20,934 | 18,583 | 11.43 | 24.27 | 27,397 |
| 15 | 867,221 | 40'2" | 82'3" | 1,017,757 | 24,438 | 22,025 | 19,552 | 12.24 | 25.08 | 28,825 |
| 16 | 910,194 | 42'10" | 84'11" | 1,068,190 | 25,649 | 23,117 | 20,521 | 13.06 | 25.89 | 30,253 |
| 17 | 953,166 | 45'6" | 87'7" | 1,118,622 | 26,860 | 24,208 | 21,489 | 13.87 | 26.70 | 31,681 |
| 18 | 996,139 | 48'2" | 90'3" | 1,169,054 | 28,071 | 25,300 | 22,458 | 14.68 | 27.52 | 33,110 |
| 19 | 1,039,112 | 50'10" | 92'11" | 1,219,486 | 29,282 | 26,391 | 23,427 | 15.49 | 28.33 | 34,538 |
| 20 | 1,082,085 | 53'6" | 95'7" | 1,269,918 | 30,493 | 27,483 | 24,396 | 16.31 | 29.14 | 35,966 |
| 21 | 1,125,058 | 56'2" | 98'3" | 1,320,351 | 31,704 | 28,574 | 25,365 | 17.12 | 29.96 | 37,394 |
| 22 | 1,168,030 | 58'10" | 100'11" | 1,370,783 | 32,915 | 29,665 | 26,334 | 17.93 | 30.77 | 38,822 |
| 23 | 1,211,003 | 61'6" | 103'7" | 1,421,215 | 34,126 | 30,757 | 27,303 | 18.75 | 31.58 | 40,250 |
| 24 | 1,253,976 | 64'2" | 106'3" | 1,471,647 | 35,337 | 31,848 | 28,271 | 19.56 | 32.39 | 41,678 |
| 25 | 1,296,949 | 66'10" | 108'11" | 1,522,079 | 36,547 | 32,940 | 29,240 | 20.37 | 33.21 | 43,106 |
| 26 | 1,339,921 | 69'6" | 111'7" | 1,572,512 | 37,758 | 34,031 | 30,209 | 21.18 | 34.02 | 44,534 |
| 27 | 1,382,894 | 72'2" | 114'3" | 1,622,944 | 38,969 | 35,122 | 31,178 | 22 | 34.83 | 45,962 |
| 28 | 1,425,867 | 74'10" | 116'11" | 1,673,376 | 40,180 | 36,214 | 32,147 | 22.81 | 35.65 | 47,390 |
| 29 | 1,468,840 | 77'6" | 119'7" | 1,723,808 | 41,391 | 37,305 | 33,116 | 23.62 | 36.46 | 48,818 |
| 30 | 1,511,812 | 80'2" | 122'3" | 1,774,240 | 42,602 | 38,397 | 34,084 | 24.43 | 37.27 | 50,247 |
| 31 | 1,554,785 | 82'10" | 124'11" | 1,824,672 | 43,813 | 39,488 | 35,053 | 25.25 | 38.08 | 51,675 |
| 32 | 1,597,758 | 85'6" | 127'7" | 1,875,105 | 45,024 | 40,579 | 36,022 | 26.06 | 38.90 | 53,103 |
| 33 | 1,640,731 | 88'2" | 130'3" | 1,925,537 | 46,235 | 41,671 | 36,991 | 26.87 | 39.71 | 54,531 |
| 34 | 1,683,703 | 90'10" | 132'11" | 1,975,969 | 47,446 | 42,762 | 37,960 | 27.69 | 40.52 | 55,959 |
| 35 | 1,726,676 | 93'6" | 135'7" | 2,026,401 | 48,657 | 43,854 | 38,929 | 28.5 | 41.34 | 57,387 |
| 36 | 1,769,649 | 96'2" | 138'3" | 2,076,833 | 49,868 | 44,945 | 39,897 | 29.31 | 42.15 | 58,815 |
| 37 | 1,812,622 | 98'10" | 140'11" | 2,127,266 | 51,079 | 46,037 | 40,866 | 30.12 | 42.96 | 60,243 |
| 38 | 1,855,595 | 101'6 | 143'7" | 2,177,698 | 52,290 | 47,128 | 41,835 | 30.93 | 43.77 | 61,671 |
| 39 | 1,898,567 | 104'2" | 146'3" | 2,228,130 | 53,501 | 48,219 | 42,804 | 31.74 | 44.59 | 63,099 |
| 40 | 1,941,540 | 106'10" | 148'11" | 2,278,562 | 54,712 | 49,311 | 43,773 | 32.55 | 45.40 | 64,527 |
All bins are designed for the storage of grain and other free-flowing materials weighing up to 52 lbs. per cubic foot.
Max. cubic feet and cubic meters based on 28° angle of repose.
Max. bushels and metric tons based on 28 degree angle of repose and 6% compaction factor.
Peak heights shown for 30 degree slope roofs.
Typical grain densities are as follows:
- Wheat approximately 800 kg/m^3 (50 lb/ft^3)
- Corn approximately 721 kg/m^3 (45 lb/ft^3)
- Rice approximately 640 kg/m^3 (40 lb/ft^3).
Other rings heights available in some diameters, contact your dealer for details.
