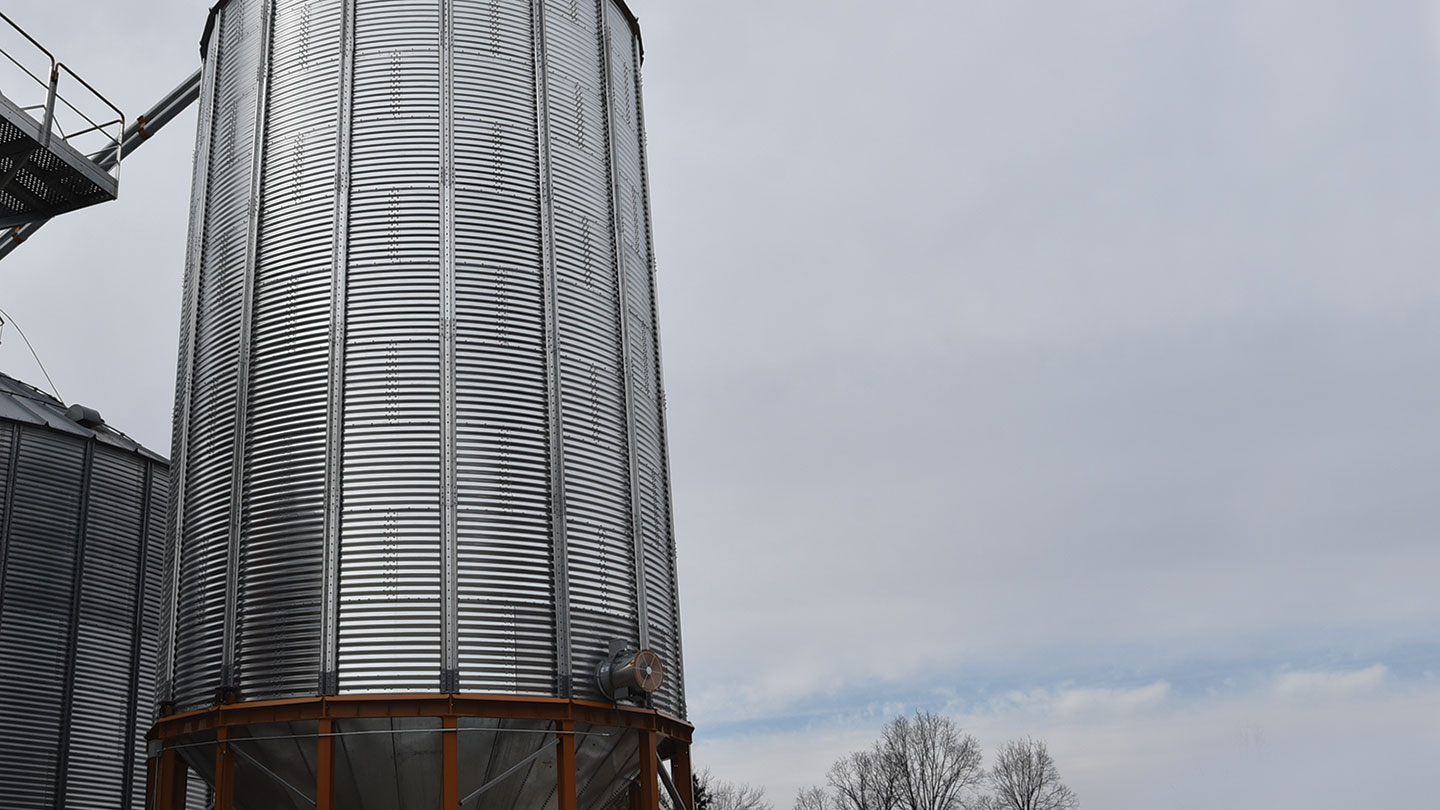

GSI FCHTC Hopper Tanks

Highlights

Commercial-strength stiffened sidewall and 4” corrugation.
Includes EVO-50’s exclusive staggered bolt pattern.
Designed smarter to improve sealing and keep water out.
Expanded sizes, maximized clearance and easier access to equipment.
Standard 42” of clearance under the hopper for easier installation of material handling equipment. Optional extended legs are available for 14” of additional clearance.

Specifications

Substructure and Hopper

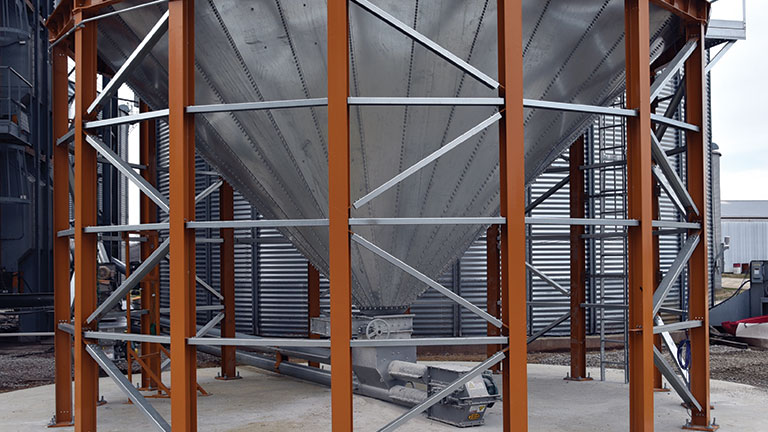

K-Bracing system, along with two open sections, allows for more open area underneath the hopper for improved access to the discharge, as well as more room for larger material handling equipment.

45 degree hoppers are available, and feature a staggered bolt pattern in panels for superior strength.

Easier Clean-out

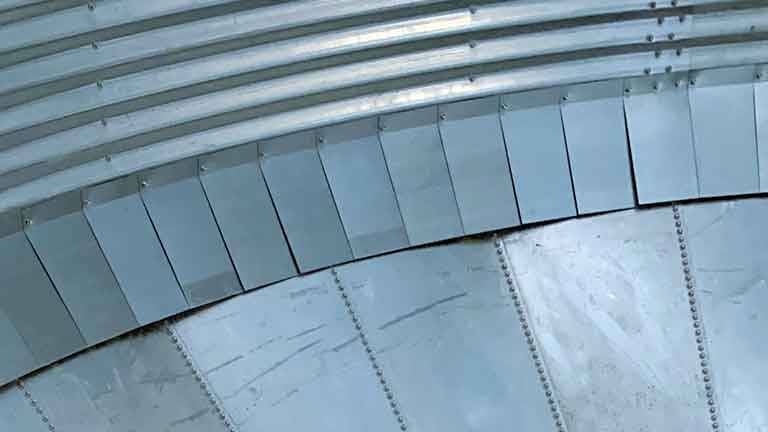

Optional hopper flashing is available to improve clean-out.

Better Access

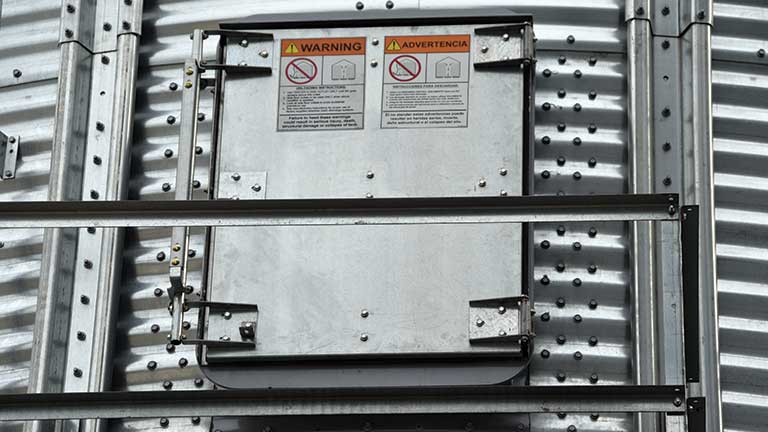

A new 24”x36” sidewall door improves access and is ASABE bin entry standard compliant. An all new hold-back is used in conjunction with the door handle for ease of use.

Bushel Capacity

Rings	12'	15'	18'	21'	24'
3	1317	2145	3247	4637	6340
4	1666	2691	4033	5707	7738
5	2016	3237	4819	6778	9135
6	2365	3783	5605	7848	10533
7	2715	4329	6391	8919	11931
8	3064	4875	7178	9988	13329
9	3414	5421	7964	11058	14726
10	3763	5967	8750	12128	16124
11	4113	6513
12	4462	7059
13	4811	7605

Capacities calculated with a 28° angle of repose.

Eave Height

Rings	12'	15'	18'	21'	24'
3	19’6”	21’1”	22’7”	24’1”	25’6”
4	23’2”	24’9”	26’3”	27’9”	29’2”
5	26’10”	28.5”	29’11”	31’5”	32’10”
6	30’6”	32’1”	33’7”	35’1”	36’6”
7	34’2”	35’9”	37’3”	38’9”	40’2”
8	37’10”	39’5”	40’11”	42’5”	43’10”
9	41’6”	43’1”	44’7”	46’1”	47’6”
10	45’2”	46’9”	48’3”	49’9”	51’2”
11	48’10”	50’5”
12	52’6”	54’1”
13	56’2”	57’9”

Peak Height

Rings	12'	15'	18'	21'	24'
3	23’	25’3”	27’8”	30’1”	32’4”
4	26’8”	28’11”	31’4”	33’9”	36’
5	30’4”	32’7”	35’	37’5”	39’8”
6	34’	36’3”	38’8”	41’1”	43’4”
7	37’8”	39’11”	42’4”	44’9”	47’
8	41’4”	43’7”	46’	48’5”	50’8”
9	45’	47’3”	49’8”	52’1”	54’4”
10	48’8”	50’11”	53’4”	55’5”	58’
11	52’4”	54’7”
12	56’	58’3”
13	59’8”	61’11”

FCHTC Hopper Tanks

Engineered Stronger
