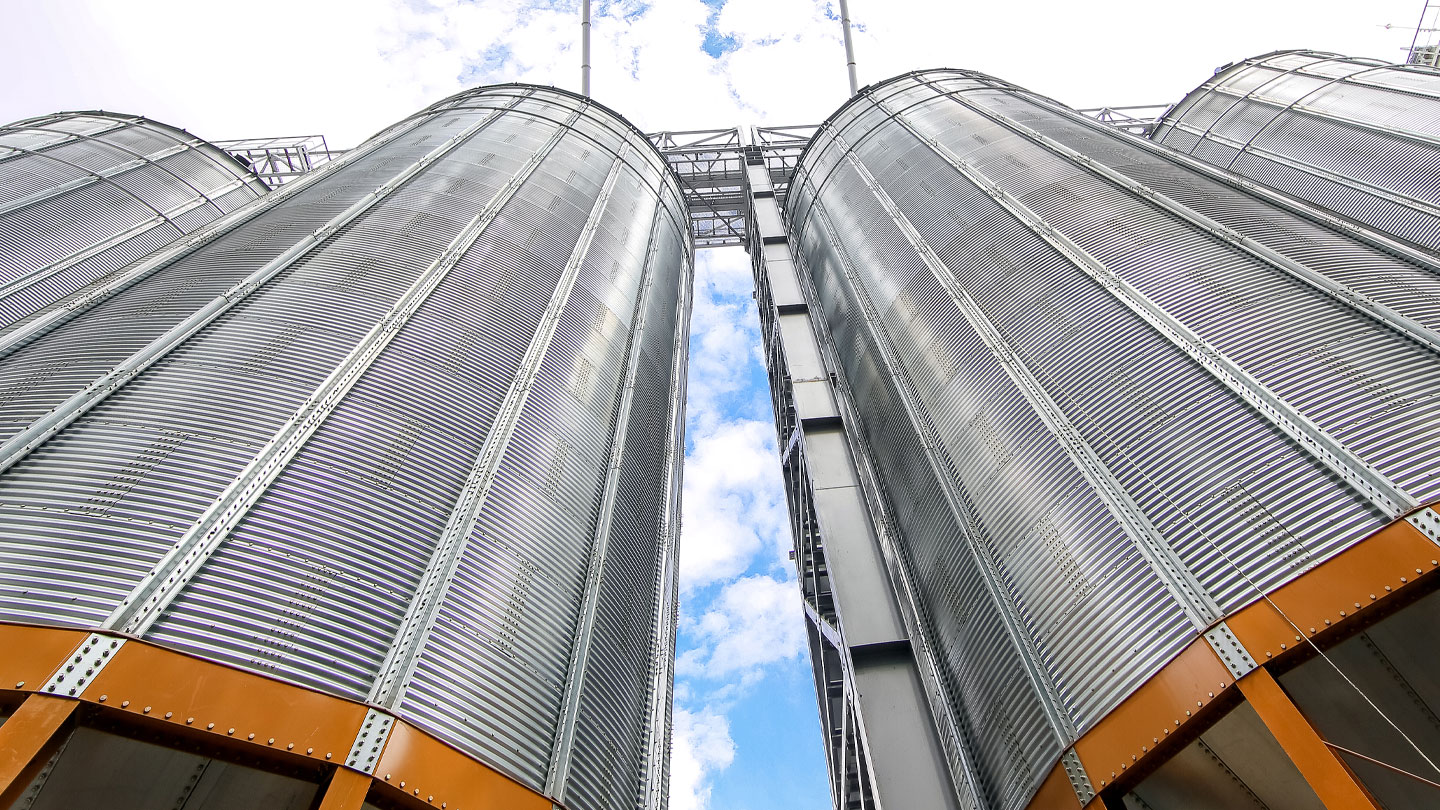

NCHT

Heavy-duty hopper tank

NCHT

NCHT

Heavy-duty hopper tank

Highlights

  • Capacities up to 57,603 bushels (1464 mt).
  • Diameters from 12'-36' (3.66-10.97 m)
  • Featuring a stiffened sidewall and 2.66” corrugation.
  • Available with a 40⁰, 45⁰, or 60⁰ hopper.
  • Designed to handle routine cleanout.

Built to Perform

Grain Bin Roof

PROTECT YOUR INVESTMENT

Grain Bin Roof

Our grain bin roof features a 3” (76.2 mm) tall rib with over and under lap profiles ensures a precise fit. Three bend rib profiles are also incorporated in the new design for increased strength to stand up even in the harshest environments.

FCHT Sub Structure

Wide Flange I-Beam Sub Structure

Wide flange I-Beam sub structure has the strength and durability to support the heavy loads of hopper tanks year after year. Our sub structure is customizable to meet your specific clearance needs and can be designed to your wind and seismic requirements.

Stiffeners

Fully Stiffened Bin Design

Stiffeners on the sidewall provide increased strength and durability to stand up to the demands of frequent usage.

Flashing Kit

Optional

Flashing Kit

An optional flashing kit allows for a smooth transition for grain from the sidewall of the bin to the hopper, preventing material hang-ups during unloading.

Specifications

Diameter Ring Heights Hopper Angle Max. Capacity (bu.) Max. Capacity (cu. ft.) Max. Capacity (metric tons)
12' (3.66 m) 6-16 45 degrees 4,335 5,395 110
15' (4.57 m) 3-18 45, 60 degrees 7,890 9,819 200
18' (5.49 m) 5-19 45, 60 degrees
12,167 15,142 309
21' (6.40 m) 6-20 45, 60 degrees
17,664 21,983 449
24' (7.32 m) 5-22 45 degrees 24,510 30,503 623
27' (8.23 m) 6-20 40, 45 degrees 28,748 35,777 730
30' (9.14 m) 6-20 40, 45 degrees 35,958 44,749 914
36' (10.97 m) 6-22 40, 45 degrees 57,603 71,686 1464

Cubic Meters based on 28 degree angle of repose.

All commercial bins are designed for the storage of grain and other free-flowing materials weighing up to 52 lbs. per cubic foot. Maximum bushel capacity based on 6% compaction. Maximum storage capacities reflect grain peaked on center, using an angle of repose of 28 degrees.

Other ring heights available in some diameters. Peak heights shown for 30 degree slope roofs.

Typical Grain Densities: Corn approximately 721 kg/m^3 (45 lb/ft^3); Wheat approximately 800 kg/m^3 (50 lb/ft^3); Rice approximately 640 kg/m^3 (40 lb/ft^3)
