GSI Select Enclosed Belt Conveyors

Custom without Compromise

GSI has the perfect belt conveyor to fit your operation, easily customizable for your project.
Precisely crafted with the highest quality materials and components to deliver performance you can count on.
Ideal for long length runs.
A clean, efficient, and gentle way to move grain.
Requires less energy and lower maintenance than other conveyor types.

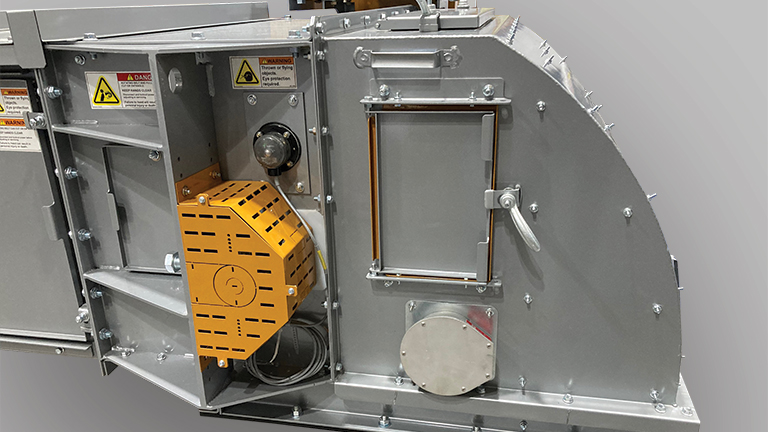

Dodge® Imperial pillow block bearings standard on all sizes, supplied with full-coverage safety guarding
7 ga. reinforced steel housing with 12 ga. removable lined hood
Lagging inspection doors on both sides of the head allow service of lagging without breaking the belt
16”, 24”, 30” and 36” pulley diameters available, secured with XT tapered bushings
Holz Slide-Lag® static conductive lagging on head pulleys for superior belt grip, long-life, and easy service Shafting of 1045 turned ground and polished steel
Low profile style construction, and 2-way valve equipped heads optional

External vertically mounted Dodge® pillow block ball bearings with safety caps standard
Anti-static UHMW bottom liners, 1/4″ thick, bolted in slots to allow for thermal expansion

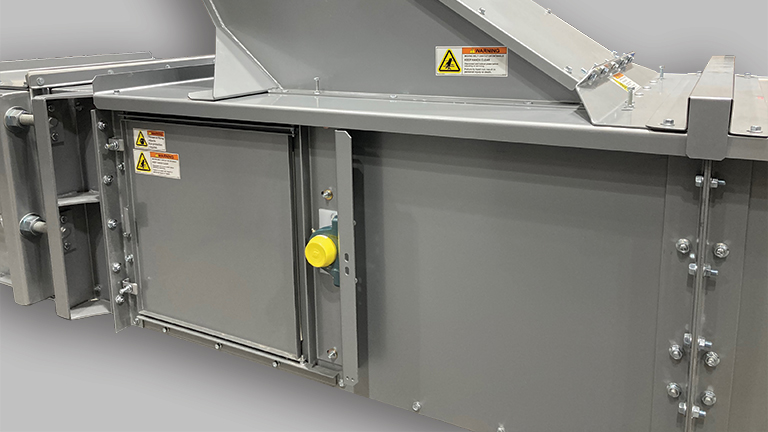

10′ intermediate sections with 5′ clamp-on covers
45˚ idler rollers placed every 5′
12 ga. housing, with 7 ga. reinforcing vertical channels at the bearings
Inspection doors at intermediate section next to head and tail section
Optional 1/2″ UHMW bottom liner
Optional heavy-duty idlers
Optional side service doors for roller removal

Dodge® Imperial pillow block bearings standard on all sizes, supplied with full-coverage safety guarding

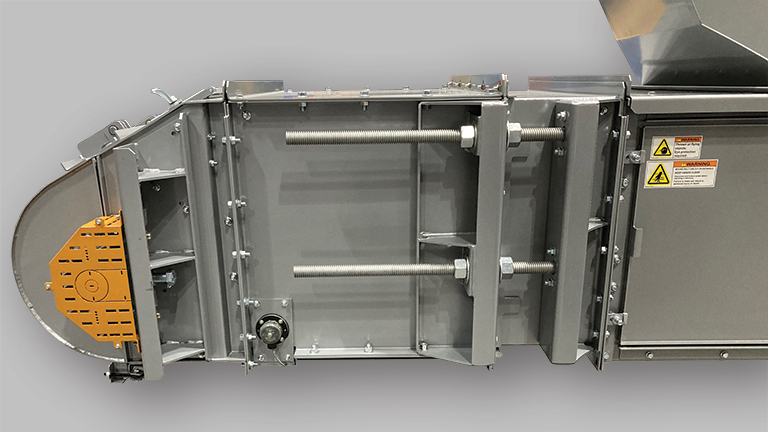

14″ spiral wing type pulley with reloading rubber flippers at each end
Plow assembly between belts to move spilled material to side reloaders. Adjustable with replaceable skirting
18″, 24″, 36″ and 48″ manual take-up with acme threads on take-up screws
Shafting of 1045 turned ground and polished steel
3/16″ thick take-up housing
Swing-up tail shroud for easy, safe access to pulley

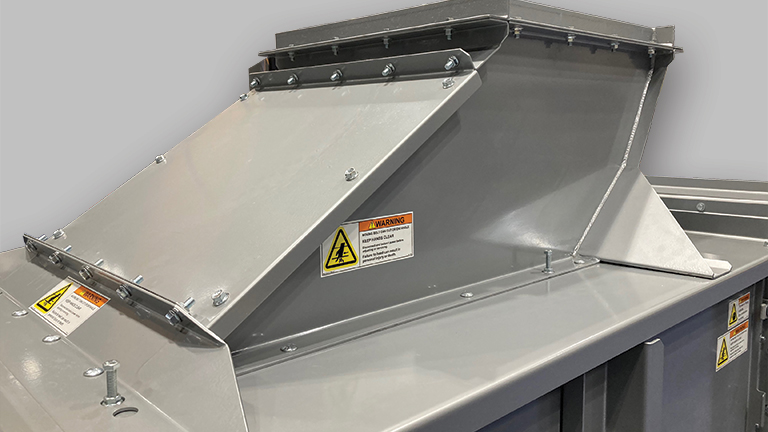

Urethane lined loader (sides and rear), skirted, with matching spout angle frame
Pivoting UHMW skirts with stops on the conveyor with multiple inlets
Inspection door at the front of the loader
Flexco splice, 140EE, belt pre-punched at both ends
SOR-SC-FR rubber belting with tail reloading rubber flippers at splice
Optional ceramic tile liners

Click — to collapse sections.

* Capacities calculated with material surcharge angle of 13˚, lower surcharge angle materials will see reduced capacities.

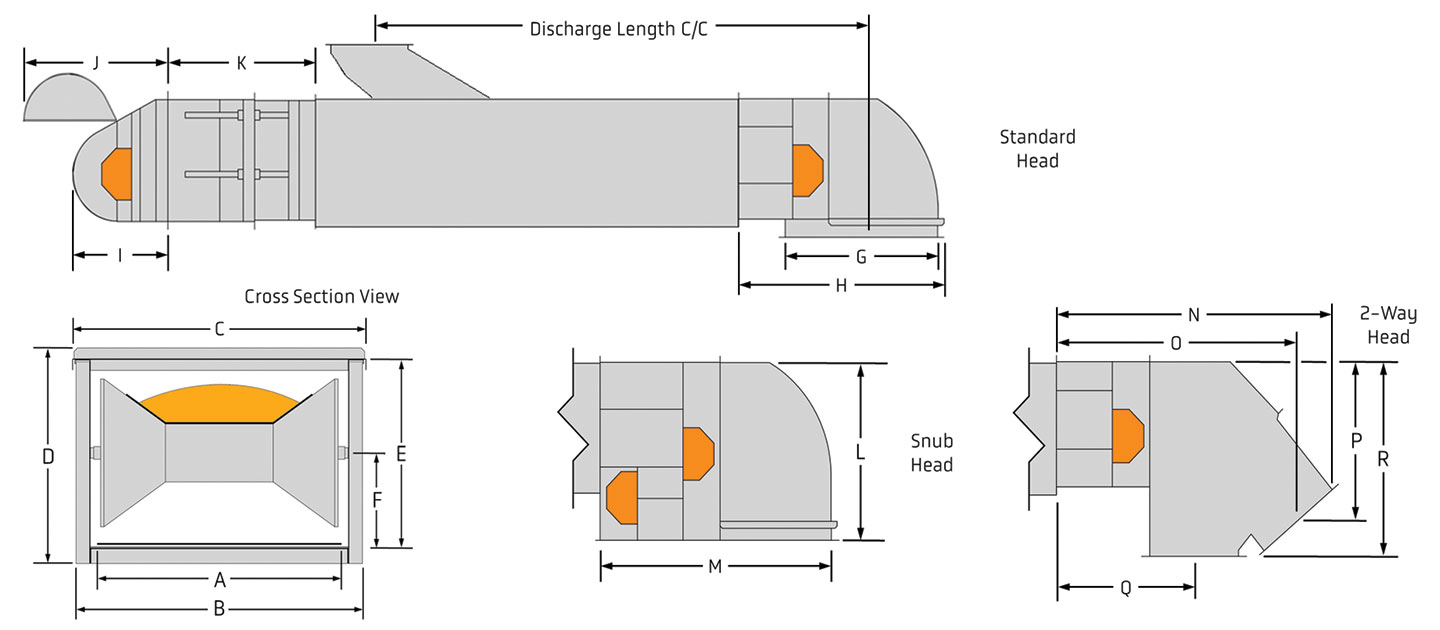

	Belt Width	Box Width	Overall Width	Overall Height	Box Height	Idler Height	Discharge Length	Std. Head Length	Tail Length
Size	A	B	C	D	E	F	G	H	I
24″	24	31	32	29.625	26	13.5	36	49	23
30″	30	37	38	29.625	26	13.5	36	49	23
36″	36	43	44	29.625	26	13.5	36	49	23
42″	42	49	50	29.625	26	13.5	36	49	23
48″	48	55	56	29.625	26	13.5	36	49	23
54″	54	61	62	29.625	26	13.5	36	49	23
